38170 - Toro CCR Powerlite Snow Thrower (SN: 010000001 - 019999999) (1991) CHUTE ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

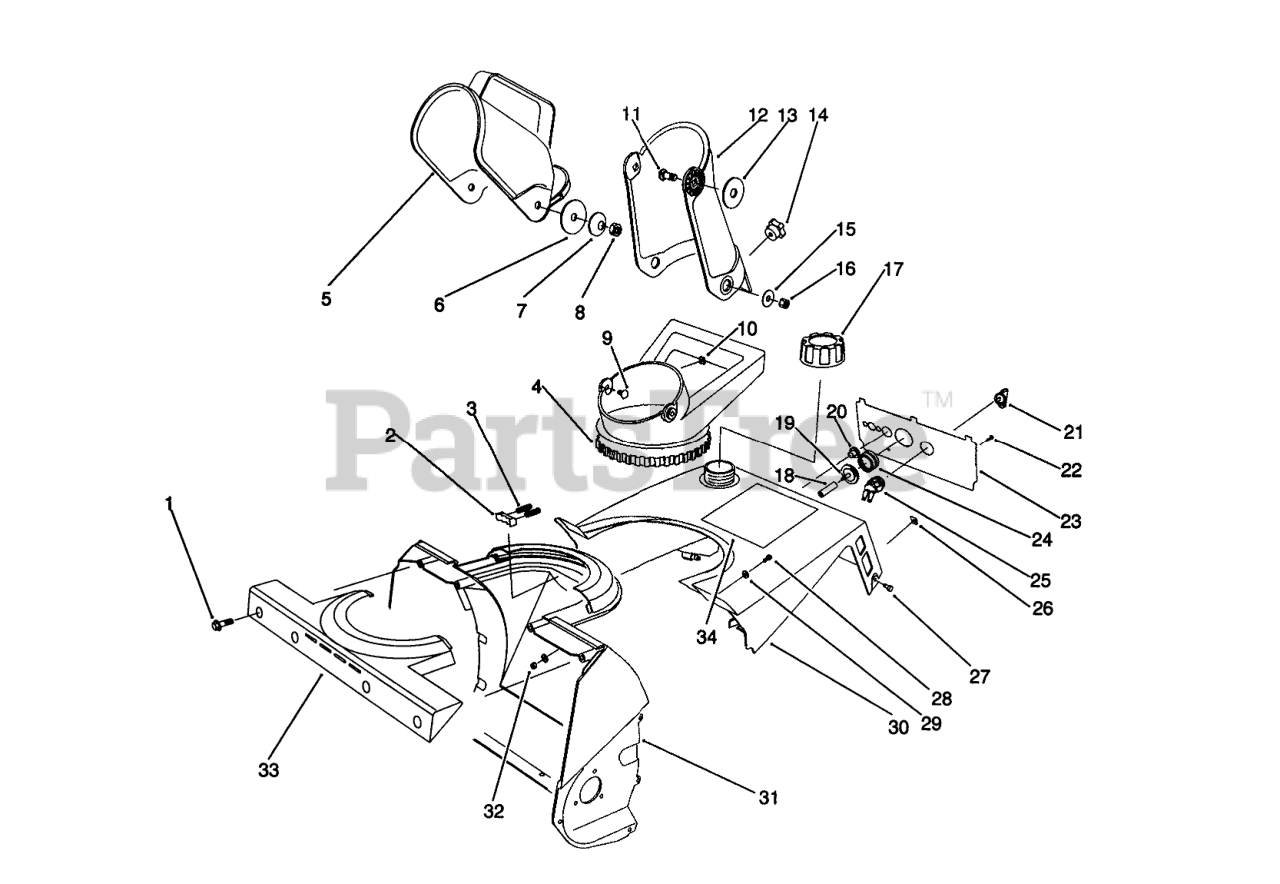

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

2

Toro 75-9160

DETENT-CHUTE

$6.99

$

In Stock, Qty 8

0

3

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

4

Toro 75-8670

HANDLE-CHUTE

$46.99

$

Usually ships in 3-6 days

0

5

Toro 75-8770

DEFLECTOR-CHUTE

$31.99

$

Usually ships in 3-6 days

0

6

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

9

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Toro 75-8760

Chute
(Superseded to 115-5659)

$58.99

$

Usually ships in 3-6 days

0

13

Toro 80-0640

Washer-Rubber
(Superseded to 95-1905)

$2.99

$

In Stock, Qty 8

0

14

Toro 233-67

KNOB-CHUTE

$8.99

$

In Stock, Qty 8

0

15

Toro 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

16

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

17

Toro 55-3578

GAS CAP ASSEMBLY

$

$

Not available

18

Toro 44-3173

HOSE-PRIMER

$4.99

$

In Stock, only 1 left!

0

19

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

20

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

21

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

22

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

23

Toro 75-9140

CNTRL PNL/SILK SCRN

$

$

Not available

Toro 75-9150

Panel-Control (Model No. 38175 Only)

$

$

Not available

24

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

25

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

26

Toro 49-1490

NUT

$3.99

$

In Stock, only 2 left!

0

27

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

In Stock, Qty 6

0

28

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 75-8800

Shroud-Upper
(Superseded to 105-2994)

$164.99

$

In Stock, only 2 left!

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 75-8650

RETAINER-CHUTE

$54.99

$

Usually ships in 3-6 days

0

34

Toro 80-0680

DECAL - POWERLITE REC.

$

$

Not available

Toro 80-0690

DECAL - POWERLITE EL.

$18.99

$

Usually ships in 3-6 days

0
