38165 (S-620) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

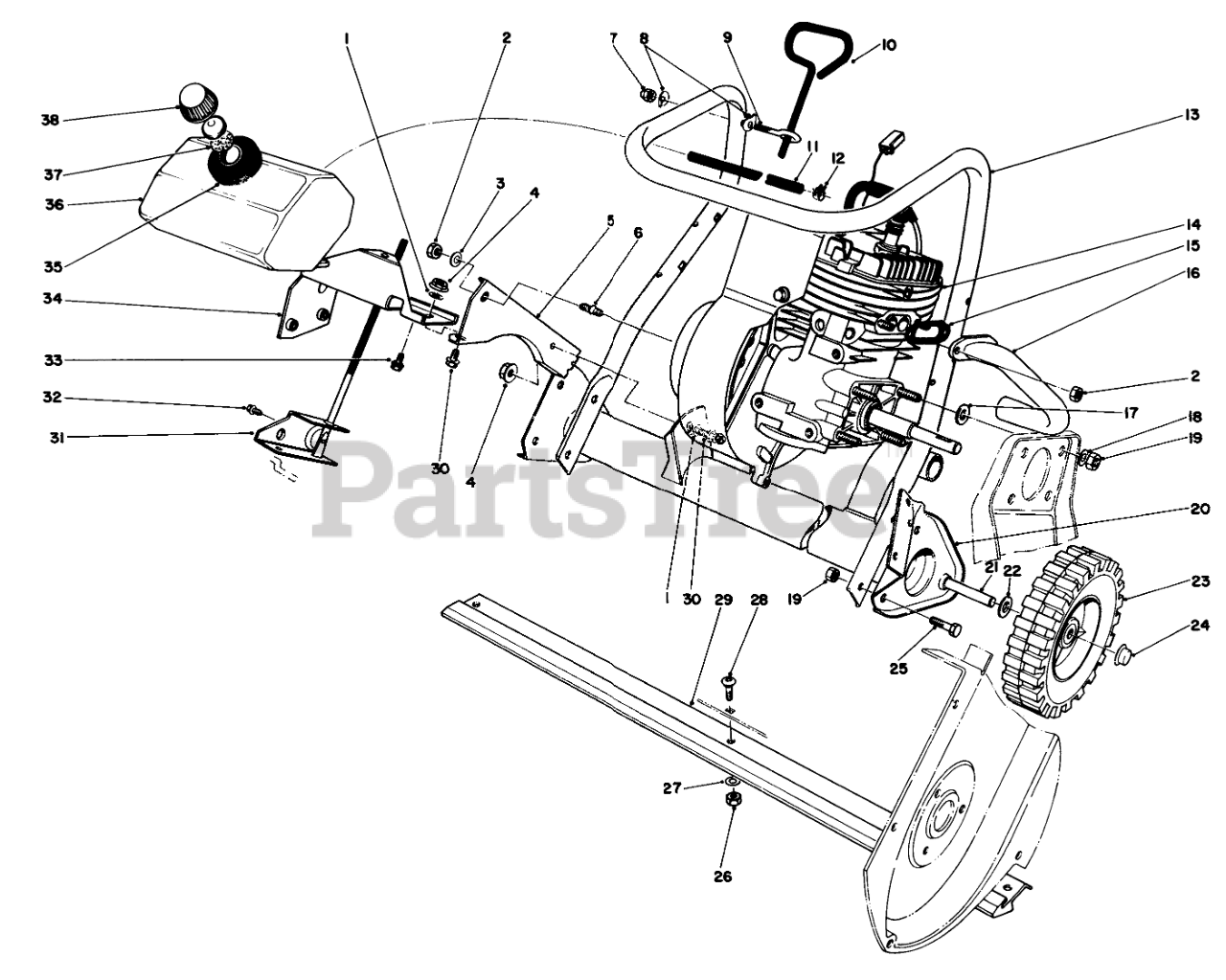

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

2

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

3

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

5

Toro 49-1570

ENGINE SUPPORT

$

$

Not available

6

$

$

Not available

7

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

8

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

9

Toro 52-7120

EYEBOLT

$

$

Not available

10

Toro 49-1600

ADJ ROD ASM

$

$

Not available

11

Toro 49-2480

GasLine
(Superseded to 49-2481)

$7.99

$

In Stock, only 2 left!

0

12

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

13

Toro 49-1390

HANDLE-LOWER

$129.99

$

Usually ships in 3-6 days

0

14

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

15

Toro 23-3810

EXHAUST GASKET

$

$

Not available

16

Toro 52-7200

EXHAUST PIPE

$

$

Not available

17

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 49-1540

MUFFLER ASSEMBLY

$385.99

$

Usually ships in 3-6 days

0

21

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

23

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

24

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

26

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

29

Toro 23-3170

SCRAPER

$31.99

$

In Stock, Qty 9

0

30

Toro 3234-23

5/16-18X.62 WHIZLOK SCR
(Superseded to 3234-14)

$1.99

$

In Stock, Qty 20+

0

31

Toro 39-0840

VANE ADJ BRKT

$

$

Not available

32

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

33

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

34

Toro 49-1550

Support-Gas Tank

$

$

Not available

35

Toro 25-1610

FOAM PAD

$

$

Not available

36

Toro 39-8670

GAS TANK

$

$

Not available

37

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

38

Toro 42-0680

Gas Cap (Incl. Ref. #36)

$

$

Not available
