38165 (S-620) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1622-M Parts Diagram

Snow Thrower

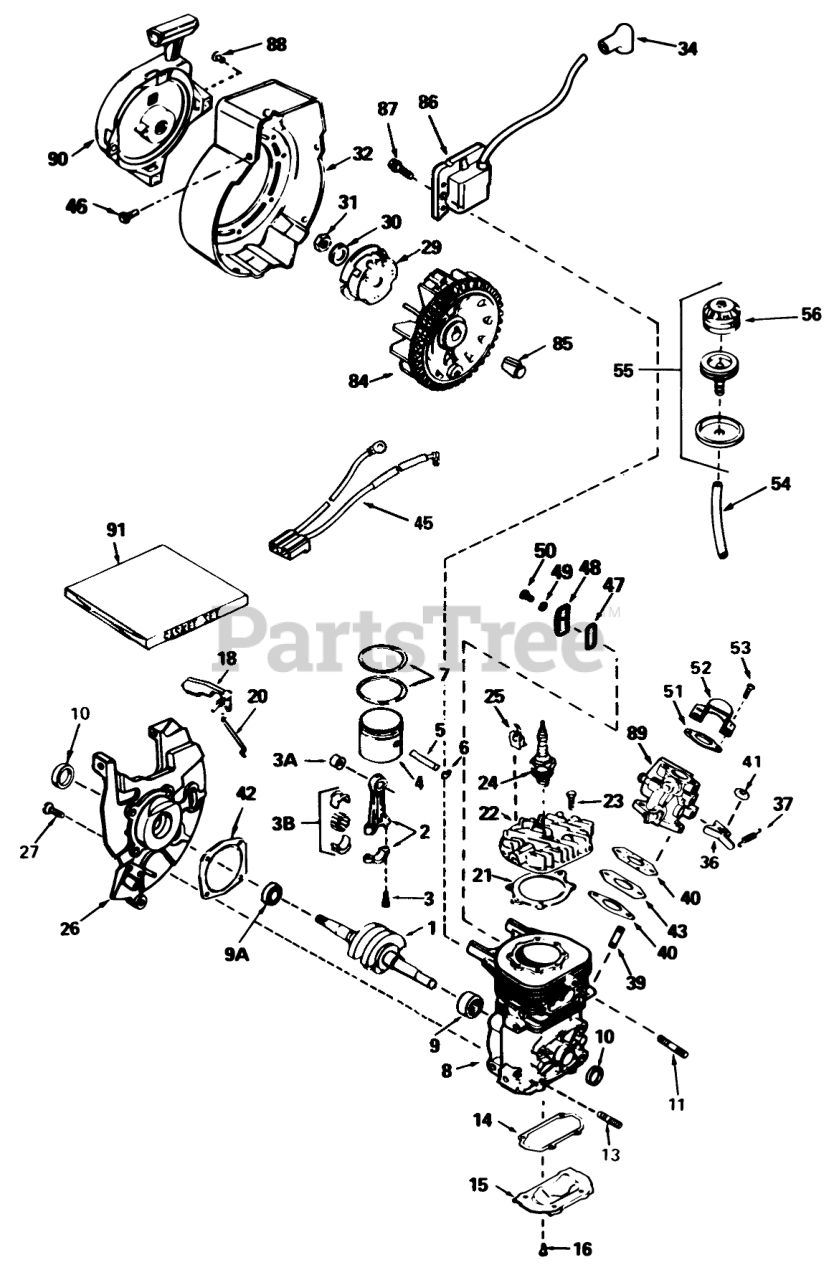

ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1622-M Parts Diagram

  • Title

1

Tecumseh 290571

Crankshaft
(Superseded to 290607)

$

$

Not available

2

Tecumseh 310235B

Rod Assy.-Connecting (Incl. Ref. #3, 3A & 3B)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530150

Needle Bearing and Liner Set (37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310269

Piston
(Superseded to 310283A)

$33.99

$

In Stock, only 1 left!

0

5

Tecumseh 310264

Pin-Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Block Assy.-Cylinder (Order short block if replacement is required.)

$

$

Not available

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 8

0

11

Tecumseh 650801

Stud

$1.99

$

In Stock, only 3 left!

0

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510323

Cover
(Superseded to 510323A)

$6.99

$

In Stock, only 2 left!

0

15

Tecumseh 570644

Plate-Cover

$7.49

$

In Stock, only 1 left!

0

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 490291A

Vane-Air

$3.99

$

In Stock, Qty 5

0

20

Tecumseh 490294

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

25

Tecumseh 611034

Clip
(Superseded to 29443)

$1.99

$

In Stock, Qty 5

0

26

Tecumseh 350396

Base Assy.-Blower Housing (Incl. Ref. #10)

$

$

Not available

27

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

29

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350397

Housing-Blower

$

$

Not available

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

36

Tecumseh 570645

Lever-Adjusting, Rpm

$

$

Not available

37

Tecumseh 570646

Spring-Governor

$1.99

$

In Stock, Qty 5

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510326

Gasket-Carburetor
(Superseded to 510326A)

$1.49

$

In Stock, only 3 left!

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 1 left!

0

42

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

45

Tecumseh 611065

Harness-Wire

$

$

Currently unavailable

46

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 510325

Gasket-Cover
(Superseded to 510325A)

$1.99

$

In Stock, Qty 5

0

48

Tecumseh 570647

Comp. Release Cover

$5.49

$

Usually ships in 3-12 days

0

49

Tecumseh 650838

Washer

$

$

Not available

50

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

51

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

52

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

53

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

54

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

55

Tecumseh 570629A

Primer Assy.
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

56

Tecumseh 570442A

Bulb-Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

84

Tecumseh 611046A

Flywheel

$94.99

$

Usually ships in 3-12 days

0

85

Tecumseh 611032

Blade (20 inch)

$8.49

$

Usually ships in 3-12 days

0

86

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

88

Rivet-Pop (3/16" Dia.)(Can be purchased locally)

$

$

Not available

89

Tecumseh 632142A

Carburetor (Incl. Ref. #40)
(Superseded to 632142B)

$

$

Not available

90

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

91

Tecumseh 510324A

Gasket Set
(Superseded to 510324B)

$9.49

$

In Stock, Qty 10

0
