38165 (S-620) - Toro Snow Thrower (SN: 005000001 - 005010000) (1985) LOWER MAIN FRAME ASSEMBLY Parts Diagram

Snow Thrower

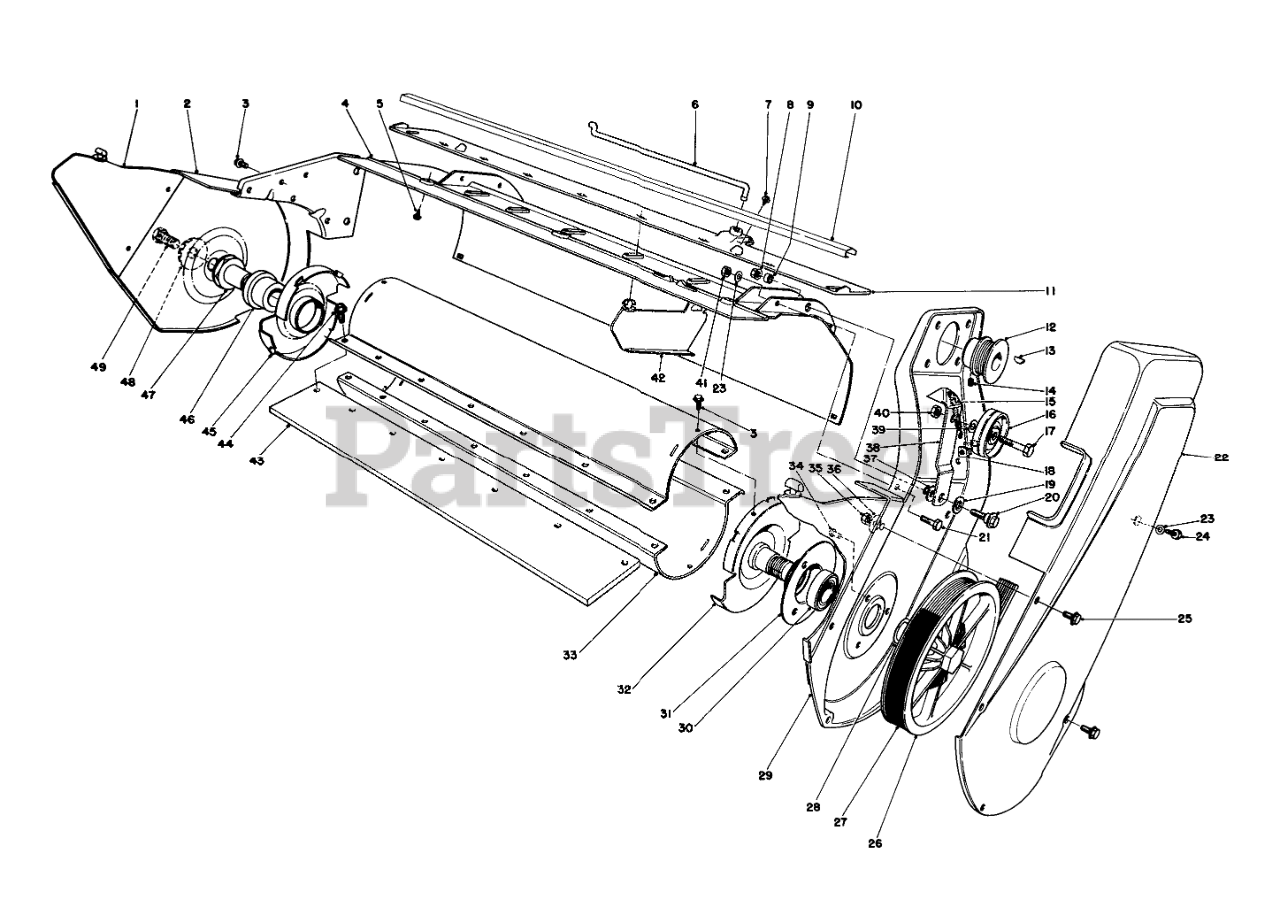

LOWER MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 52-7080

OUTSIDE VANE

$8.99

$

In Stock, Qty 7

0

2

Toro 39-1060

Side Plate Right

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 41-8510

Housing
(Superseded to 52-7170)

$

$

Not available

5

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0

6

Toro 52-7090

VANE ADJ LINKAGE

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

9

Toro 51-2950

SPACER

$

$

Not available

10

Toro 42-1650

Molding
(Superseded to 13-1689)

$

$

Not available

11

Toro 41-8480

Mount-Vane
(Superseded to 13-1689)

$

$

Not available

12

Toro 25-6400

Pulley

$

$

Not available

13

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

14

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

15

Toro 26-9730

IDLER SPRING

$23.99

$

Usually ships in 3-6 days

0

16

Toro 25-5880

IDLER PULLEY

$

$

Not available

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

19

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

20

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 41-8180

Drive Cover
(Superseded to 16-1349)

$63.99

$

In Stock, only 1 left!

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3235-20

SCREW-HEX HD

$4.49

$

In Stock, Qty 5

0

25

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

26

Toro 49-1530

PULLEY ASM ROTOR

$

$

Not available

27

Toro 25-6430

BELT - DRIVE

$29.99

$

In Stock, only 3 left!

0

28

Toro 26-0970

WASHER

$11.99

$

Usually ships in 3-6 days

0

29

Toro 33-2130

Plate-L.H. Side
(Superseded to 33-2130-03)

$

$

Not available

30

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

31

Toro 38-8620

FLANGE-BEARING

$

$

Not available

32

Toro 41-8150

Drive Shaft & End Cap
(Superseded to 41-8150-03)

$107.99

$

Usually ships in 3-6 days

0

33

Toro 23-3190

ROTOR SHELL

$

$

Not available

34

Toro 3292-8

RIVET

$

$

Not available

35

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

37

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

38

Toro 26-8990

IDLER ARM

$204.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

41

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

42

Toro 52-7060

CENTER VANE

$10.99

$

In Stock, Qty 20+

0

43

Toro 23-3730

ROTOR BLADE

$32.99

$

In Stock, only 2 left!

0

44

Toro 37-0370

Screw
(Superseded to 32144-9)

$5.49

$

In Stock, only 2 left!

0

45

Toro 39-1070

End Cap Assembly-R.H. (Incl. Ref. #46)

$

$

Not available

46

Toro 39-0790

ROTOR BUSHING

$49.99

$

Usually ships in 3-6 days

0

47

Toro 39-0830

ROTOR SHAFT

$

$

Not available

48

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

49

Toro 323-41

SCREW-HH

$1.99

$

In Stock, Qty 14

0
