38162 (S-620) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1623-P Parts Diagram

Snow Thrower

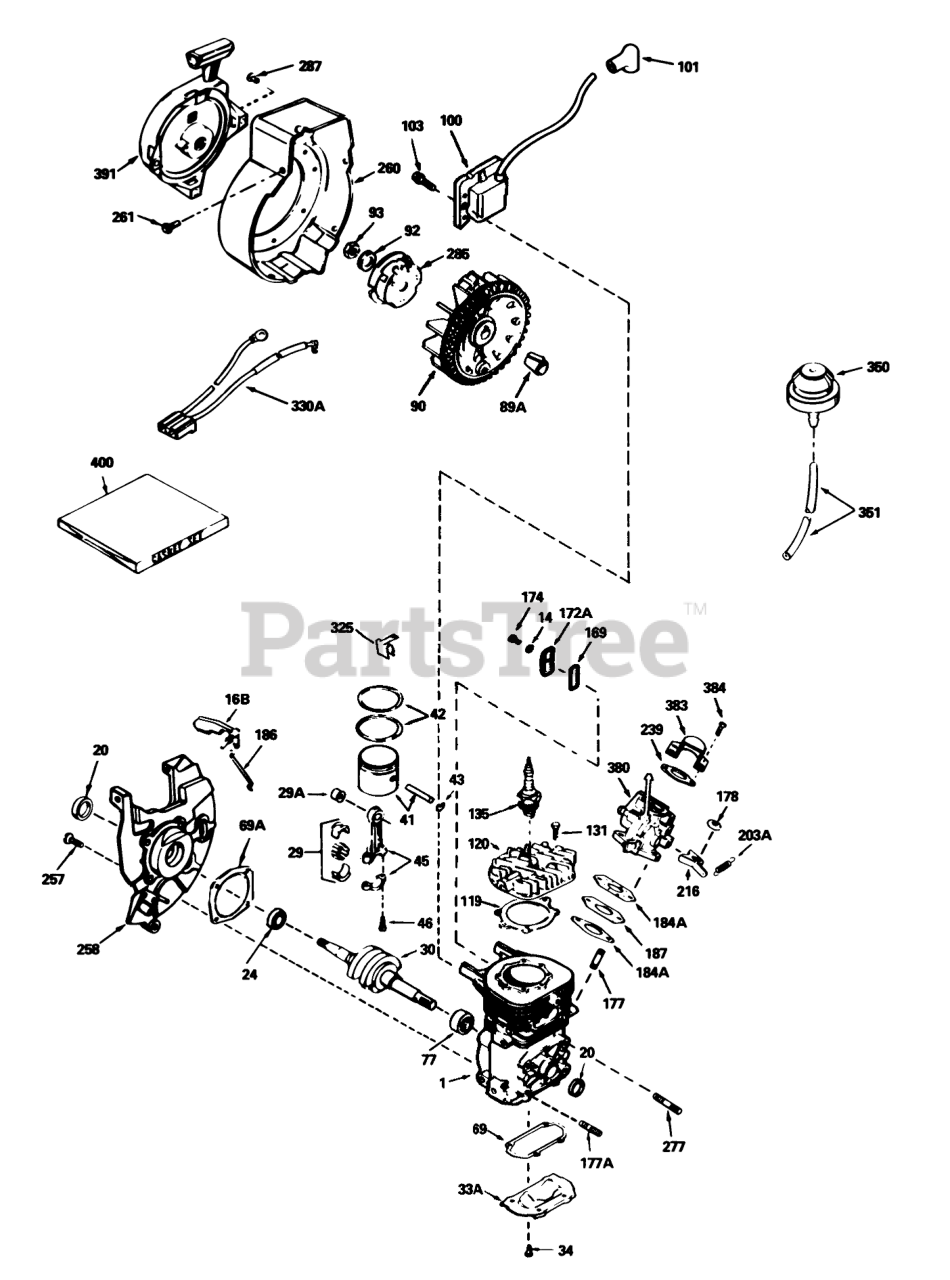

ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1623-P Parts Diagram

  • Title

1

Cylinder Block Assembly (Order Shot Block)

$

$

Not available

14

Tecumseh 650838

Washer

$

$

Not available

16B

Tecumseh 490291A

Vane-Air

$3.99

$

In Stock, Qty 5

0

20

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 8

0

24

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

29

Tecumseh 530150

Bearing & Liner Set (Incl. 37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

29A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290607

Crankshaft

$

$

Not available

33A

Tecumseh 570644

Plate-Cover

$7.49

$

In Stock, only 1 left!

0

34

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

41

Tecumseh 310283A

Piston (Incl. Ref. #43)

$33.99

$

In Stock, only 1 left!

0

42

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

43

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 310235B

Connecting Rod Assembly (Incl. Ref. #29, 29A, & 46)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

46

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

69

Toro 2510323A

Gasket-Cover

$

$

Currently unavailable

69A

Tecumseh 510292A

Gasket-Cover, Cylinder

$3.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

89A

Tecumseh 611032

Blade (20 inch)

$8.49

$

Usually ships in 3-12 days

0

90

Tecumseh 611050

Flywheel

$64.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

100

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

103

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 510274A

Gasket-Head, Cylinder

$1.99

$

In Stock, Qty 6

0

120

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

131

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

135

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

169

Tecumseh 510325A

Cover-Compression, Release

$1.99

$

In Stock, Qty 5

0

172A

Tecumseh 570647

Comp. Release Cover

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

177

Tecumseh 650527

Stud

$

$

Not available

177A

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

178

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 1 left!

0

184A

Tecumseh 510326A

Gasket-Carburetor

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490294

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

187

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

203A

Tecumseh 570646

Spring-Governor

$1.99

$

In Stock, Qty 5

0

216

Tecumseh 570645

Lever-Adjusting, Rpm

$

$

Not available

239

Tecumseh 35815

Gasket-Cleaner, Air

$1.49

$

In Stock, Qty 20+

0

257

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

258

Tecumseh 350421

Base Assembly (Incl. Ref. #20)

$

$

Currently unavailable

260

Tecumseh 350399

Housing-Blower

$

$

Not available

261

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

277

Tecumseh 650883

Stud

$

$

Not available

285

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

287

Rivet-Pop

$

$

Not available

325

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

330A

Tecumseh 611131A

Harness-Wire

$

$

Not available

350

Tecumseh 570629A

Primer Assy.
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

380

Tecumseh 632142A

Carburetor Assembly (Incl. Ref. #184A)
(Superseded to 632142B)

$

$

Not available

383

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

384

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

391

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

400

Tecumseh 510324B

Gasket Set

$9.49

$

In Stock, Qty 10

0
