38162 (S-620) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

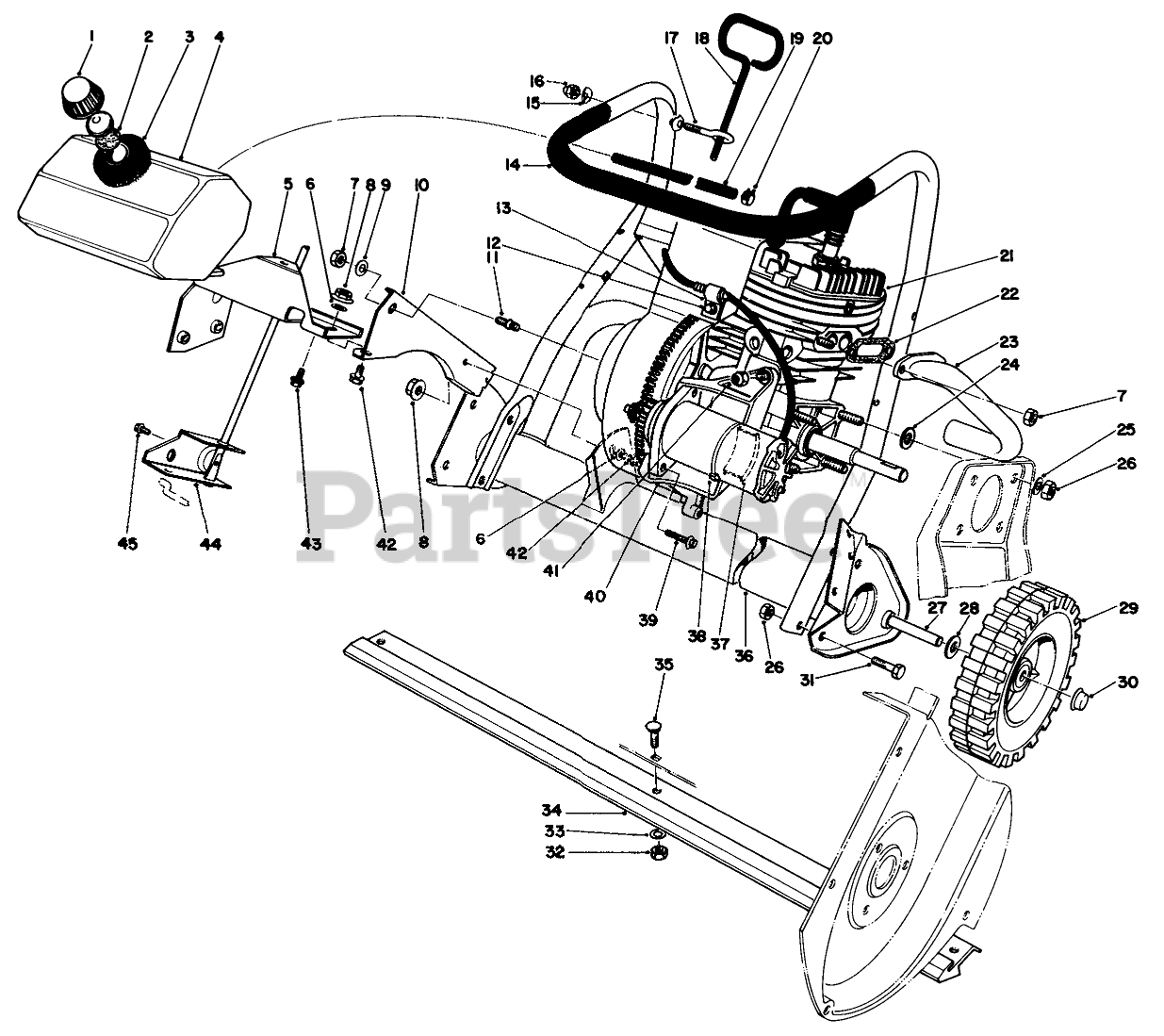

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 42-0680

GAS CAP ASM

$

$

Not available

2

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

3

Toro 25-1610

FOAM PAD

$

$

Not available

4

Toro 39-8670

GAS TANK

$

$

Not available

5

Toro 49-1550

Support-Gas Tank

$

$

Not available

6

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

7

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

$3.49

$

Usually ships in 3-6 days

0

9

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

10

Toro 49-1570

ENGINE SUPPORT

$

$

Not available

11

$

$

Not available

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

13

Toro 2412-65

CABLE CLAMP

$

$

Not available

14

Toro 49-1360

Lower Handle
(Superseded to 49-1390)

$129.99

$

Usually ships in 3-6 days

0

15

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

16

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

17

Toro 52-7120

EYEBOLT

$

$

Not available

18

Toro 49-1600

ADJ ROD ASM

$

$

Not available

19

Toro 49-2480

GasLine
(Superseded to 49-2481)

$7.99

$

In Stock, only 2 left!

0

20

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

21

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

22

Toro 23-3810

EXHAUST GASKET

$

$

Not available

23

Toro 52-7200

EXHAUST PIPE

$

$

Not available

24

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

$

$

Not available

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

29

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

30

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

32

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 23-3170

SCRAPER

$31.99

$

In Stock, Qty 9

0

35

Toro 52-7130

BUTTON HD CARR SCR

$32.99

$

Usually ships in 3-6 days

0

36

Toro 49-1540

MUFFLER ASSEMBLY

$385.99

$

Usually ships in 3-6 days

0

37

Toro 28-9120

RR MOTOR SUPPORT

$

$

Not available

38

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

39

Toro 32144-26

SCREW-FLOW, TAPTITE

$

$

Not available

40

Toro 51-2990

MOTOR MTG BRKT

$

$

Not available

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

42

Toro 3234-23

5/16-18X.62 WHIZLOK SCR
(Superseded to 3234-14)

$1.99

$

In Stock, Qty 20+

0

43

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

44

Toro 39-0840

VANE ADJ BRKT

$

$

Not available

45

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0
