38162 (S-620) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) SHROUD & HANDLE ASSEMBLY Parts Diagram

Snow Thrower

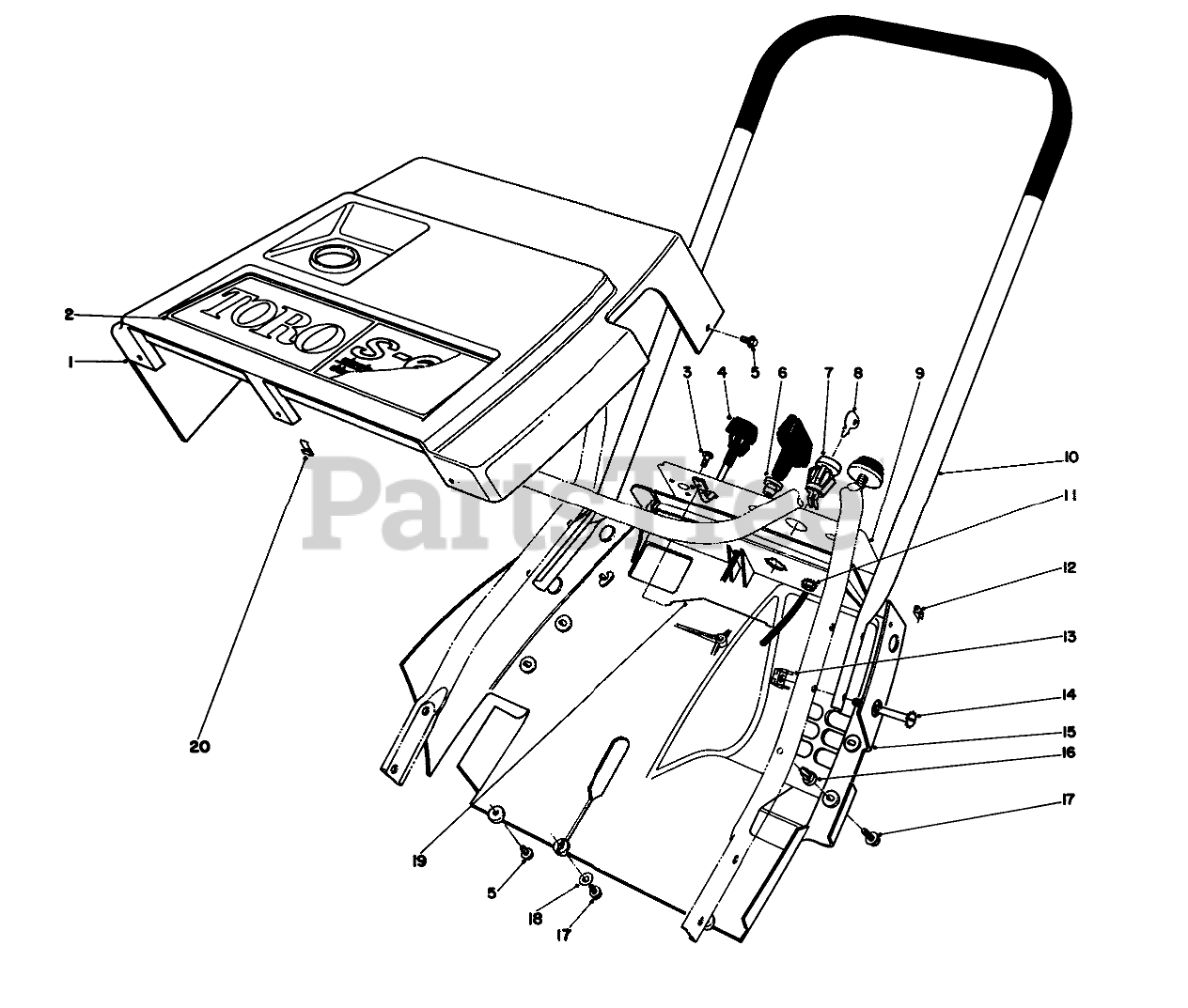

SHROUD & HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-0890

Shroud-Upper
(Superseded to 92-6030)

$

$

Not available

2

Toro 49-1620

TORO DECAL

$

$

Not available

3

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

4

Toro 39-0560

CHOKE CONTROL ASM

$42.99

$

Usually ships in 3-6 days

0

5

Toro 3210476

Screw

$

$

Currently unavailable

6

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

7

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

8

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

9

Toro 49-1330

Decal-Control Panel
(Superseded to 56-2650)

$

$

Not available

10

Toro 49-1370

Handle-Upper
(Superseded to 49-1380)

$147.99

$

In Stock, Qty 8

0

11

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

12

Toro 49-1490

NUT

$4.49

$

In Stock, only 2 left!

0

13

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

14

Toro 32105-11

SCREW-HEX HD SLOT
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

15

Toro 49-1610

LOWER SHROUD

$

$

Not available

16

Toro 3290-453

Nut-Push
(Superseded to 605120)

$4.49

$

In Stock, Qty 9

0

17

Toro 3214434

Self Tapping Screw

$

$

Currently unavailable

18

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

19

Toro 39-8180

CONTROL WIRE

$

$

Not available

20

Toro 52-3300

NUT "U"

$7.49

$

Usually ships in 3-6 days

0
