38160 (1132) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) GRADER BLADE ASSEMBLY (MODEL NO. 59099)(OPTIONAL) Parts Diagram

Snow Thrower

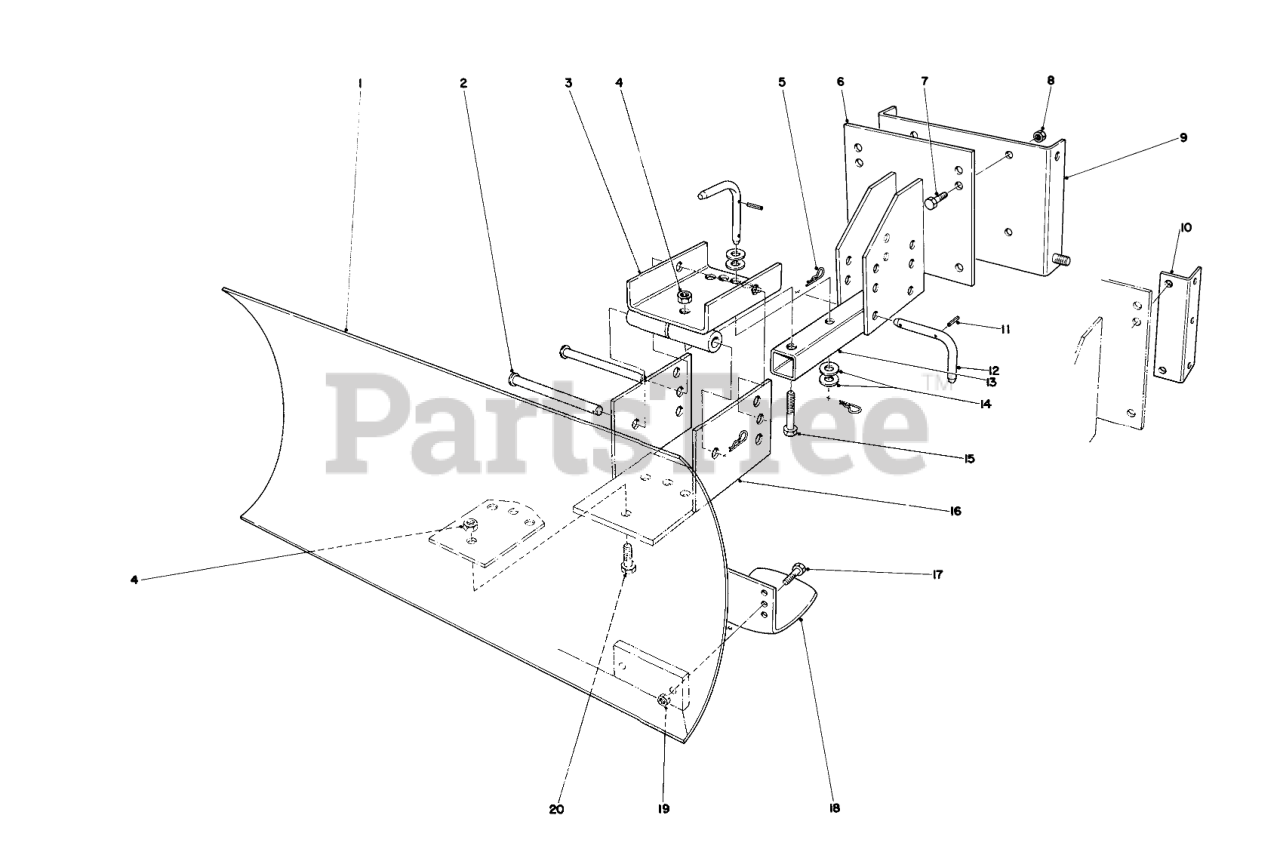

GRADER BLADE ASSEMBLY (MODEL NO. 59099)(OPTIONAL) Parts Diagram

  • Title

1

Toro 7-4374

Blade

$

$

Not available

2

Toro 283-38

PIN-CLEVIS

$26.99

$

Usually ships in 3-6 days

0

3

Toro 20-5090

Swivel Bracket

$

$

Not available

4

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

5

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 20-5170

Mounting Plate

$

$

Not available

7

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

9

Toro 22-4920

Mounting Plate (Used with 826 & 1132 Units only)

$

$

Not available

10

Toro 39-7850

Mounting Rail (used with 421 units only)

$

$

Not available

11

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

12

Toro 20-5210

Pivot Pin (Incl. Ref. #11)

$

$

Not available

13

Toro 20-5140

Blade Tongue

$

$

Not available

14

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

15

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

16

Toro 20-5130

Blade Adjustment

$

$

Not available

17

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

18

Toro 7-1023

Skid

$

$

Not available

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

Toro 20-9960

Air Cleaner Kit-Briggs

Note: Not illustrated

$

$

Currently unavailable
