38160 (1132) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) TRACTION ASSEMBLY Parts Diagram

Snow Thrower

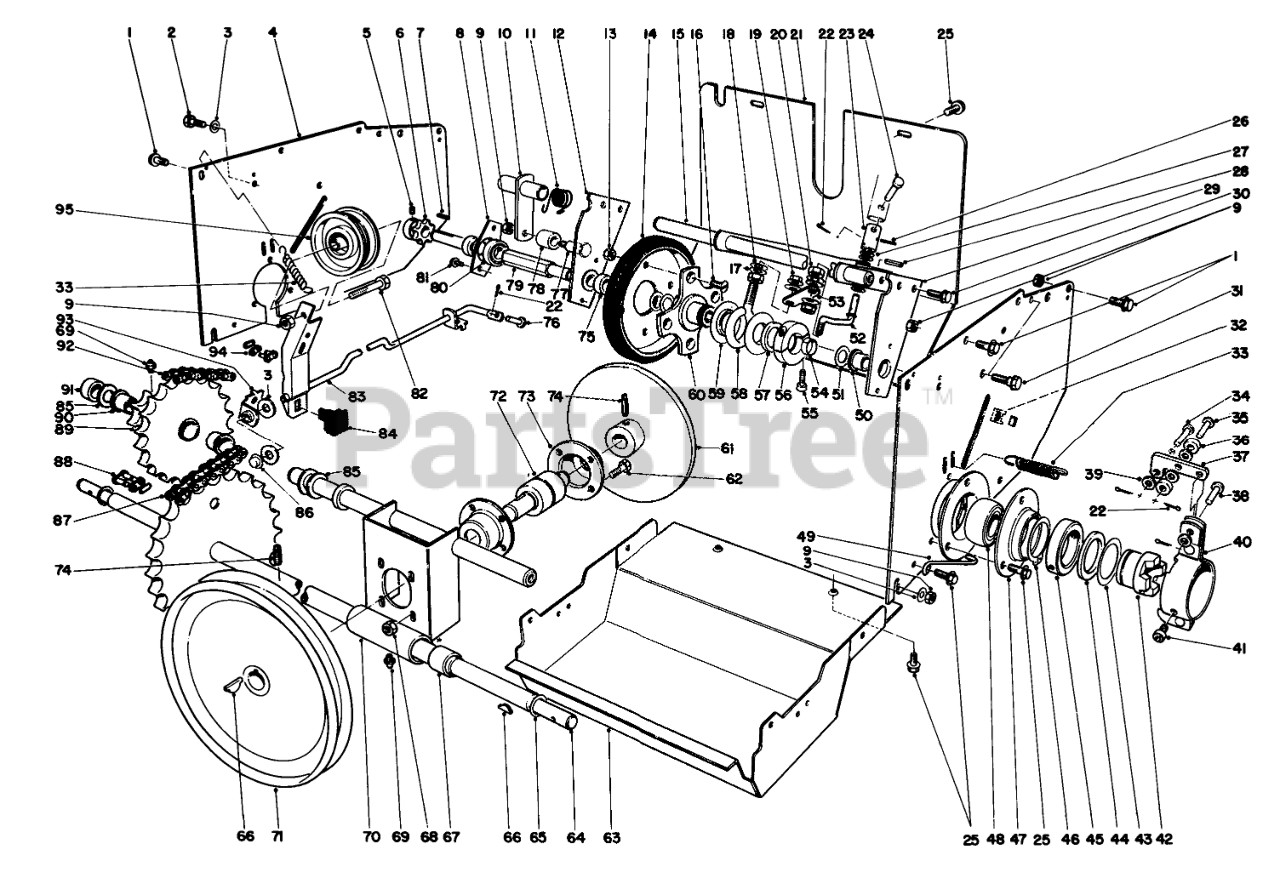

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 22-7990

Side Plate Drive

$

$

Not available

5

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

6

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

7

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

8

Toro 22-8950

BEARING CUP

$

$

Not available

9

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

10

Toro 26-6470

CHAIN TENSION ARM WA

$

$

Not available

11

Toro 26-8950

TORSION SPRING

$41.99

$

Usually ships in 3-6 days

0

12

Toro 26-6070

HEX SHAFT MOUNT R

$

$

Not available

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 40-8170

FRICTION WHEEL

$85.99

$

In Stock, only 3 left!

0

15

Toro 11-8010

Bracket Dead Shaft

$

$

Not available

16

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

17

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

18

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

19

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 8-7950

REAR COVER R

$135.99

$

Usually ships in 3-6 days

0

22

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 11-8070

U JOINT TUBE

$

$

Not available

24

Toro 283-31

CLEVIS PIN

$

$

Not available

25

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

26

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

27

Toro 252-89

Clevis Pin

$

$

Not available

28

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

29

Toro 26-6330

Hex Shaft Mounting (Incl. Ref. #50)

$

$

Not available

30

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

31

Toro 11-8140

SHOULDER SCREW

$

$

Not available

32

Toro 3290-433

RETAINER NUT

$

$

Not available

33

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

34

Toro 283-29

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

35

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

36

Toro 10-3910

CLUTCH ROLLER

$

$

Not available

37

Toro 20-1050

CLUTCH CAM ARM

$18.99

$

Usually ships in 3-6 days

0

38

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

39

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 20-2290

CLUTCH MT BRKT ASM

$

$

Not available

41

Toro 3274-42

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

42

Toro 26-5990

WHEEL CLUTCH

$96.99

$

Usually ships in 3-6 days

0

43

Toro 10-3980

THRUST WASHER

$

$

Not available

44

Toro 256-214

THRUST BEARING

$

$

Not available

45

Toro 10-3860

CLUTCH MOUNT COLLAR

$

$

Not available

46

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

47

Toro 20-1020

BEARING FLANGE
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

48

Toro 20-1010

BEARING
(Superseded to 57-8280)

$11.99

$

In Stock, only 1 left!

0

49

Toro 41-8570

CLUTCH RETAINER

$

$

Not available

50

Toro 256-219

BUSHING

$9.49

$

In Stock, only 1 left!

0

51

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

52

Toro 11-8090

CONNECTION ROD

$

$

Not available

53

Toro 11-8060

SHIFT ROD PIVOT
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

54

Toro 11-3180

SPLIT SPACER

$

$

Not available

55

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

56

Toro 20-4610

ColIar

$

$

Not available

57

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, Qty 6

0

58

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

59

Toro 11-8080

SLIDER RING

$

$

Not available

60

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

61

Toro 23-4970

FRICTION PLATE O

$

$

Not available

62

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

63

Toro 11-7140

LOWER SHIELD R

$

$

Not available

64

Toro 26-5950

AXLE SHAFT WA

$702.99

$

Usually ships in 3-6 days

0

65

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

66

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

67

Toro 256-232

BUSHING

$

$

Not available

68

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

69

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

70

Toro 25-5190

Bulkhead (Incl. Ref. #67)

$

$

Not available

71

Toro 5-7410

Pulley

$

$

Not available

72

Toro 23-4950

BEARING-FRICTION PLATE

$

$

Not available

73

Toro 10-0070

HOUSING BEARING

$

$

Not available

74

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

75

Toro 22-9190

SPACER

$

$

Not available

76

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

77

Toro 7-0846

SHOULDER BOLT

$

$

Not available

78

Toro 26-8940

CHAIN TENSION ROLLER

$

$

Not available

79

Toro 11-8940

FRICTION WHEEL SHAFT

$

$

Not available

80

Toro 251-260

BEARING

$

$

Not available

81

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

82

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

83

Toro 8-9139

Brake Assembly (Incl. Ref. #84)

$

$

Not available

84

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

85

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

86

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

87

Toro 23-7260

ROLLER CHAIN

$

$

Not available

88

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

89

Toro 8-8709

Sprocket (Incl. Ref. #69 & 90)

$303.99

$

Usually ships in 3-6 days

0

90

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

91

Toro 23-7250

SPACER-IDLER

$

$

Not available

92

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$157.99

$

Usually ships in 3-6 days

0

93

Toro 20-2940

Bracket-Clutch

$

$

Not available

94

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

95

Toro 34244

Idler Pulley

$

$

Currently unavailable

Toro 8-8499

Loose Parts

Note: Not illustrated

$

$

Not available
