38160 (1132) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) SNOW CAB ASSEMBLY Parts Diagram

Snow Thrower

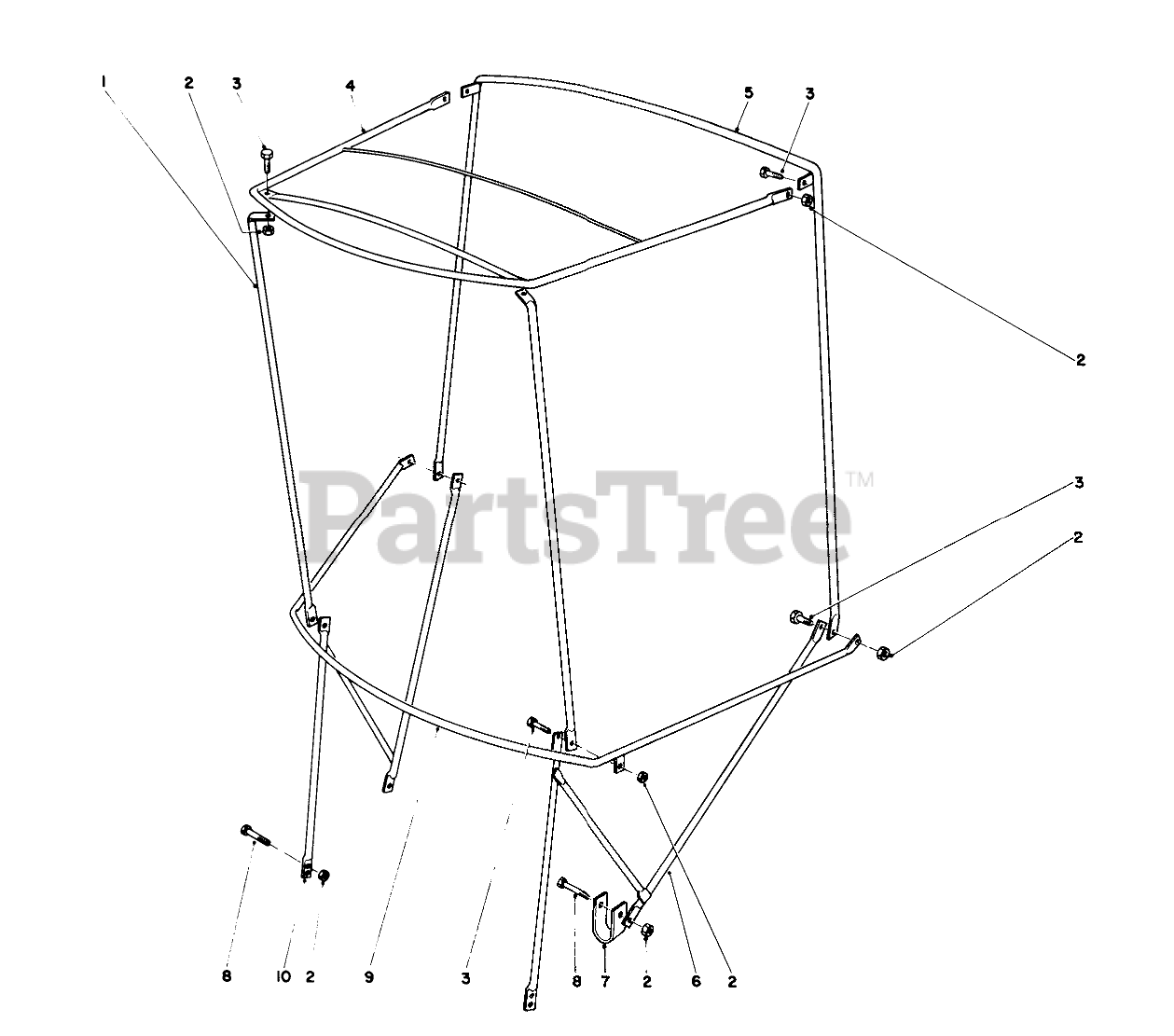

SNOW CAB ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 3214

Bolt

$

$

Currently unavailable

4

Toro 12-8010

FRAME-TOP

$

$

Not available

5

Toro 12-8030

BOW-VERTICAL, REAR

$

$

Not available

6

Toro 42-4060

ATTACHING BRKT L

$

$

Not available

7

Toro 12-8050

U CLAMP

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 12-8020

BOW-CURVED

$

$

Not available

10

Toro 424050

Attaching Bracket R.H.

$

$

Currently unavailable

Toro 424070

Vinyl Cover

Note: Not illustrated

$

$

Currently unavailable
