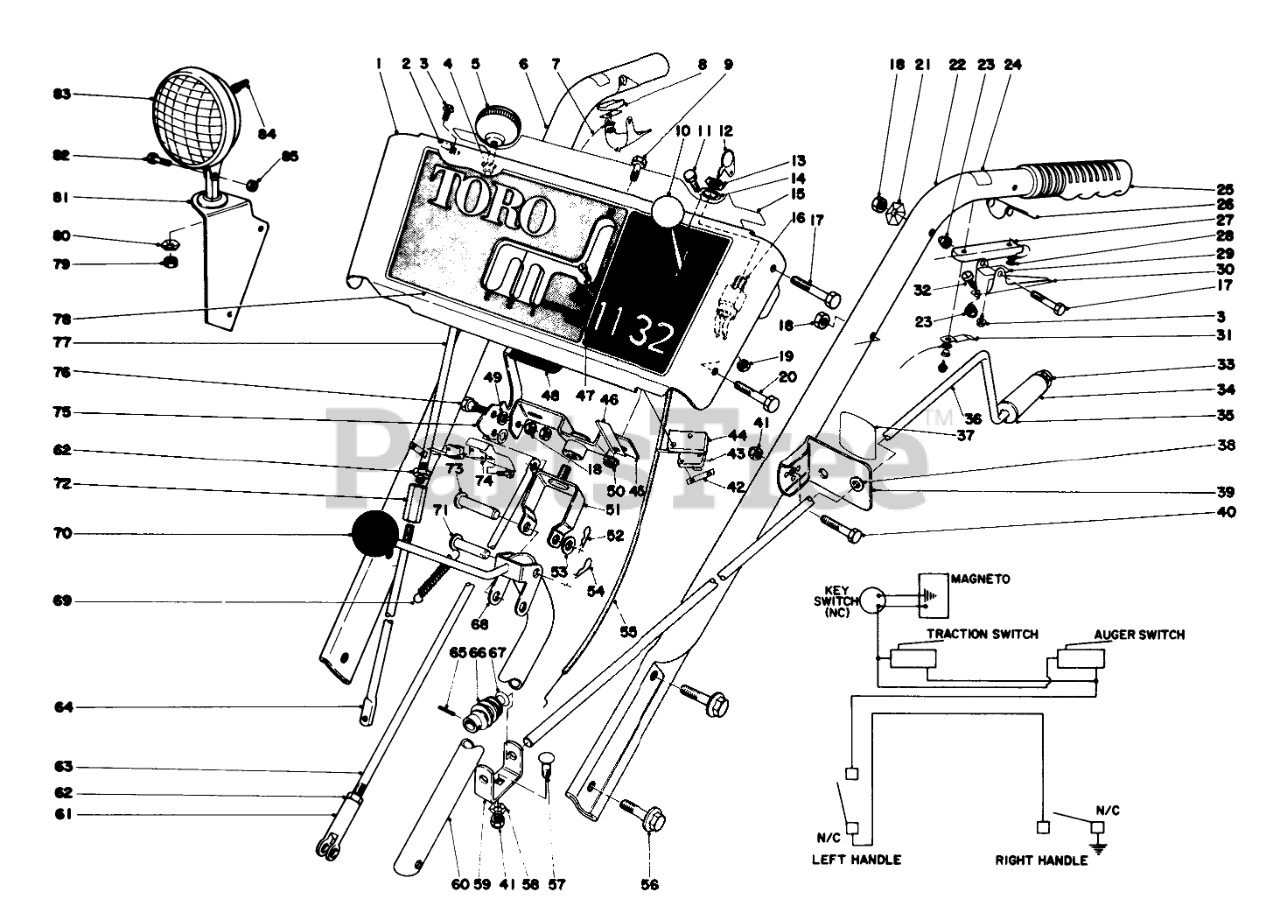

38160 (1132) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 8-1569

Escutcheon Plate (Incl. Ref. #15 & 78)(Model 38160)
(Superseded to 8-8909)

$

$

Not available

Toro 8-1559

Escutcheon Plate (Incl. Ref. #15 & 78)(Model 38150)

Note: Not illustrated

$

$

Not available

2

Toro 20-2810

PLASTIC CLIP

$

$

Not available

3

Toro 33-2270

SCREW

$

$

Not available

4

Toro 256-240

NYLINER #6LI-FF TYPE 7

$9.49

$

Usually ships in 3-6 days

0

5

Toro 233-10

KNOB-LEVER

$64.99

$

Usually ships in 3-6 days

0

6

Toro 29-6430

Handle Right

$

$

Not available

7

Toro 39-1650

WIRE HARNESS

$

$

Not available

8

Toro 17-5680

Insulator

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 233-36

CONTROL KNOB

$

$

Not available

11

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

12

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

14

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

15

Toro 29-6330

BACK ESCUTCH DECAL

$

$

Not available

16

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

17

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

19

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

20

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

21

Toro 3290-257

Washer

$

$

Not available

Toro 3290-257

Washer

Note: Not illustrated

$

$

Not available

22

Toro 29-6440

LEFT HANDLE

$403.99

$

Usually ships in 3-6 days

0

23

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

24

Toro 29-6360

INTERLOCK DECAL

$

$

Not available

25

Toro 6--0450

Handle Grip

$

$

Currently unavailable

26

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

27

Toro 27-0260

DUAL BRKT INSULATOR

$

$

Not available

28

Toro 17-5700

WASHER INSULATOR

$

$

Not available

29

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

30

Toro 27-0450

SAFETY INTRLOCK LEVER

$

$

Not available

31

Toro 17-6510

CONTACT BRACKET

$

$

Not available

32

Toro 3290-401

NYLON SCREW 1/4 20

$

$

Not available

33

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

34

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

36

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

37

Toro 29-6370

CHUTE DECAL

$

$

Not available

38

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 8

0

39

Toro 6-3069

Bracket Chute Control Mounting (Incl. Ref. #37 & 38)
(Superseded to 12-7739)

$

$

Not available

40

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

43

Toro 39-1690

MICRO SWITCH

$

$

Not available

44

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

45

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

46

Toro 26-9410

Retainer Wire

$

$

Not available

47

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

48

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

51

Toro 29-6490

PIVOT BRKT WA

$

$

Not available

52

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

53

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

54

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

55

Toro 8-7790

Throttle Contrl

$

$

Not available

56

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

57

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

58

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

59

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

60

Toro 29-6450

Rod Traction Shift

$

$

Not available

61

Toro 39-4640

CLEVIS

$62.99

$

Usually ships in 3-6 days

0

62

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

63

Toro 29-6460

DRAG LINK

$

$

Not available

64

Toro 22-7970

LOWER WHL CLUTCH ROD

$55.99

$

Usually ships in 3-6 days

0

65

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

66

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

67

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

68

Toro 26-9370

SHIFT ROD WA

$

$

Not available

69

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

70

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

71

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

72

Toro 22-7940

WHL ROD COUPLING

$36.99

$

Usually ships in 3-6 days

0

73

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

74

Toro 22-9300

SWITCH BRKT

$

$

Not available

75

Toro 17-6620

Auger Clutch Handle

$

$

Not available

76

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

77

Toro 29-6470

UP WHEEL CLUTCH ROD

$

$

Not available

78

Toro 37-0290

ESCUTCHEON DECAL

$

$

Not available

Toro 29-6310

ESCUTCHEON DECAL

Note: Not illustrated

$91.99

$

Usually ships in 3-6 days

0

79

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

80

Toro 3290-224

LOCKWASHER-PYRAMID

$38.99

$

Usually ships in 3-6 days

0

81

Toro 22-9390

Lamp Mount

$

$

Not available

82

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

83

Toro 22-9380

HEADLAMP ASM

$

$

Not available

84

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

85

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0
