38155 (826) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

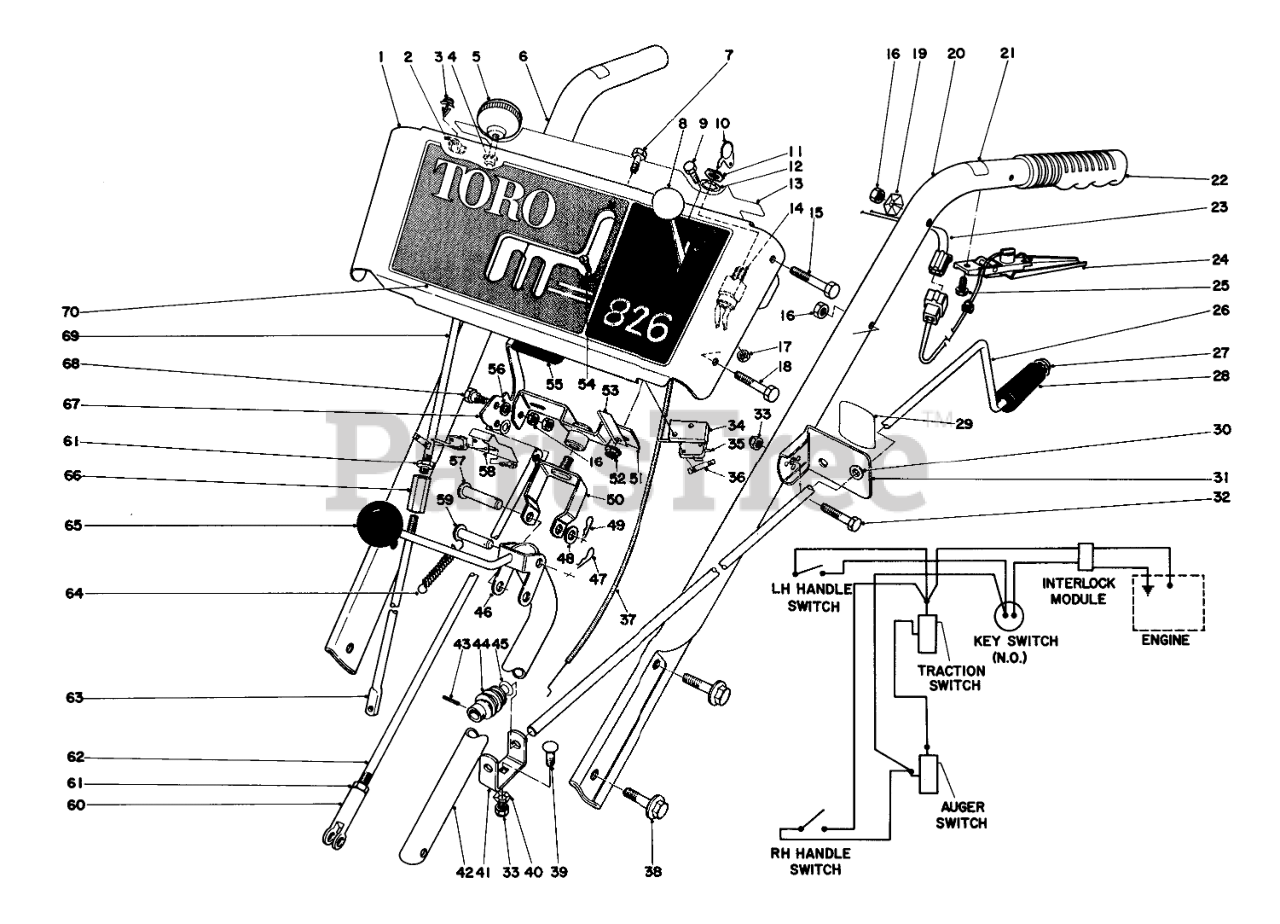

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 8-6789

Escutcheon Plate (Incl. Ref. #13 & 70)

$

$

Not available

2

Toro 43-7450

WIRE CLAMP

$

$

Not available

3

Toro 43-7460

Mounting Stud

$

$

Not available

4

Toro 256-240

NYLINER #6LI-FF TYPE 7

$9.99

$

Usually ships in 3-6 days

0

5

Toro 233-10

KNOB-LEVER

$67.99

$

Usually ships in 3-6 days

0

6

Toro 40-8460

Handle Right

$

$

Not available

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 233-36

CONTROL KNOB

$

$

Not available

9

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

10

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 15

0

11

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 7

0

12

Toro 3245-5

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

13

Toro 39-7140

Decal-Escutcheon Back

$

$

Not available

14

Toro 40-8240

Key Switch (Incl. Ref. #11 & 12)
(Superseded to 40-8241)

$35.99

$

Usually ships in 3-6 days

0

15

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

17

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

18

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

19

Toro 3290-257

Washer

$

$

Not available

20

Toro 40-8450

HANDLE LEFT

$

$

Not available

21

Toro 39-7150

INTERLOCK DECAL

$

$

Not available

22

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

23

Toro 40-8640

WIRE HARNESS INTERLOC

$

$

Not available

24

Toro 40-9690

INTERLOCK HDLE SWITCH
(Superseded to 131-4830)

$47.99

$

In Stock, only 2 left!

0

25

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 13

0

26

Toro 41-8640

Chute Control Rod

$

$

Not available

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, only 2 left!

0

28

Toro 40-8230

GRIP-CONTROL, CHUTE

$17.99

$

Usually ships in 3-6 days

0

29

Toro 39-7120

CHUTE DECAL
(Superseded to 63-3510)

$5.99

$

Usually ships in 3-6 days

0

30

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

31

Toro 8-6409

Bracket-Chute Control (Incl. Ref. #29 & 30)

$

$

Not available

32

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

35

Toro 40-8200

SWITCH-MICRO

$34.99

$

In Stock, only 2 left!

0

36

Toro 3290-345

Speed Nut

$

$

Currently unavailable

37

Toro 8-7790

Throttle Contrl

$

$

Not available

38

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

39

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

40

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

41

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

42

Toro 29-6450

Rod Traction Shift

$

$

Not available

43

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 1 left!

0

44

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

45

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

46

Toro 26-9370

SHIFT ROD WA

$

$

Not available

47

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

48

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

49

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

50

Toro 29-6490

PIVOT BRKT WA

$

$

Not available

51

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

52

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 6

0

53

Toro 26-9410

Retainer Wire

$

$

Not available

54

Toro 3290-313

SCREW-SPH

$7.99

$

Usually ships in 3-6 days

0

55

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

56

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

57

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

58

Toro 22-9300

SWITCH BRKT

$

$

Not available

59

Toro 283-15

PIN-CLEVIS

$5.99

$

Usually ships in 3-6 days

0

60

Toro 39-4640

CLEVIS

$65.99

$

Usually ships in 3-6 days

0

61

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 6

0

62

Toro 29-6460

DRAG LINK

$

$

Not available

63

Toro 22-7970

LOWER WHL CLUTCH ROD

$58.99

$

Usually ships in 3-6 days

0

64

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

65

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

66

Toro 22-7940

WHL ROD COUPLING

$38.99

$

Usually ships in 3-6 days

0

67

Toro 17-6620

Auger Clutch Handle

$

$

Not available

68

Toro 11-9030

SCREW-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

69

Toro 29-6470

UP WHEEL CLUTCH ROD

$

$

Not available

70

Toro 39-7080

Decal-Escutcheon

$

$

Not available

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 7

0
