38155 (826) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) ENGINE BRIGGS & STRATTON MODEL NO. 190402-2720-01 Parts Diagram

Snow Thrower

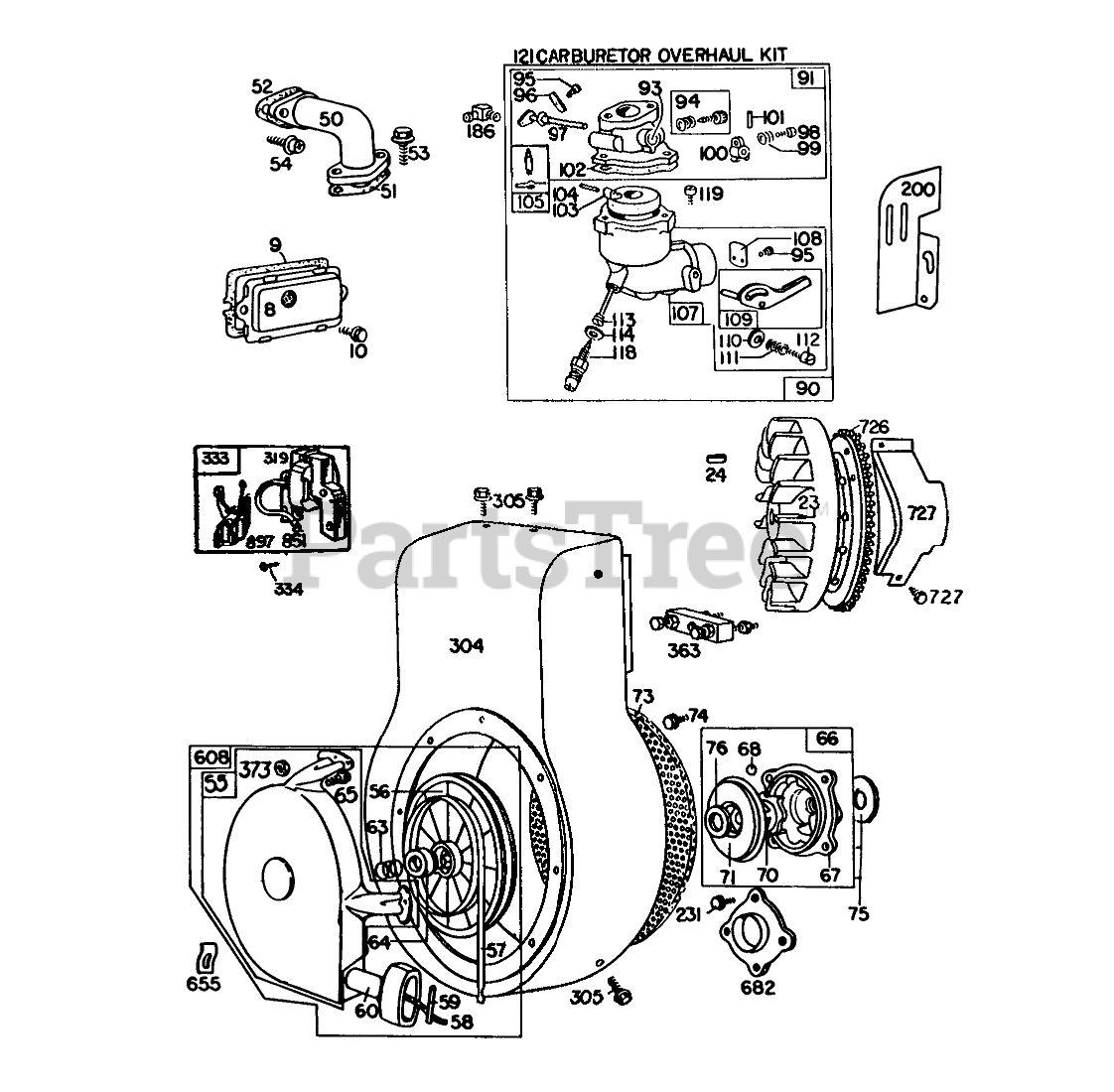

ENGINE BRIGGS & STRATTON MODEL NO. 190402-2720-01 Parts Diagram

  • Title

8

Briggs & Stratton 390321

Breather Assembly
(Superseded to 495724)

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 392034

Flywheel and Ring Gear Assy.-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 212478

Elbow-Intake

$22.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270684

Gasket-Carb. Mtg.

Note: Included in Gasket Set-Part No. 299577.

$4.99

$

In Stock, Qty 8

0

52

Briggs & Stratton 27828

Gasket-Intake Elbow
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577.

$4.99

$

In Stock, Qty 6

0

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

55

Briggs & Stratton 393576

Housing-Rewind

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Toro 384897

Housing-Rewind Starter Clutch

$

$

Currently unavailable

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

90

Briggs & Stratton 391889

Carburetor Assembly

$262.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 390404

Body Assy., Upper Carburetor

$123.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394639

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Value-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Body

Note: Included in Carburetor Overhaul Kit-Part No. 394693.

$4.49

$

In Stock, Qty 14

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394693.

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 391909

Body Assy.-Lower Carburetor

$49.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 221835

Valve-Choke

$8.49

$

In Stock, only 2 left!

0

109

Briggs & Stratton 391888

Shaft Assy.-Choke

$12.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 222712

Washer

$5.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 395207

Nozzle-Carburetor
(Superseded to 398039)

Note: Included in Carburetor Overhaul Kit-Part No. 394693.

$20.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 394693.

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 394693.

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 394693

Carbuetor Overhaul Kit

$31.99

$

In Stock, Qty 20+

0

186

Briggs & Stratton 67218

Connector-Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 390516

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

319

Briggs & Stratton 395326

Armature Assembly
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

333

Briggs & Stratton 395492

Armature Group
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 221940

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available
