38155 (826) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) AUGER ASSEMBLY Parts Diagram

Snow Thrower

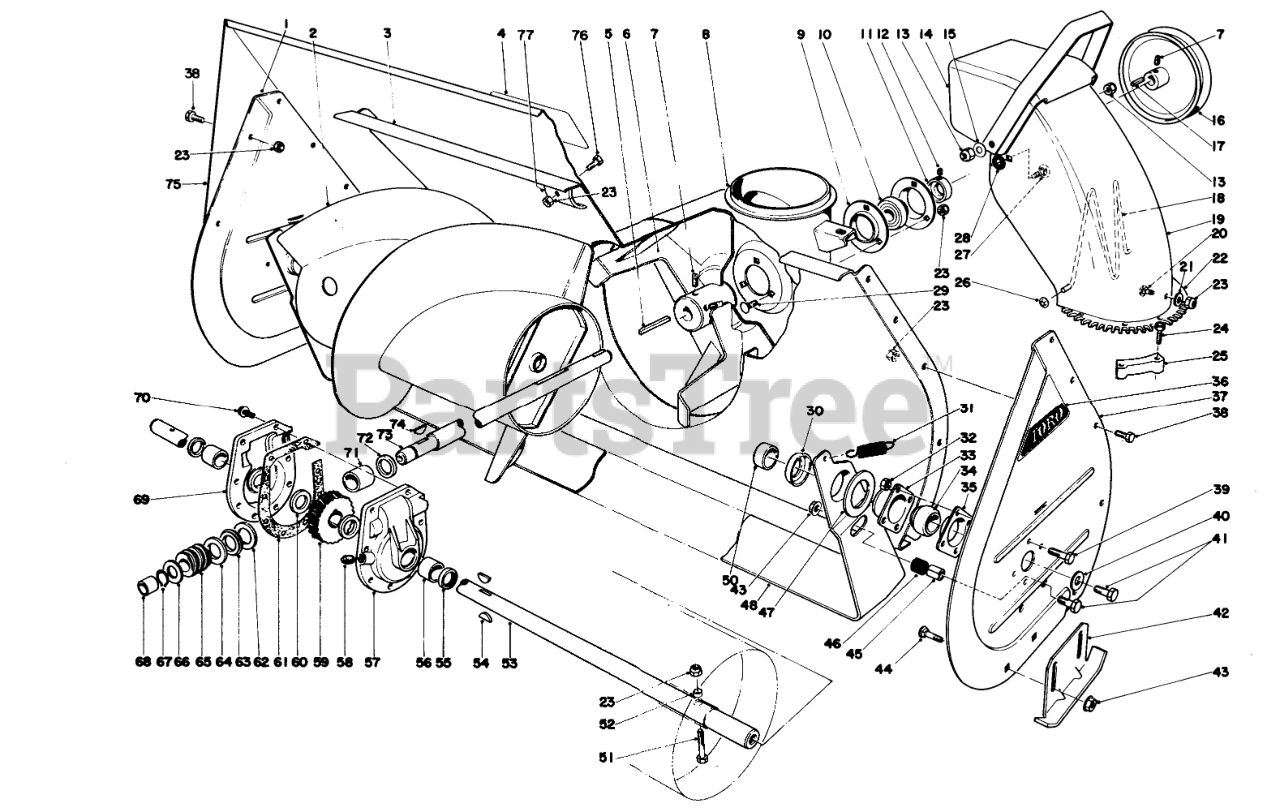

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 39-6120

RH AUGER SIDE PLT R

$

$

Not available

2

Toro 26-6160

RH AUGER WA 26" B

$

$

Not available

Toro 26-6170

LH AUGER WA 26" B

Note: Not Illustrated.

$

$

Not available

3

Toro 25-5100

AUGER HSG WA 26" R

$

$

Not available

4

Toro 42-1770

Decal
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

5

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

6

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$690.99

$

Usually ships in 3-6 days

0

7

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

8

Toro 25-5170

CHUTE RING

$

$

Not available

9

Toro 251-229

BRG FLANGE

$46.99

$

In Stock, only 1 left!

0

10

Toro 251-224

BALL BRG W/COLLAR

$59.99

$

Usually ships in 3-6 days

0

11

Toro 251-231

EXT LOCKING COLLAR

$38.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

13

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

14

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

15

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

16

Toro 5-7400

1/2 X 9.5 DIA PULLEY

$

$

Not available

17

Toro 3-6857

SQUARE KEY

$18.99

$

Usually ships in 3-6 days

0

18

Toro 12-2040

WIRE-CHUTE

$

$

Not available

19

Toro 25-5440

Upper Chute
(Superseded to 92-6335-01)

$222.99

$

Usually ships in 3-6 days

0

20

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

25

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

26

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

28

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 26-6400

Positioner-Scraper

$

$

Not available

31

Toro 5-7290

SPRING-TENSION

$27.99

$

In Stock, only 2 left!

0

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

33

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

34

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 5

0

35

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

Usually ships in 3-6 days

0

36

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

37

Toro 39-6130

LH AUGER SIDE PLT R

$

$

Not available

38

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

39

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

41

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

42

Toro 20-2840

AUGER SKID WA R
(Superseded to 20-2840-01)

$47.99

$

In Stock, Qty 11

0

43

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

45

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

46

Toro 25-5150

SCRAPER STOP CUSHION

$8.99

$

Usually ships in 3-6 days

0

47

Toro 20-0300

SCRAPER BLADE SPACER

$10.99

$

Usually ships in 3-6 days

0

48

Toro 19-9140

SCRAPER BLADE 26 R

$

$

Not available

50

Toro 26-6390

AUGER SPACER

$

$

Not available

51

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

52

Toro 25-5090

SPACER-HUB, AUGER

$11.99

$

In Stock, Qty 8

0

53

Toro 11-7000

26 AUGER SHAFT

$509.99

$

Usually ships in 3-6 days

0

54

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

55

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 10

0

56

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

57

Toro 37-8860

Gear Case L.H. (Incl. Ref. #55-56)
(Superseded to 14-2459)

$155.99

$

In Stock, only 2 left!

0

58

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

59

Toro 5-7180

GEAR-WORM, 27T

$183.99

$

In Stock, only 1 left!

0

60

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

61

Toro 40-8330

asket
(Superseded to 51-0460)

$9.49

$

In Stock, Qty 5

0

62

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

63

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

64

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 2 left!

0

65

Toro 5-7170

GEAR

$131.99

$

In Stock, only 3 left!

0

66

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

67

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

68

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

69

Toro 37-8850

Gear Case R.H. (Incl. Ref. #55-56)
(Superseded to 14-2449)

$155.99

$

In Stock, only 2 left!

0

70

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

71

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

72

Toro 237-87

RING-QUAD

$7.49

$

In Stock, only 1 left!

0

73

Toro 19-8540

SHAFT-IMPELLER

$356.99

$

Usually ships in 3-6 days

0

74

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

75

Toro 39-6290

Auger Extension

$

$

Not available

76

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

77

Toro 43-7480

SHIELD CLAMP R

$

$

Not available

Toro 19-6990

Gear Case Assembly Complete (Incl. Ref. #53-74)

Note: Not illustrated

$

$

Not available
