38155 (826) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) 12 VOLT STARTING MOTOR KIT 37-4640 (OPTIONAL) Parts Diagram

Snow Thrower

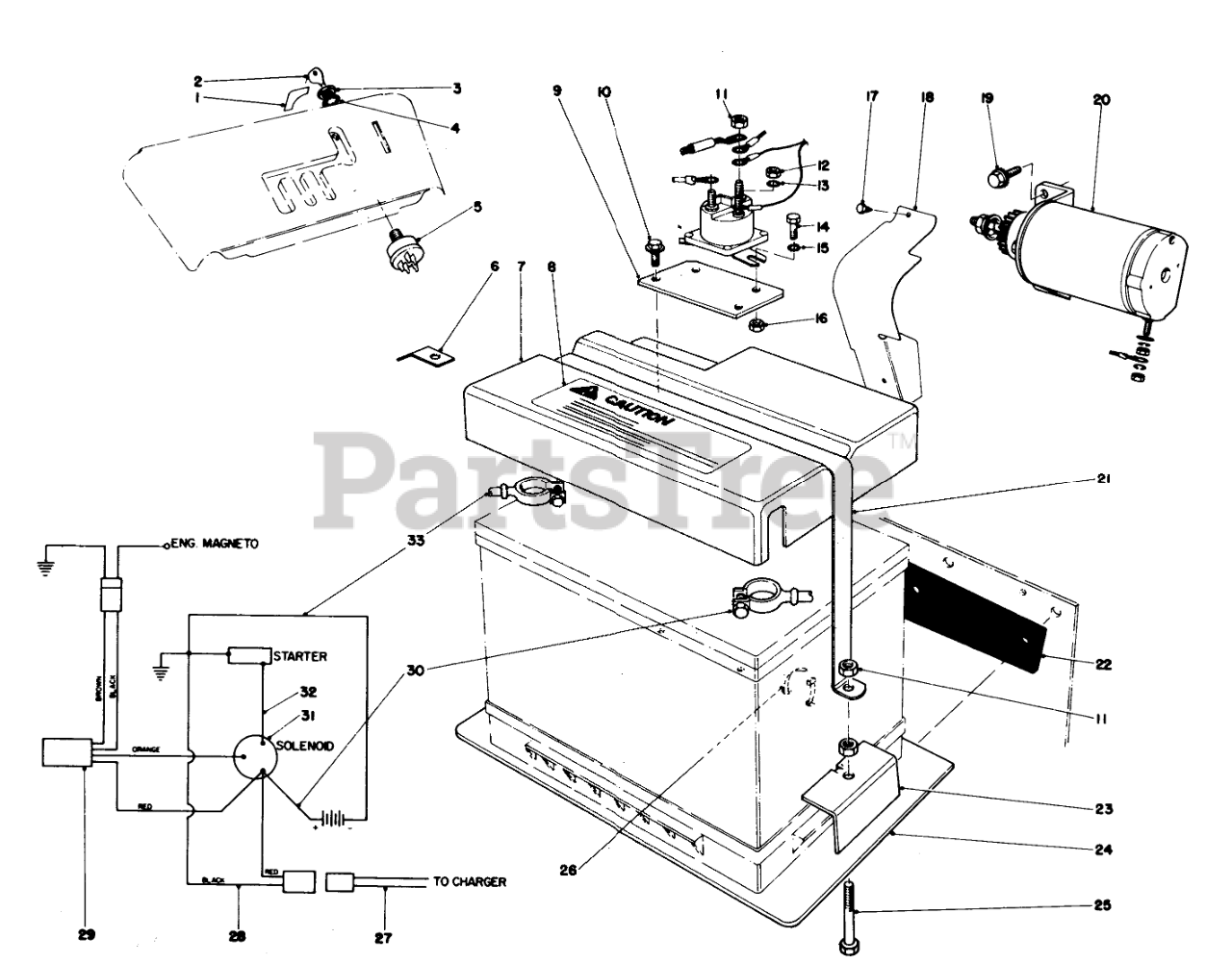

12 VOLT STARTING MOTOR KIT 37-4640 (OPTIONAL) Parts Diagram

  • Title
1

Toro 38-0640

Decal Switch

$

$

Not available

2

$

$

Currently unavailable

3

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

4

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

5

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

6

Toro 22-9060

Bracken Wire Clamp

$

$

Not available

7

Toro 8-2839

Battery Cover (Incl. Ref. #8)

$

$

Not available

8

Toro 38-0630

Decal-Caution

$

$

Not available

9

Toro 22-8880

Bracket Solenoid

$

$

Not available

10

Toro 3214410

Screw

$

$

Currently unavailable

11

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

12

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

13

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

14

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

15

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 32108-57

Hex Hd. Sems Screw

$

$

Not available

18

Toro 20-7060

Pinion Shield

$

$

Not available

19

Toro 32140-45

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

20

Starter Motor & Pinion Assy.

Note: Not available from The Toro Co.; for reference only. Obtain from your local Briggs & Stratton dealer part no. 393852.

$

$

Not available

21

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$101.99

$

Usually ships in 3-6 days

0

22

Toro 24-6150

Batery Isolation Pad

$

$

Not available

23

Toro 22-8870

BATTERY CLAMP

$

$

Not available

24

Toro 22-8830

Battery Mounting Plate

$

$

Not available

25

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 29-7830

MALE WIRE ASM

$17.99

$

Usually ships in 3-6 days

0

28

Toro 29-7820

FEMALE WIRE ASM

$

$

Not available

29

Toro 29-7810

12 V IGN WIRE HARNESS

$

$

Not available

30

Toro 22-9320

BATT-SOLENOID CABLE

$241.99

$

Usually ships in 3-6 days

0

31

Toro 6-1600

SOLENOID

$72.99

$

Usually ships in 3-6 days

0

32

Toro 22-9310

STRT MTR-SOLNOID WIRE

$

$

Not available

33

Toro 22-9330

BATT-GROUND CABLE

$

$

Not available

Toro 26-7140

BATT CHGR ASM (EURPN)

Note: Not illustrated; is not included with kit

$

$

Not available
