38155 (826) - Toro Snow Thrower (SN: 002000001 - 002999999) (1982) SNOW CAB ASSEMBLY (MODEL NO. 12-8100) Parts Diagram

Snow Thrower

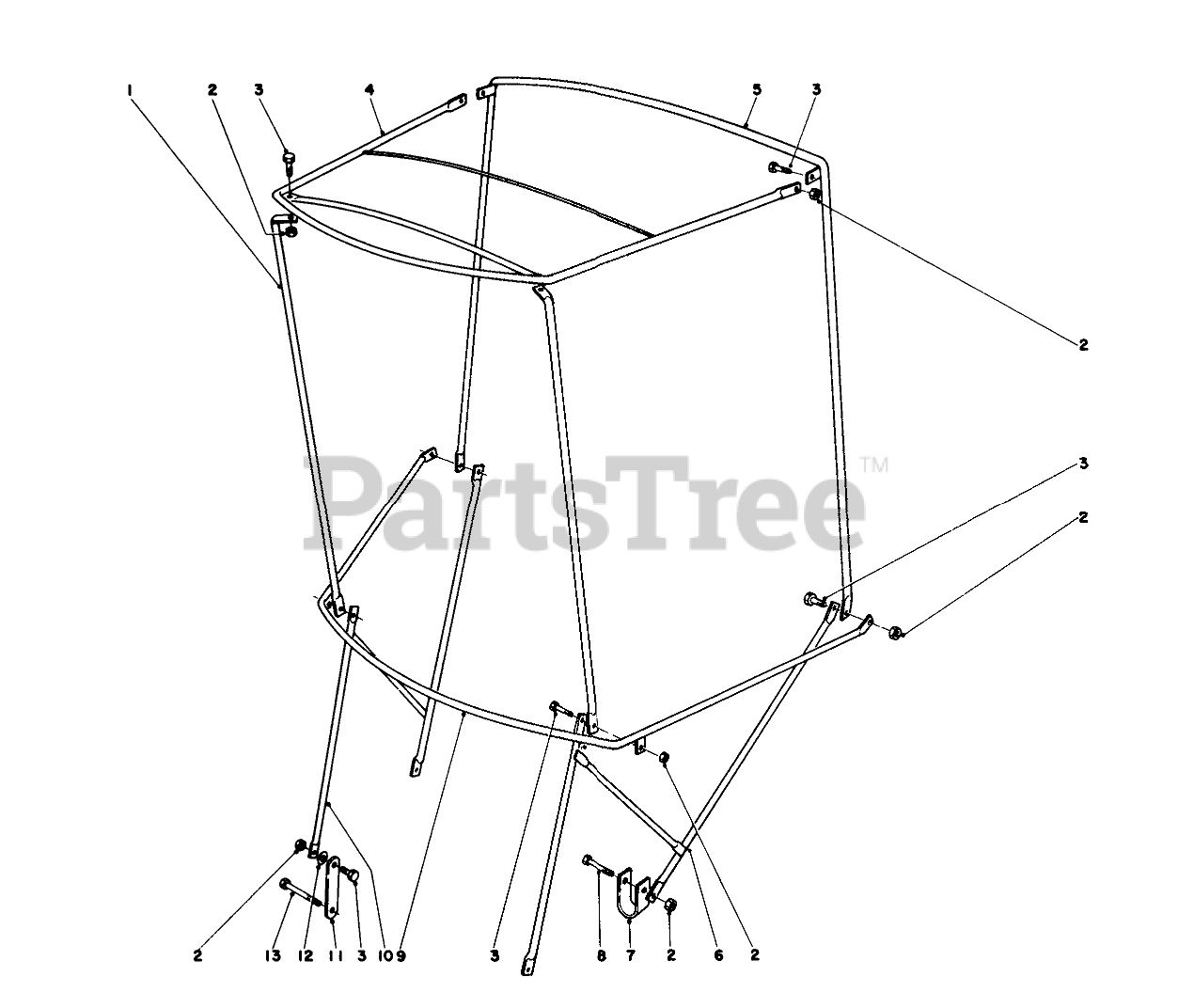

SNOW CAB ASSEMBLY (MODEL NO. 12-8100) Parts Diagram

  • Title

Toro 12-8080

Vinyl Cover
(Superseded to 42-3380)

Note: Not illustrated

$587.99

$

Usually ships in 3-6 days

0

10

Toro 12-8060

Attaching Bracket, R.H.

$

$

Not available

11

Toro 20-7260

Mounting Strap

$

$

Not available

12

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

13

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

1

$

$

Not available

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 12-8010

FRAME-TOP

$

$

Not available

5

Toro 12-8030

BOW-VERTICAL, REAR

$

$

Not available

6

Toro 12-8070

Attaching Bracket, L.H.

$

$

Not available

7

Toro 12-8050

U CLAMP

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 12-8020

BOW-CURVED

$

$

Not available
