38155 (826) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) Handle Assembly Parts Diagram

Snow Thrower

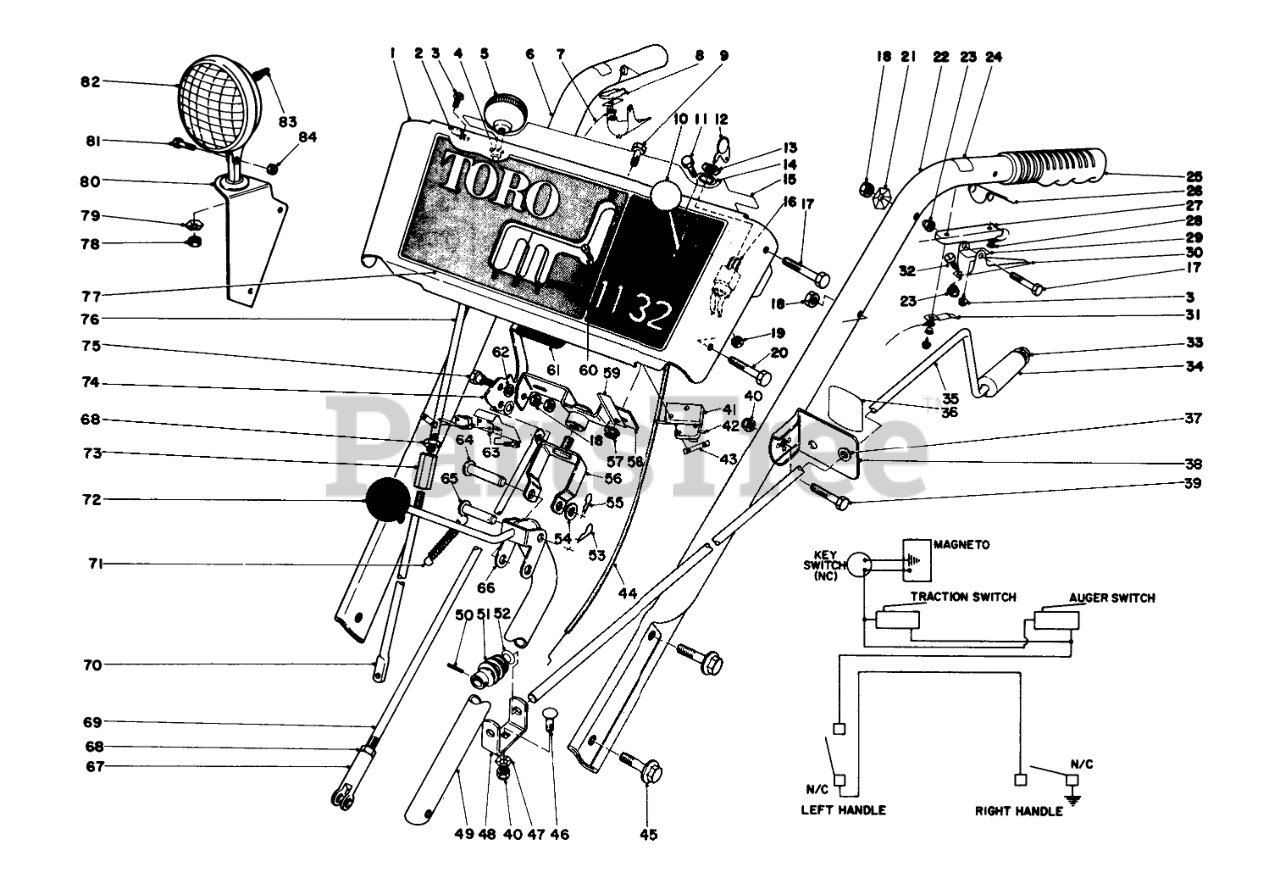

Handle Assembly Parts Diagram

  • Title

1

Toro 8-6749

DISCONTINUED

$

$

Not available

Toro 8-6789

DISCONTINUED

Note: Not illustrated

$

$

Not available

2

Toro 20-2810

DISCONTINUED

$

$

Not available

3

Toro 33-2270

DISCONTINUED

$

$

Not available

4

Toro 256-240

NYLINER #6LI-FF TYPE 7

$8.49

$

Usually ships in 3-6 days

0

5

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

6

Toro 29-6430

DISCONTINUED

$

$

Not available

7

Toro 39-1650

DISCONTINUED

$

$

Not available

8

Toro 17-5680

DISCONTINUE

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 233-36

DISCONTINUED

$

$

Not available

11

Toro 32140-99

DISCONTINUED

$

$

Not available

12

Toro 33-2010

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

14

Toro 3245-5

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

15

Toro 39-7140

DISCONTINUED

$

$

Not available

16

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

17

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

19

Toro 32146-18

See Supercession: 32153-1
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

20

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

21

Toro 3290-257

DISCONTINUED

$

$

Not available

22

Toro 29-6440

LEFT HANDLE

$355.99

$

Usually ships in 3-6 days

0

23

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

24

Toro 39-7150

DISCONTINUED

$

$

Not available

25

Toro 6-0450

See Supercession: 74-1380
(Superseded to 74-1380)

$

$

Not available

26

Toro 17-5720

DISCONTINUED

$

$

Not available

27

Toro 27-0260

DUAL BRKT INSULATOR

$

$

Not available

28

Toro 17-5700

BUSHING-INSULATOR

$9.49

$

Usually ships in 3-6 days

0

29

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

30

Toro 27-0450

DISCONTINUED

$

$

Not available

31

Toro 17-6510

CONTACT BRACKET

$9.49

$

Usually ships in 3-6 days

0

32

Toro 3290-401

NYLON SCREW 1/4 20

$9.49

$

Usually ships in 3-6 days

0

33

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

34

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

35

Toro 41-8640

DISCONTINUE

$

$

Not available

36

Toro 39-7120

See Supercession: 63-3510
(Superseded to 63-3510)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 256-249

See Supercession: 5979
(Superseded to 5979)

$3.49

$

In Stock, Qty 10

0

38

Toro 8-6409

DISCONTINUED XREF

$

$

Not available

39

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

40

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 22-7950

DISCONTINUED

$

$

Not available

42

Toro 39-1690

DISCONTINUED

$

$

Not available

43

Toro 3290-345

Speed Nut

$

$

Currently unavailable

44

Toro 8-7790

DISCONTINUED

$

$

Not available

45

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

46

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

47

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

48

Toro 11-7110

DISCONTINUED
(Superseded to 117110-01)

$

$

Not available

49

Toro 29-6450

DISCONTINUED

$

$

Not available

50

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

51

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

52

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

53

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

54

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

56

Toro 29-6490

DISCONTINUED

$

$

Not available

57

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

58

Toro 8-7930

DISCONTINUED

$

$

Not available

59

Toro 26-9410

DISCONTINUE

$

$

Not available

60

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

61

Toro 11-8970

DISCONTINUED

$

$

Not available

62

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

63

Toro 22-9300

SWITCH BRKT

$

$

Not available

64

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

65

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

66

Toro 26-9370

SHIFT ROD WA

$186.99

$

Usually ships in 3-6 days

0

67

Toro 39-4640

CLEVIS

$59.99

$

Usually ships in 3-6 days

0

68

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

69

Toro 29-6460

DISCONTINUED

$

$

Not available

70

Toro 22-7970

LOWER WHL CLUTCH ROD

$55.99

$

Usually ships in 3-6 days

0

71

Toro 8-9900

DISCONTINUED

$

$

Not available

72

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

73

Toro 22-7940

WHL ROD COUPLING

$35.99

$

Usually ships in 3-6 days

0

74

Toro 17-6620

DISCONTINUED

$

$

Not available

75

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

76

Toro 29-6470

DISCONTINUED

$

$

Not available

77

Toro 39-7060

DISCONTINUED

$

$

Not available

Toro 39-7080

DISCONTINUE

Note: Not illustrated

$

$

Not available

78

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

79

Toro 3290-224

LOCKWASHER-PYRAMID

$36.99

$

Usually ships in 3-6 days

0

80

Toro 22-9390

DISCONTINUED

$

$

Not available

81

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

82

Toro 22-9380

DISCONTINUED

$

$

Not available

83

Toro 218-473

BOOT-SWITCH

$20.99

$

Usually ships in 3-6 days

0

84

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
