38155 (826) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) Engine Model No. 190402 Type 0989-01 (model 38155) 2 Parts Diagram

Snow Thrower

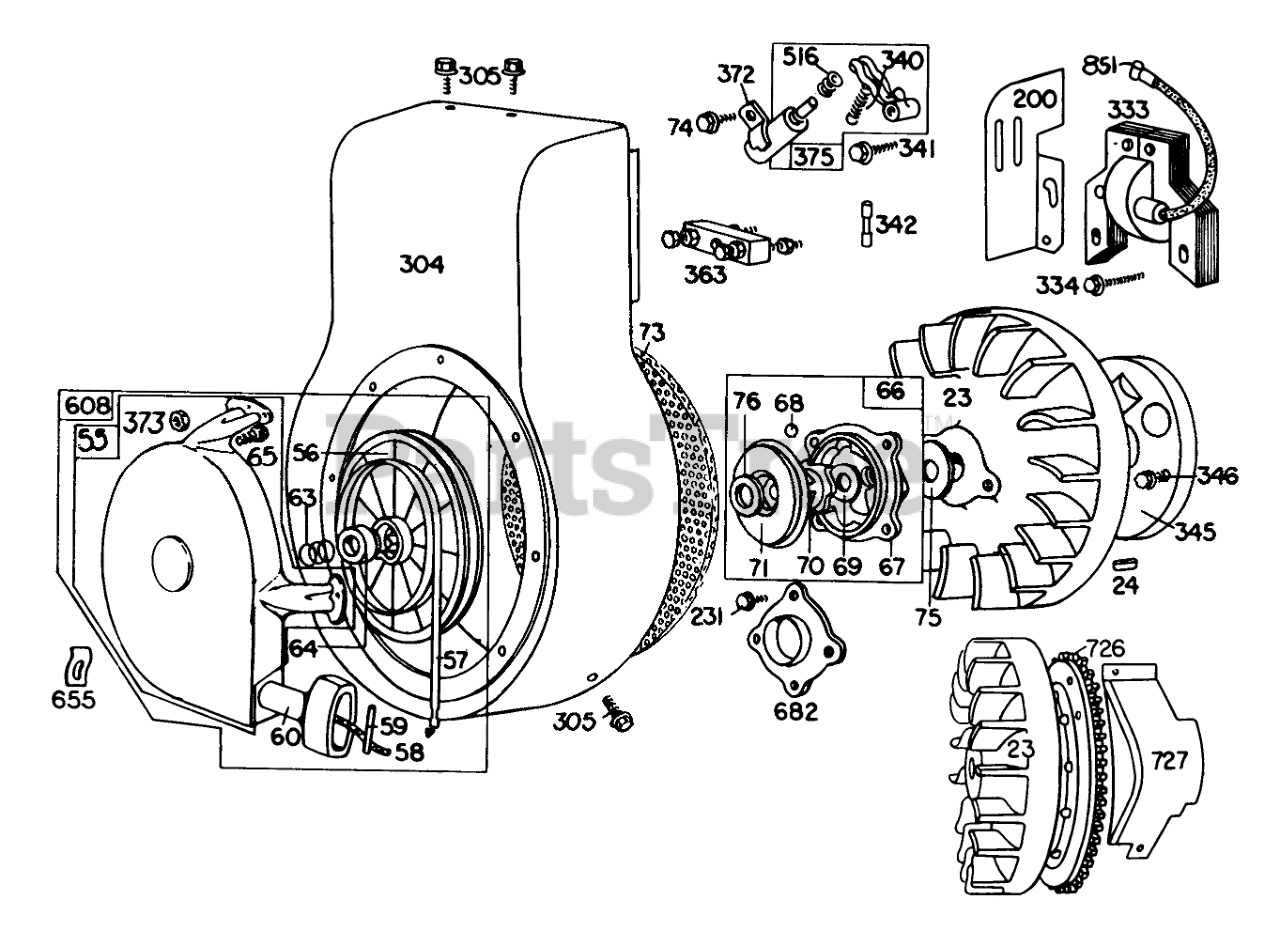

Engine Model No. 190402 Type 0989-01 (model 38155) 2 Parts Diagram

  • Title
23

Toro 392034

Flywheel and Ring Gear Assy.-Magneto

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

55

Toro 393576

Housing-Rewind

$

$

Currently unavailable

56

Toro 295871

Pulley-Rewind

$

$

Currently unavailable

57

Toro 294303

Spring-Rewind

$

$

Currently unavailable

58

Toro 66884

Rope-Rewind

$

$

Currently unavailable

59

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

60

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

63

Toro 260414

Spring

$

$

Currently unavailable

64

Toro 230543

Adapter

$

$

Currently unavailable

65

Toro 93067

Screw

$

$

Currently unavailable

66

Toro 393117

Clutch Assy.-Rewind Starter

$

$

Currently unavailable

67

Toro 261453

Housing

$

$

Currently unavailable

68

Toro 63770

Ball

$

$

Currently unavailable

69

Toro 66718

Washer-Thrust

$

$

Currently unavailable

70

Toro 298799

Ratchet

$

$

Currently unavailable

71

Toro 221653

Washer

$

$

Currently unavailable

73

Toro 221796

Screen

$

$

Currently unavailable

74

Toro 93042

Screw

$

$

Currently unavailable

75

Toro 220865

Washer

$

$

Currently unavailable

76

Toro 68238

Washer

$

$

Currently unavailable

200

Toro 221760

Guide-Air

$

$

Not available

231

Toro 93064

Screw

$

$

Currently unavailable

304

Toro 390516

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

333

Toro 298968

Armature Assembly

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

345

Toro 222170

Cover-Breaker Point

$

$

Currently unavailable

346

Toro 93014

Screw

$

$

Currently unavailable

363

Toro 19203

Puller-Flywheel

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

373

$

$

Currently unavailable

375

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

608

Toro 390391

Rewind Starter

$

$

Currently unavailable

655

Toro 222598

Anchor Spring

$

$

Currently unavailable

682

Toro 211516

Shield

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 221940

Guard-Ring Gear

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable
