38150 (826) - Toro Snow Thrower (SN: 006000001 - 006999999) (1986) 12 VOLT STARTER MOTOR BRIGGS & STRATTON NO. 393852 Parts Diagram

Snow Thrower

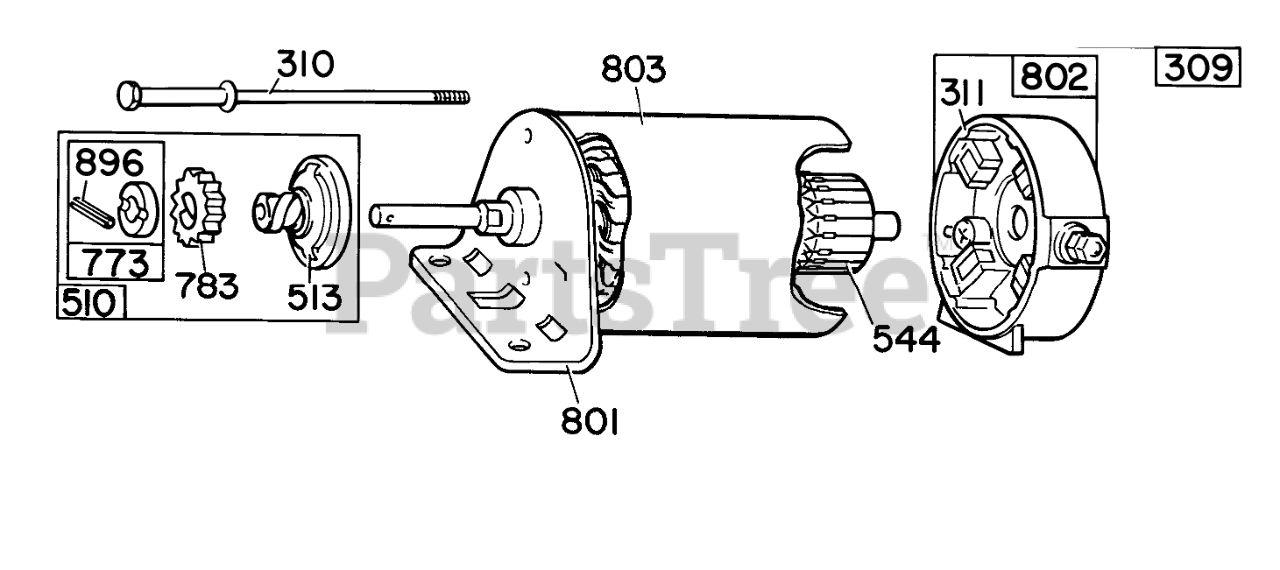

12 VOLT STARTER MOTOR BRIGGS & STRATTON NO. 393852 Parts Diagram

  • Title

309

Briggs & Stratton 391177

Motor-Starting
(Superseded to 497595)

Note: Obtain parts from www.briggsandstratton.com

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 93933

Thru Bolt Assembly
(Superseded to 394427)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 391705

Brush Assembly

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

In Stock, only 1 left!

0

510

Briggs & Stratton 391461

Drive Assembly (Incl. Ref. 513, 773, 783 & 896)
(Superseded to 696535)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 391160

Armature Assembly

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

773

Briggs & Stratton 391462

Gear-Starter

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 3 left!

0

801

Briggs & Stratton 392061

Drive End Cap Assy.
(Superseded to 394857)

Note: Obtain parts from www.briggsandstratton.com

$56.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 390846

End Cap Assembly-Commutator (Incl. Ref. #311)

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 391167

Housing Assembly

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

896

Briggs & Stratton 93754

Pin
(Superseded to 94192)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0
