38150 (826) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

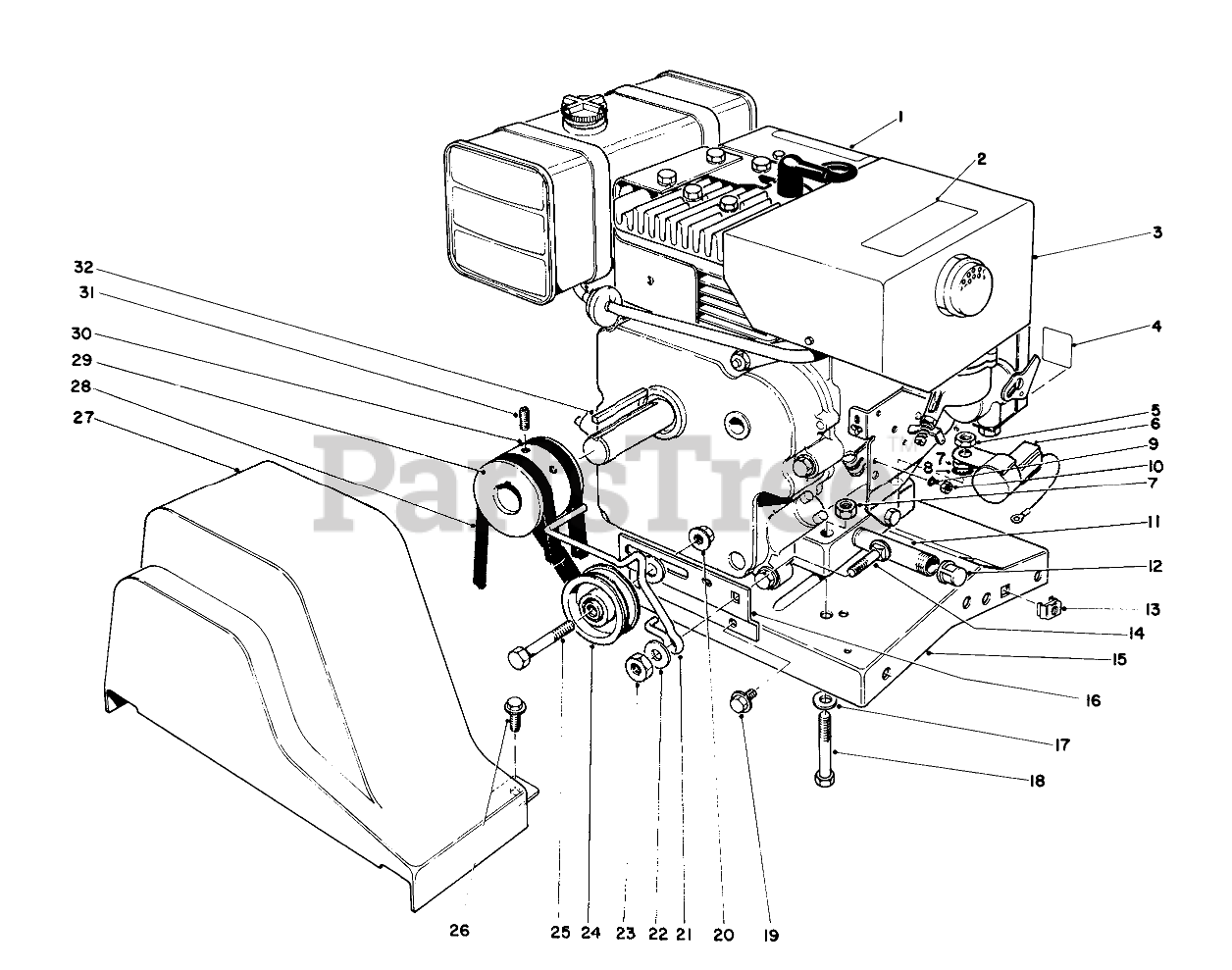

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 41-8540

Decal-Hazard
(Superseded to 54-9750)

$

$

Not available

2

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

3

Toro 221-600

Engine

$

$

Currently unavailable

4

Toro 29-6400

CHOKE DECAL

$

$

Not available

5

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

6

Toro 41-8610

INTERLOCK MODULE

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

10

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

11

Toro 289-20

NIPPLE-PIPE

$

$

Not available

12

Toro 2884

Pipe Cap

$

$

Currently unavailable

13

Toro 3290-433

RETAINER NUT

$

$

Not available

14

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

15

Toro 43-7510

Engine Base

$

$

Not available

16

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

19

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

20

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Toro 41-8590

BELT GUIDE

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

24

Toro 244-63

PULLEY B

$

$

Not available

25

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

27

Toro 17-6550

BELT GUARD

$

$

Not available

28

Toro 26-9670

V-BELT

$28.99

$

In Stock, Qty 9

0

29

Toro 21-4100

ENGINE PULLEY

$

$

Not available

30

Toro 17-6540

V-BELT

$29.99

$

In Stock, only 4 left!

0

31

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

32

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
