381451HBVE (84393) - Snapper 38" Rear-Engine Riding Mower, 14hp Frame Assembly (Part 1) Parts Diagram

38" Rear-Engine Riding Mower, 14hp

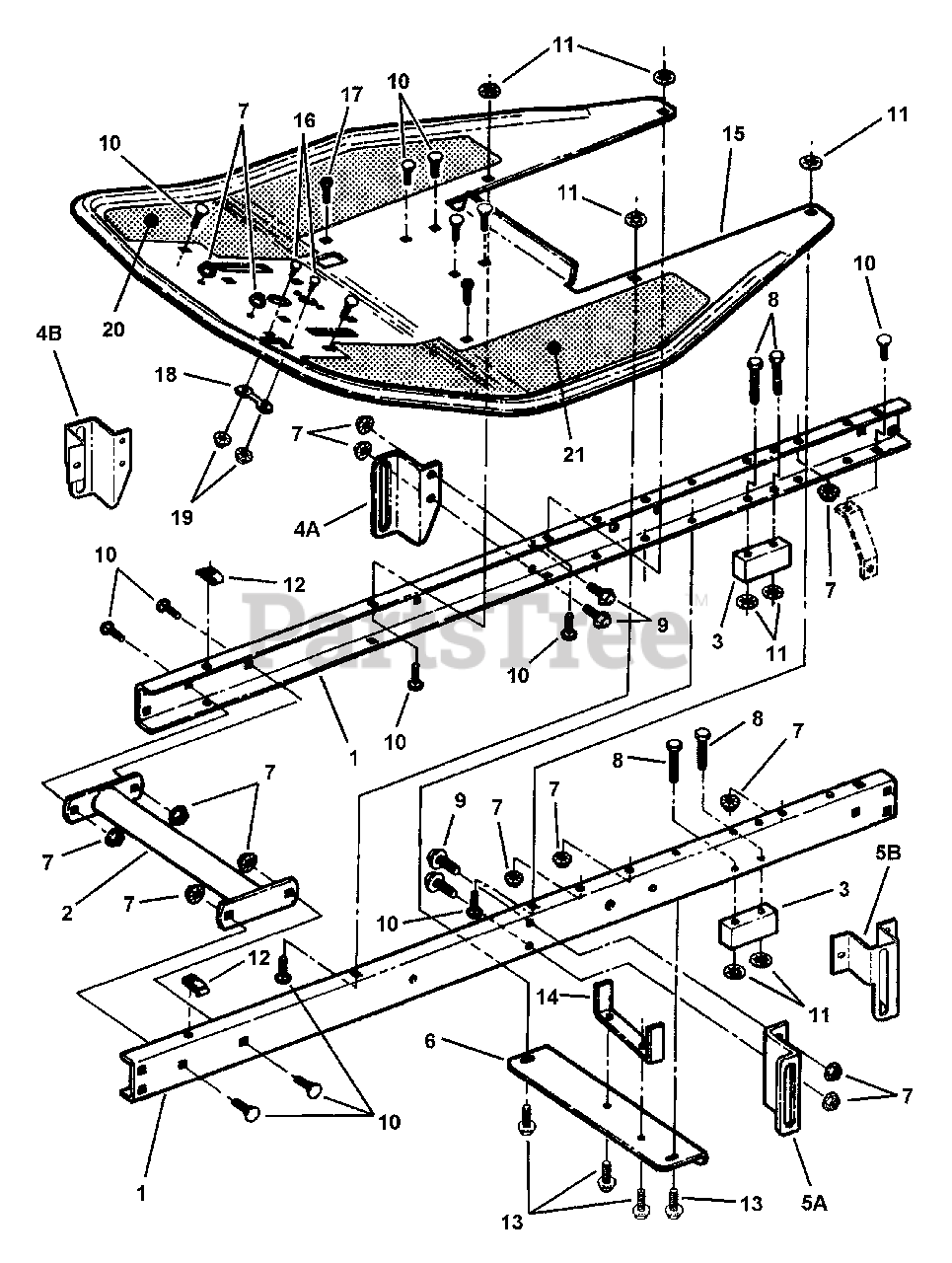

Frame Assembly (Part 1) Parts Diagram

  • Title

1

Snapper 7045299

FRAME RAIL, L.H. & R.H.
(Superseded to 7045299YP)

$68.99

$

In Stock, only 1 left!

0

2

Snapper 7046725

WELDMENT, Frame Reinforcement Tube

$

$

Not available

3

Snapper 7041853

SPACER BLOCK, Hydro
(Superseded to 7041853YP)

$55.99

$

Usually ships in 2-12 days

0

4A

Snapper 7074219

GUIDE, Deck R.H.
(Superseded to 7074219YP)

Note: (Was 58288)

$26.99

$

Usually ships in 2-12 days

0

4B

Snapper 7074219

GUIDE, Deck R.H.
(Superseded to 7074219YP)

$26.99

$

Usually ships in 2-12 days

0

5A

Snapper 7074220

GUIDE, Deck L.H.
(Superseded to 7074220YP)

Note: (Was 58289)

$26.99

$

Usually ships in 2-12 days

0

5B

Snapper 7074220

GUIDE, Deck R.H.
(Superseded to 7074220YP)

$26.99

$

Usually ships in 2-12 days

0

6

Snapper 7058257

CHANNEL, Belt Finger

$

$

Not available

7

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7091058

SCREW, 5/16-18 x 3-3/4" Hex Head Cap
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, Grade 5
(Superseded to 703823)

Note: (Was 91510)

$3.99

$

In Stock, Qty 5

0

10

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

11

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7016116

NUT, 5/16" Push On
(Superseded to 7016116YP)

$2.49

$

In Stock, Qty 10

0

13

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 7058366

BELT GUIDE, Rear
(Superseded to 7058366YP)

$26.99

$

Usually ships in 2-12 days

0

15

Snapper 7045336

FLOOR PAN

$

$

Not available

16

Snapper 7090530

BOLT, #10-24 x 1/2" Short Neck Carriage, Grade 2
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

18

Snapper 7072124

STOP, Park Brake
(Superseded to 7072124YP)

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7072217

FLOOR MAT - R.H.

$

$

Not available

21

Snapper 7072172

FLOOR MAT - L.H.

$

$

Not available
