381451HBVE (84393) - Snapper 38" Rear-Engine Riding Mower, 14hp Engine Plate Assembly Parts Diagram

38" Rear-Engine Riding Mower, 14hp

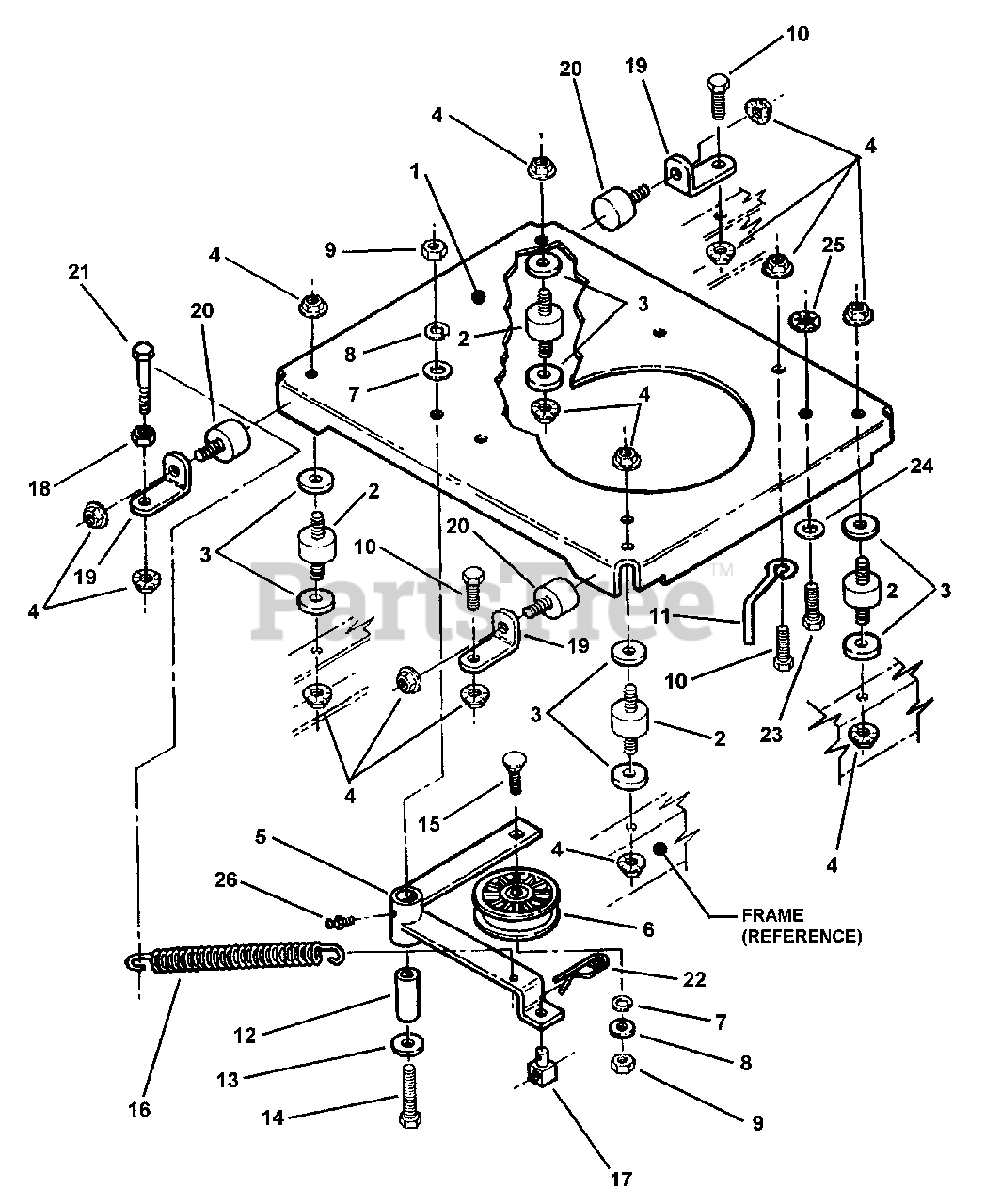

Engine Plate Assembly Parts Diagram

  • Title

1

Snapper 7045306

PLATE, Engine

$

$

Not available

2

Snapper 7072362

ISOLATOR
(Superseded to 7072362YP)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 7091807

WASHER, 7/16" I.D. x 1-3/8" O.D. x 1/4" Thick Flat
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: (Was 90613)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7047079

WELDMENT, Idler/Brake
(Superseded to 7047079YP)

Note: (Incl. Item 26)

$128.99

$

In Stock, only 1 left!

0

6

Snapper 7023954

PULLEY, 3.47 O.D. Flat Idler
(Superseded to 7023954YP)

$

$

Not available

7

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: (Was 91514)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7091320

WASHER, .38 I.D. x .68 O.D. x .09 Thick Flat
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091891

BOLT, 3/8-16 x 1" Hex Flange Lock, Grade 5
(Superseded to 7091891YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7072198

GUIDE, Engine Belt
(Superseded to 7072198YP)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7071698

SPACER, Pivot Collar

$27.99

$

Usually ships in 2-12 days

0

13

Snapper 7017415

WASHER, Special

$

$

Not available

14

Snapper 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7091810

BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Grade 5
(Superseded to 703879)

Note: (Was 91158)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7029272

SPRING, Primary Idler
(Superseded to 7029272SM)

$14.99

$

In Stock, only 1 left!

0

17

Snapper 7024586

SWIVEL, 3/8 Brake Link
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7090665

NUT, 3/8-16 Hex Jam
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

19

Snapper 7072363

BRACE, Snubber Mount
(Superseded to 7072363YP)

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 7072361

MOUNT, Snubber

$

$

Not available

21

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

Note: (Was 90655)

$4.99

$

In Stock, only 1 left!

0

22

Snapper 7091594

COTTER-PIN, 1/16" x 1.42" Self-Locking
(Superseded to 7091594SM)

Note: (Was 24874)

$2.99

$

In Stock, only 2 left!

0

23

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

24

Snapper 7090188

WASHER, .344 I.D. x 11/16 O.D. x 1/16" Thick Flat
(Superseded to 703350)

Note: (Was 91296)

$4.49

$

In Stock, only 1 left!

0

25

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7014669

FITTING, 3/16 Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0
