381451HBVE (84393) - Snapper 38" Rear-Engine Riding Mower, 14hp Center Spindle Assembly Parts Diagram

38" Rear-Engine Riding Mower, 14hp

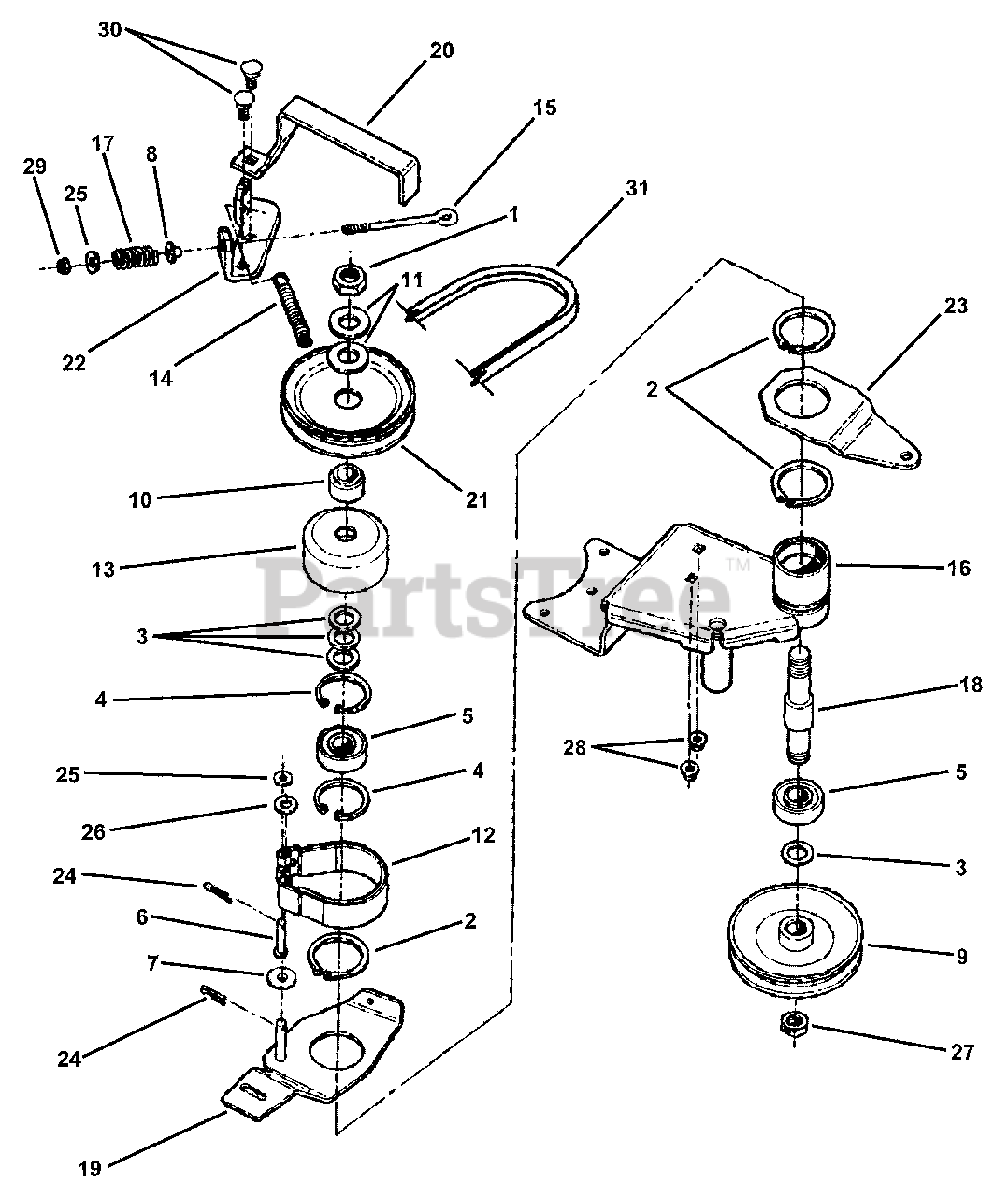

Center Spindle Assembly Parts Diagram

  • Title

1

Snapper 7074467

NUT, 3/4-16 Hex Flange Jam, Grade 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

2

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

3

Snapper 7010935

WASHER, 3/4" I.D. x 1-1/8" O.D. x 1/16" Thick Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7012491

RING, 1.75 External Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7014304

WELD PIN, .37 x 2"
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7014314

SPACER, .31 I.D. x .39 O.D. x 1" Nylon
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7014343

BUSHING, .27 I.D. x .35 O.D. x .4 Flanged
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7014532

PULLEY, 5.0 O.D.
(Superseded to 7014532YP)

$53.99

$

In Stock, only 3 left!

0

10

Snapper 7015290

PULLEY HUB, PM
(Superseded to 7015290YP)

$6.49

$

In Stock, Qty 10

0

11

Snapper 7032027

WASHER, 3/4" I.D. x 1-1/2" O.D. x 1/16" Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

12

Snapper 7034852

BAND, Brake
(Superseded to 7600133YP)

Note: (Was 63211)

$41.99

$

In Stock, Qty 7

0

13

Snapper 7035378

DRUM, 17mm Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

14

Snapper 7036521

SPRING
(Superseded to 7036521YP)

$7.49

$

In Stock, Qty 6

0

15

Snapper 7026677

EYE-BOLT, 1/4-20 Thread
(Superseded to 7026677YP)

$14.99

$

In Stock, only 2 left!

0

16

Snapper 7046761

WELDMENT, Spindle Bracket/Housing
(Superseded to 7046761YP)

$162.99

$

Usually ships in 2-12 days

0

17

Snapper 7046782

SPRING, Rectangle Wire Die
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

18

Snapper 7047229

SPINDLE, Center
(Superseded to 7047229YP)

$35.99

$

Usually ships in 2-12 days

0

19

Snapper 7058235

WELDMENT, Idler Arm

Note: (Attach blade engagement cable to hole)

$

$

Not available

20

Snapper 7058367

BELT GUIDE, Front

$

$

Not available

21

Snapper 7072145

PULLEY, Jack Shaft
(Superseded to 7072145YP)

$26.99

$

Usually ships in 2-12 days

0

22

Snapper 7072146

BRACKET, Brake Cable
(Superseded to 7072146YP)

$30.99

$

In Stock, only 4 left!

0

23

Snapper 7072147

IDLER ARM
(Superseded to 7072147YP)

$29.99

$

Usually ships in 2-12 days

0

24

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: (Was 90037)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: (Was 90055)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: (Was 90585)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: (Was 90761)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

31

Snapper 7071991

BELT, Engine to Deck
(Superseded to 7071991YP)

$49.99

$

In Stock, Qty 5
