381450HBVE (84270) - Snapper 38" Rear-Engine Riding Mower, 14hp Frame Assembly (Part 2) Parts Diagram

38" Rear-Engine Riding Mower, 14hp

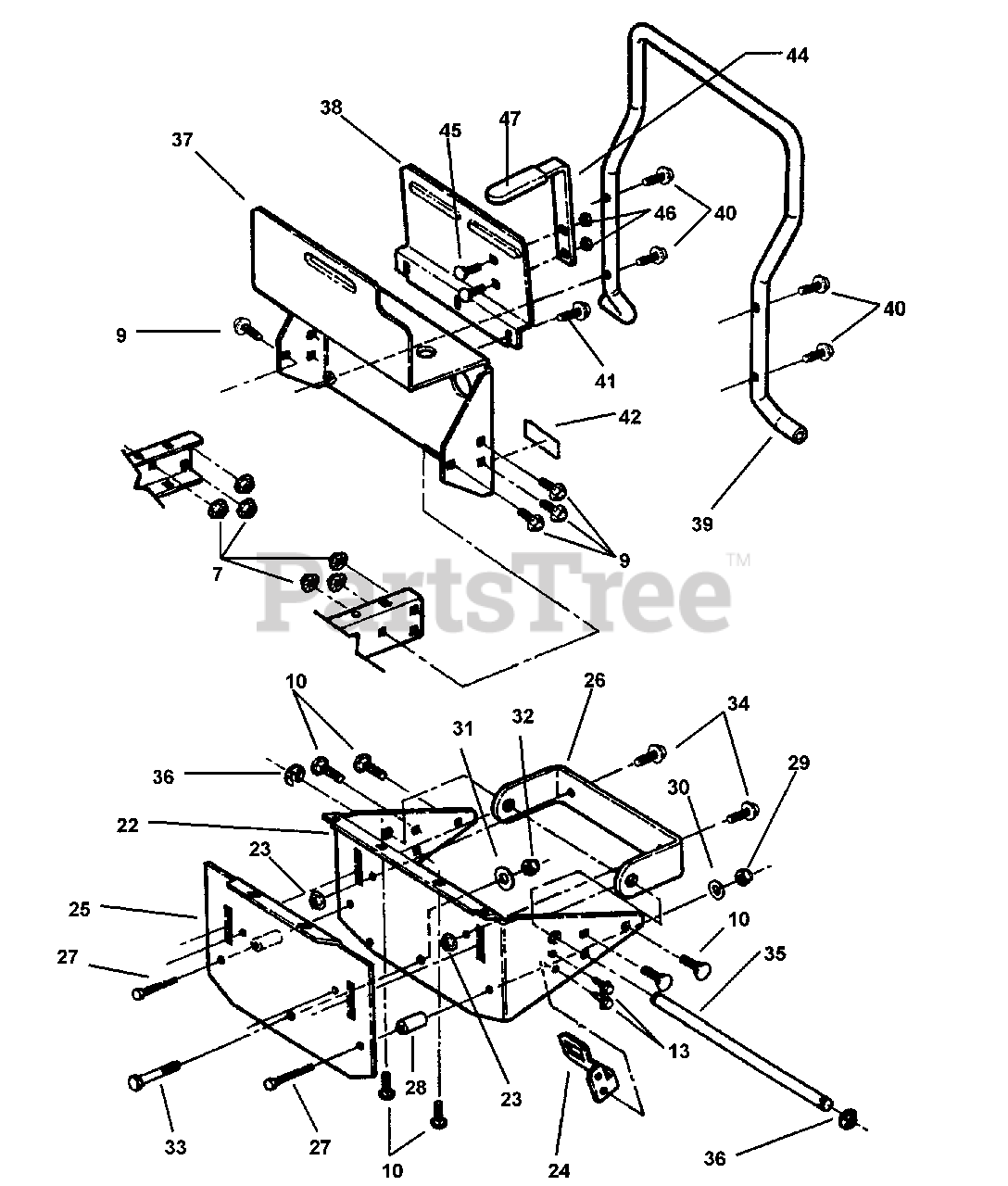

Frame Assembly (Part 2) Parts Diagram

  • Title

7

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, Grade 5
(Superseded to 703823)

Note: (Was 91510)

$3.99

$

In Stock, Qty 5

0

10

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7045309

ATTACHMENT PLATE, Front Frame
(Superseded to 7045309YP)

$60.99

$

Usually ships in 2-12 days

0

23

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: (Was 90613)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7034724

BRACKET, Switch
(Superseded to 7034724YP)

$19.99

$

Usually ships in 2-12 days

0

25

Snapper 7045324

ATTACHMENT PLATE, Front Axle

$

$

Currently unavailable

26

Snapper 7071925

BRACKET, Attachments

$

$

Currently unavailable

27

Snapper 7091557

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, Grade 5
(Superseded to 703133)

Note: (Was 90795)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7028666

SPACER, .19 I.D. x .5 O.D. x 1.8 Long

$

$

Not available

29

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: (Was 76979)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7090250

WASHER, 1/2" SAE Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7091121

NUT, 1/2-13 Hex Nyloc

$

$

Not available

33

Snapper 7091821

SCREW, 1/2-13 x 3" Hex Head Cap, Grade 5
(Superseded to 7091821YP)

Note: (Was 91694)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: (Was 90612)

$4.49

$

In Stock, Qty 6

0

35

Snapper 7047222

SHAFT, Forward/Reverse/Brake Pedals
(Superseded to 7047222YP)

Note: (See "Brake & Forward/Reverse Control Assemblies" item 1.)

$23.99

$

Usually ships in 2-12 days

0

36

Snapper 7071953

RING, External Retaining (5/8" Shaft)
(Superseded to 7071953YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7045301

ATTACHMENT PLATE, Rear Frame
(Superseded to 7045301YP)

$125.99

$

Usually ships in 2-12 days

0

38

Snapper 7058133

BRACKET, Fuel Tank

$

$

Not available

39

Snapper 7033587

BUMPER, Rear
(Superseded to 7033587YP)

$149.99

$

In Stock, only 1 left!

0

40

Snapper 7091270

SCREW, 5/16-18 x 1-3/4" Hex Washer Self-Tap
(Superseded to 7091270YP)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

42

Snapper 7072420

DECAL, Roll Release

$

$

Not available

44

Snapper 7072533

BRACKET, Fuel Tank
(Superseded to 7072533YP)

Note: (See "Engine And Fuel Tank Assemblies" items 28 & 29.)

$15.99

$

Usually ships in 2-12 days

0

45

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, Grade 2
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

47

Snapper 7014755

COVER, Vinyl
(Superseded to 7014755YP)

$

$

Not available
