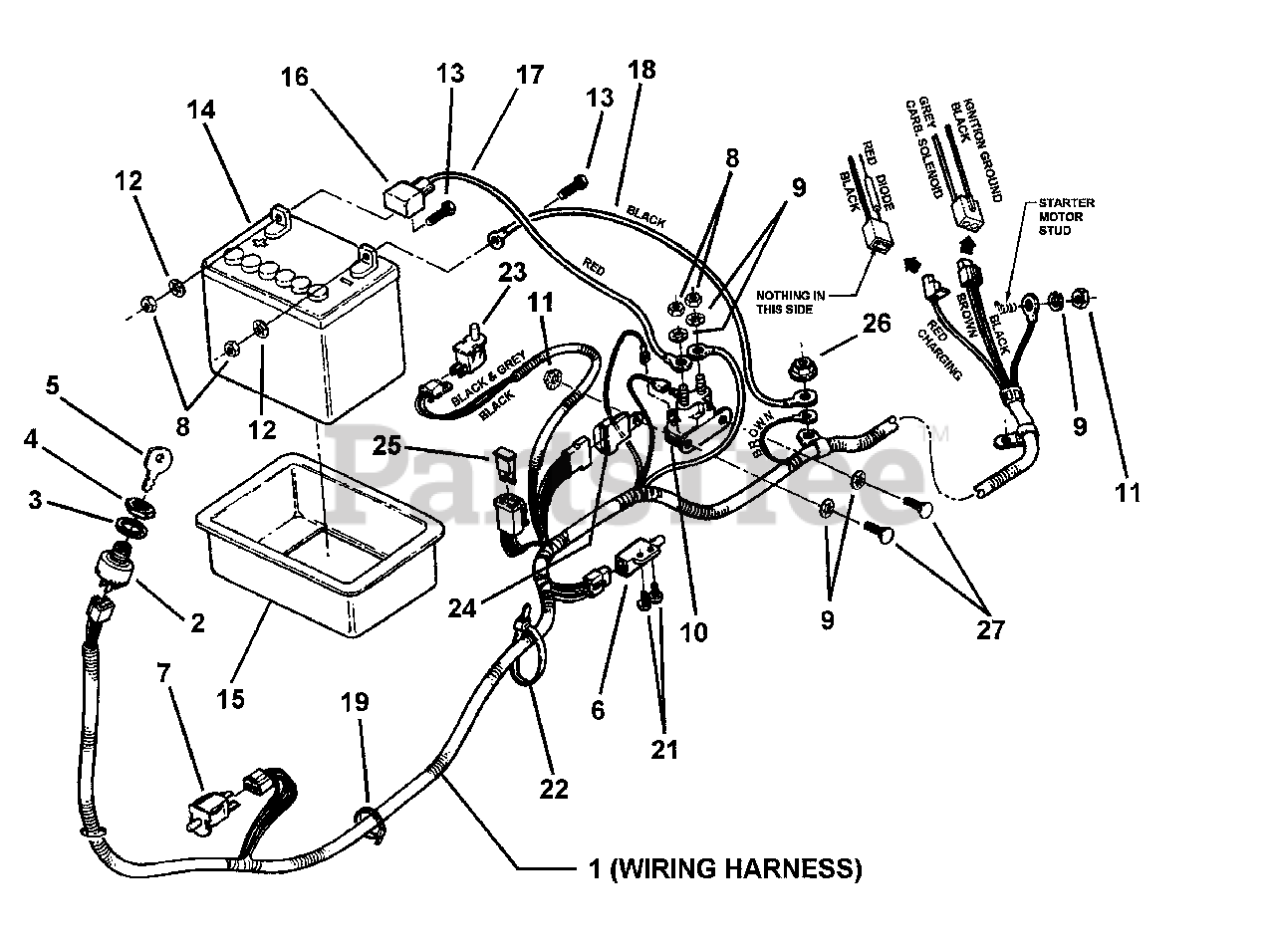

381450HBVE (84270) - Snapper 38" Rear-Engine Riding Mower, 14hp Electrical Components Parts Diagram

38" Rear-Engine Riding Mower, 14hp

Electrical Components Parts Diagram

  • Title

1

Snapper 7059470

WIRING HARNESS

$

$

Not available

2

Snapper 7026343

SWITCH, Ignition
(Superseded to 7026343SM)

$38.99

$

In Stock, Qty 18

0

3

Snapper 7091546

WASHER, 5/8" Int. Tooth Lock
(Superseded to 1960547SM)

Note: (Was 90880)

$4.49

$

In Stock, only 4 left!

0

4

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7011138

KEY, Switch
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

6

Snapper 7023355

SWITCH, DPDT NC/NO
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

7

Snapper 7022886

SWITCH, DP NO/NC Snap-In
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Snapper 7091576

NUT, 1 /4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7090053

WASHER, 1 /4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

10

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: (Was 18817)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7091584

NUT, 1 /4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

12

Snapper 7012485

RETAINER, 1 /4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090072

SCREW, 1 /4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

Note: (Was 27172)

$4.49

$

In Stock, Qty 18

0

14

Snapper 7060753

BATTERY, No-Spill, 7 Plate, 210 CCA, Dry Charge Type
(Superseded to 7060753YP)

$

$

Not available

15

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

16

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

17

Snapper 7019326

CABLE, Positive (+ ), Red, 17"
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

18

Snapper 7028027

CABLE, Negative (-), Black, 14"
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 7

0

19

Snapper 7012080

CABLE TIE, 7" Long
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

22

Snapper 7024649

WIRE TIE, Black Nylon, 11"
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

23

Snapper 7023354

SWITCH, Seat, NC (Grey)
(Superseded to 7023354YP)

Note: (Was 17590)

$12.99

$

In Stock, Qty 20+

0

24

Snapper 7063064

INTERLOCK, Module
(Superseded to 7063064YP)

Note: (Was 28606)

$

$

Not available

25

Snapper 7023653

FUSE, 20A
(Superseded to 7023653YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7091297

NUT, 5/16-24 Hex, Gr. 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7091530

BOLT, 1 /4-20 x 3/4" Short Neck Carriage, Gr. 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 3 left!

0
