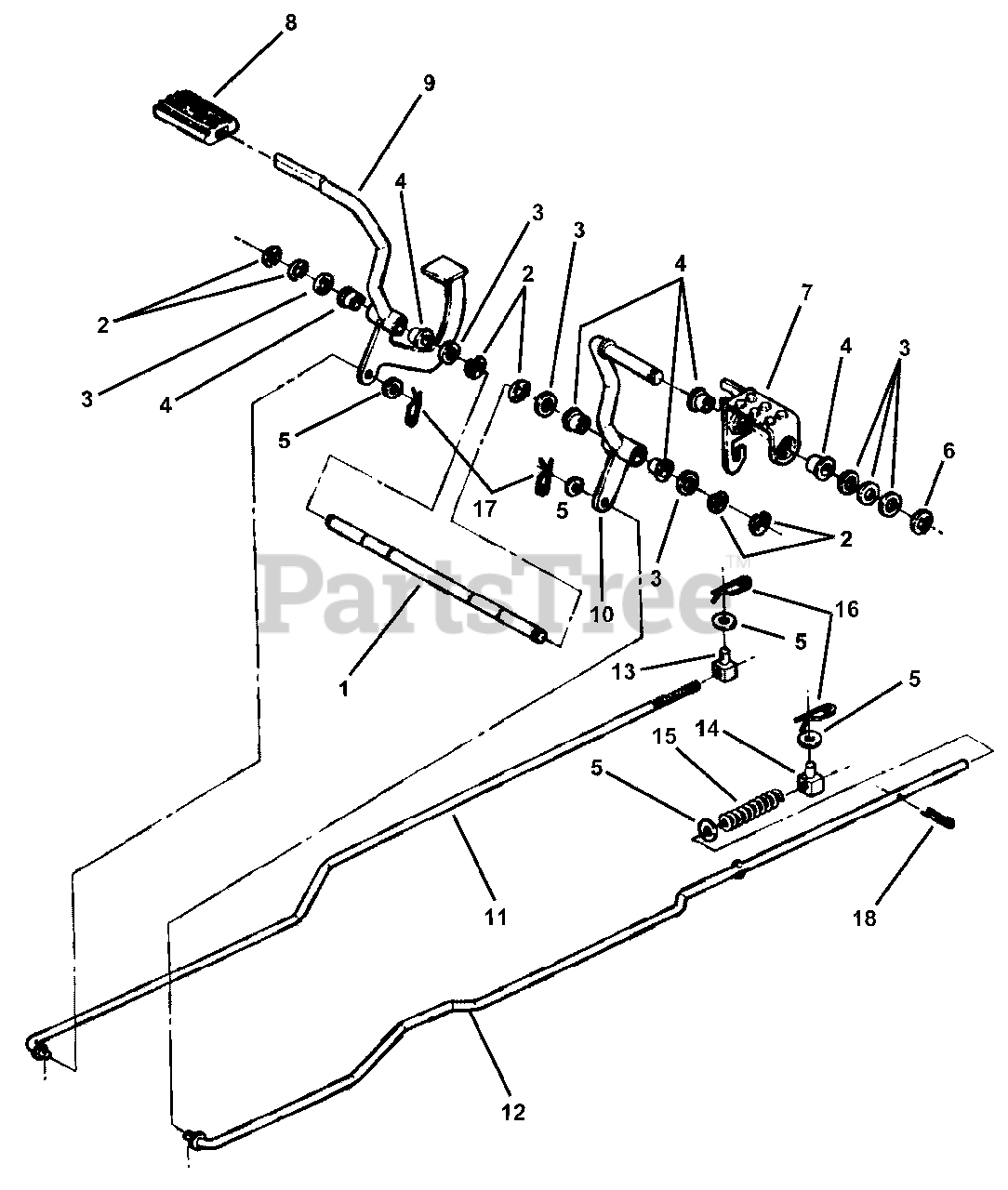

  • Title

1

Snapper 7047222

SHAFT, Forward/Reverse/Brake Pedals
(Superseded to 7047222YP)

$23.99

$

Usually ships in 2-12 days

0

2

Snapper 7071953

RING, External Retaining (5/8" Shaft)
(Superseded to 7071953YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Thick, Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: (Was 91514)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

7

Snapper 7047120

PEDAL

$

$

Not available

8

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

9

Snapper 7047220

WELDMENT, Forward/Reverse

$

$

Not available

10

Snapper 7047221

WELDMENT, Brake

$

$

Not available

11

Snapper 7047005

ROD, Accelerator
(Superseded to 7047005YP)

$19.99

$

Usually ships in 2-12 days

0

12

Snapper 7047142

ROD, Brake
(Superseded to 7047142YP)

$85.99

$

In Stock, only 1 left!

0

13

Snapper 7024607

SWIVEL, Brake Link- PM
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

14

Snapper 7024586

SWIVEL, Brake Link- PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

15

Snapper 7074511

SPRING, Brake Compression
(Superseded to 7074511SM)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 7091594

COTTER-PIN, 1/16" x 1.42" Self-Locking
(Superseded to 7091594SM)

Note: (Was 24874)

$2.99

$

In Stock, only 2 left!

0

17

Snapper 7091593

PIN, 3/8" Self-Lock Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

18

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: (Was 90555)

$3.99

$

In Stock, Qty 20+
