38130 (S-200) - Toro Snow Thrower (SN: 001000001 - 001000350) (1981) ENGINE ASSEMBLY (MODEL 38130) Parts Diagram

Snow Thrower

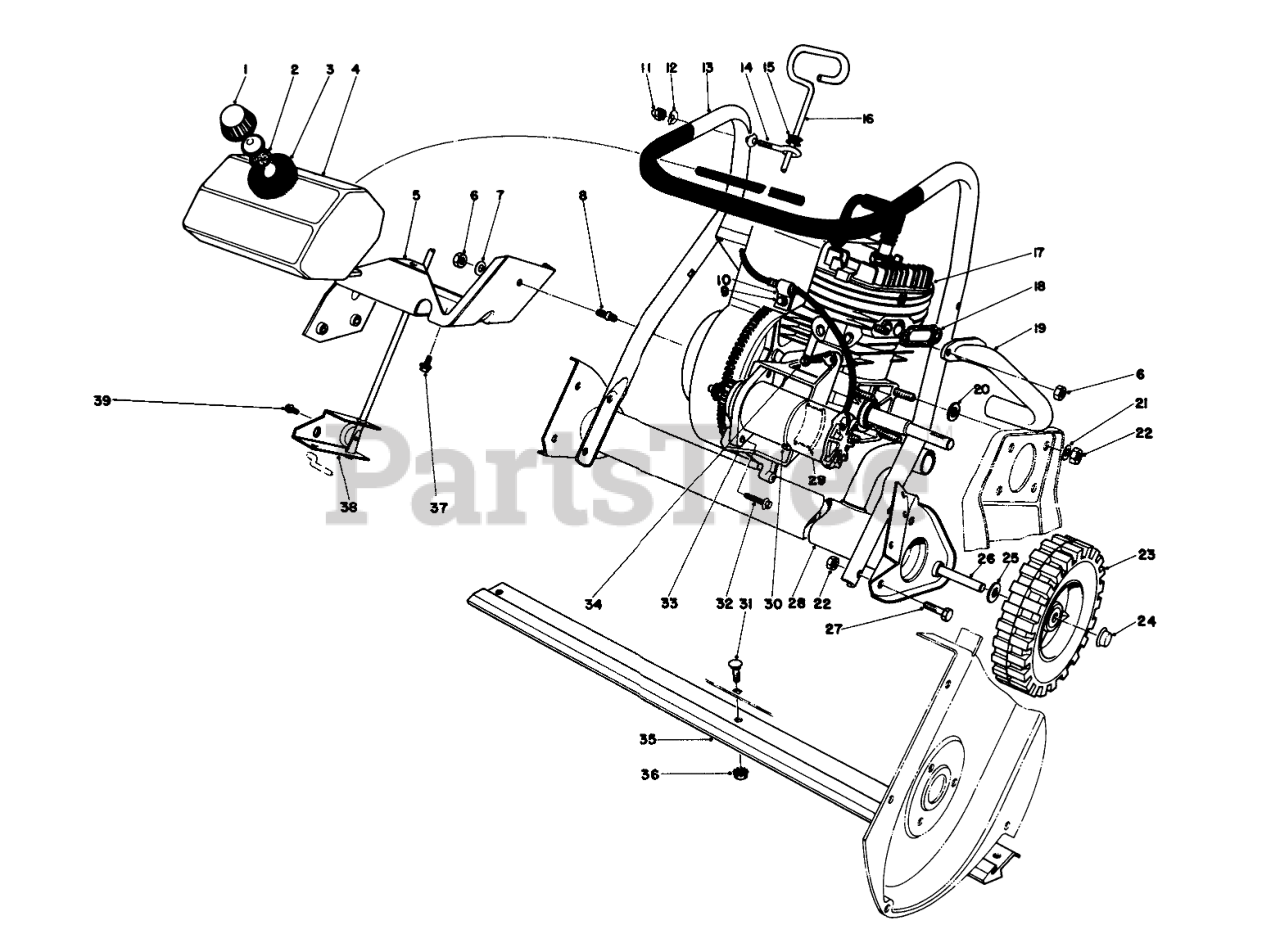

ENGINE ASSEMBLY (MODEL 38130) Parts Diagram

  • Title

1

Toro 42-0680

Gas Cap (Incl. Ref. #2)

$

$

Not available

2

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

3

Toro 25-1610

FOAM PAD

$

$

Not available

4

Toro 39-8670

GAS TANK

$

$

Not available

5

Toro 39-0860

Rear Support Engine

$

$

Not available

6

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

7

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

8

Toro 38-8710

STUD

$

$

Not available

9

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

10

Toro 2412-65

CABLE CLAMP

$

$

Not available

11

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

12

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

13

Toro 33-2120

Lower Handle
(Superseded to 49-1390)

$129.99

$

Usually ships in 3-6 days

0

14

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

15

Toro 237-73

GROMMET

$

$

Not available

16

Toro 39-0850

Rod-Van Adjustment
(Superseded to 49-1600)

$

$

Not available

17

Toro 221-558

Engine

$

$

Currently unavailable

Toro 221-628

Engine

Note: Not illustrated

$

$

Currently unavailable

18

Toro 23-3810

EXHAUST GASKET

$

$

Not available

19

Toro 41-8240

Exhaust Pipe
(Superseded to 52-7200)

$

$

Not available

20

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

24

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

26

Toro 27-0060

AXLE

$

$

Not available

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 26-6550

EXHAUST MUFFLER ASM

$411.99

$

Usually ships in 3-6 days

0

29

Toro 28-9120

RR MOTOR SUPPORT

$

$

Not available

30

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

31

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

32

Toro 32144-26

SCREW-FLOW, TAPTITE

$

$

Not available

33

Toro 28-9160

Bracket-Motor Mount
(Superseded to 51-2990)

$

$

Not available

34

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

35

Toro 23-3170

SCRAPER

$31.99

$

In Stock, Qty 9

0

36

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

37

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

38

Toro 39-0840

VANE ADJ BRKT

$

$

Not available

39

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

Toro 8-7279

Loose Parts

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
