38120 (S-200) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) SHROUD & HANDLE ASSEMBLY (MODEL 38130) Parts Diagram

Snow Thrower

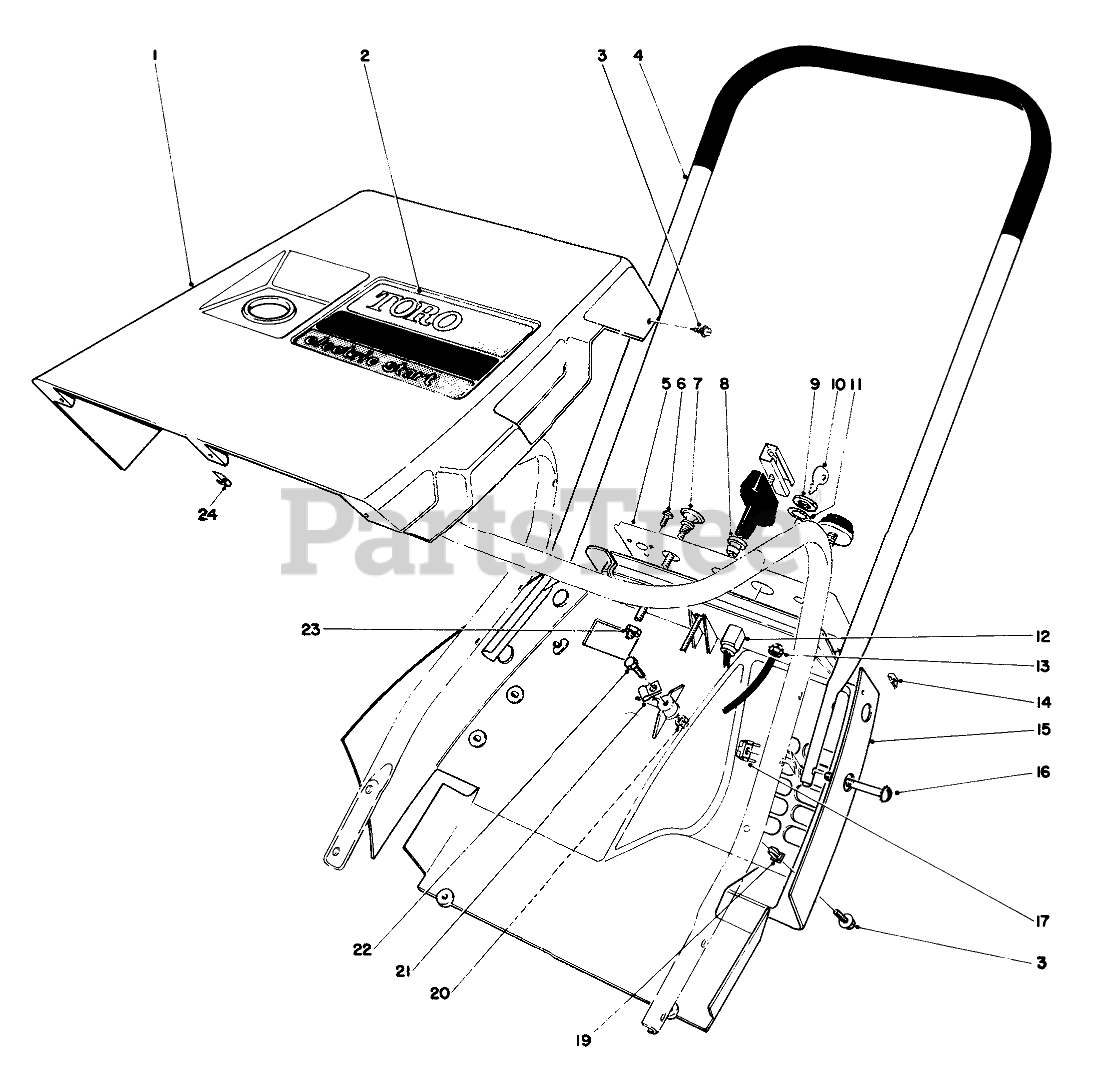

SHROUD & HANDLE ASSEMBLY (MODEL 38130) Parts Diagram

  • Title

1

Toro 29-5510

Upper Shroud

$

$

Not available

2

Toro 37-1260

Decal-Toro

$

$

Not available

3

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0

4

Toro 234260

Upper Handle

$

$

Currently unavailable

5

Toro 29-6020

Decal-Control Panel
(Superseded to 56-2650)

$

$

Not available

6

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

7

Toro 25-6410

Choke Cable

$

$

Not available

8

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

10

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

11

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

12

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, Qty 11

0

13

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

14

Toro 3290-171

NUT-TYPE J

$6.49

$

In Stock, only 3 left!

0

15

Toro 29-5520

LOWER SHROUD

$

$

Not available

16

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

17

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

19

Toro 3290-420

Push Nut
(Superseded to 3290-486)

$1.49

$

In Stock, Qty 8

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 2412-21

3/16 SUPPORT

$

$

Not available

22

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

23

Toro 3290-385

PAL NUT/CHOKE CNTRL

$

$

Not available
