38120 (S-200) - Toro Snow Thrower (SN: 001000001 - 001000350) (1981) ENGINE ASSEMBLY (MODEL 38120) Parts Diagram

Snow Thrower

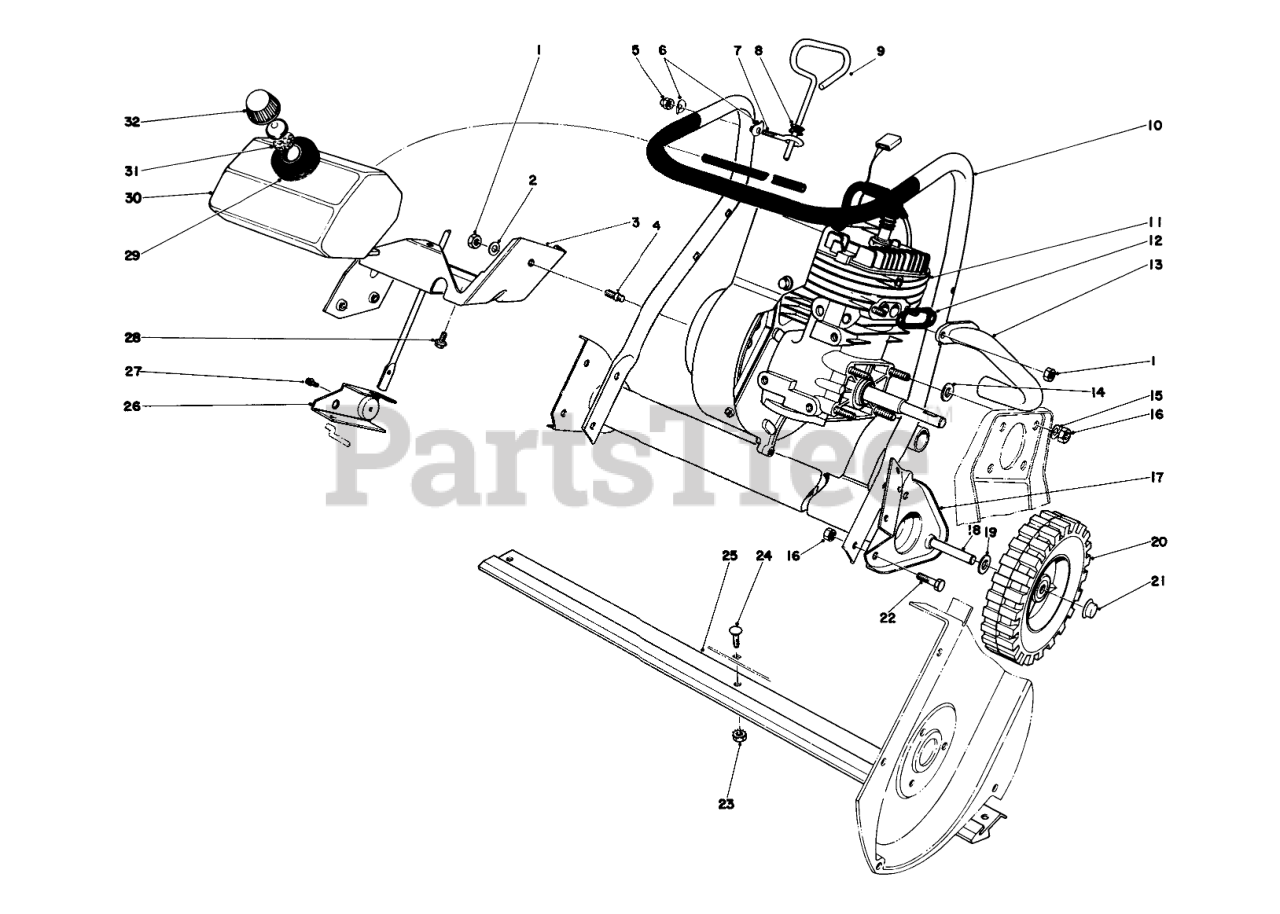

ENGINE ASSEMBLY (MODEL 38120) Parts Diagram

  • Title
1

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

2

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

3

Toro 39-0860

Rear Support Engine

$

$

Not available

4

$

$

Not available

5

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

6

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

7

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

8

Toro 237-73

GROMMET

$

$

Not available

9

Toro 39-0850

Rod-Van Adjustment
(Superseded to 49-1600)

$

$

Not available

10

Toro 33-2120

Lower Handle
(Superseded to 49-1390)

$110.99

$

Usually ships in 3-6 days

0

11

Toro 221-567

Engine

$

$

Currently unavailable

Toro 221-627

Engine

Note: Not illustrated

$

$

Currently unavailable

12

Toro 23-3810

EXHAUST GASKET

$

$

Not available

13

Toro 41-8240

Exhaust Pipe
(Superseded to 52-7200)

$

$

Not available

14

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Toro 26-6550

EXHAUST MUFFLER ASM

$362.99

$

Usually ships in 3-6 days

0

18

$61.99

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 7

0

21

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 23-3170

SCRAPER

$26.99

$

In Stock, Qty 9

0

26

Toro 39-0840

VANE ADJ BRKT

$

$

Not available

27

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

28

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

29

Toro 25-1610

FOAM PAD

$

$

Not available

30

Toro 39-8670

GAS TANK

$

$

Not available

31

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

32

Toro 42-4680

Gas Cap (Incl. Ref. #31)

$

$

Currently unavailable

Toro 8-7279

Loose Parts

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
