38120 (S-200) - Toro Snow Thrower (SN: 000015001 - 000099999) (1980) SHROUD & HANDLE ASSEMBLY Parts Diagram

Snow Thrower

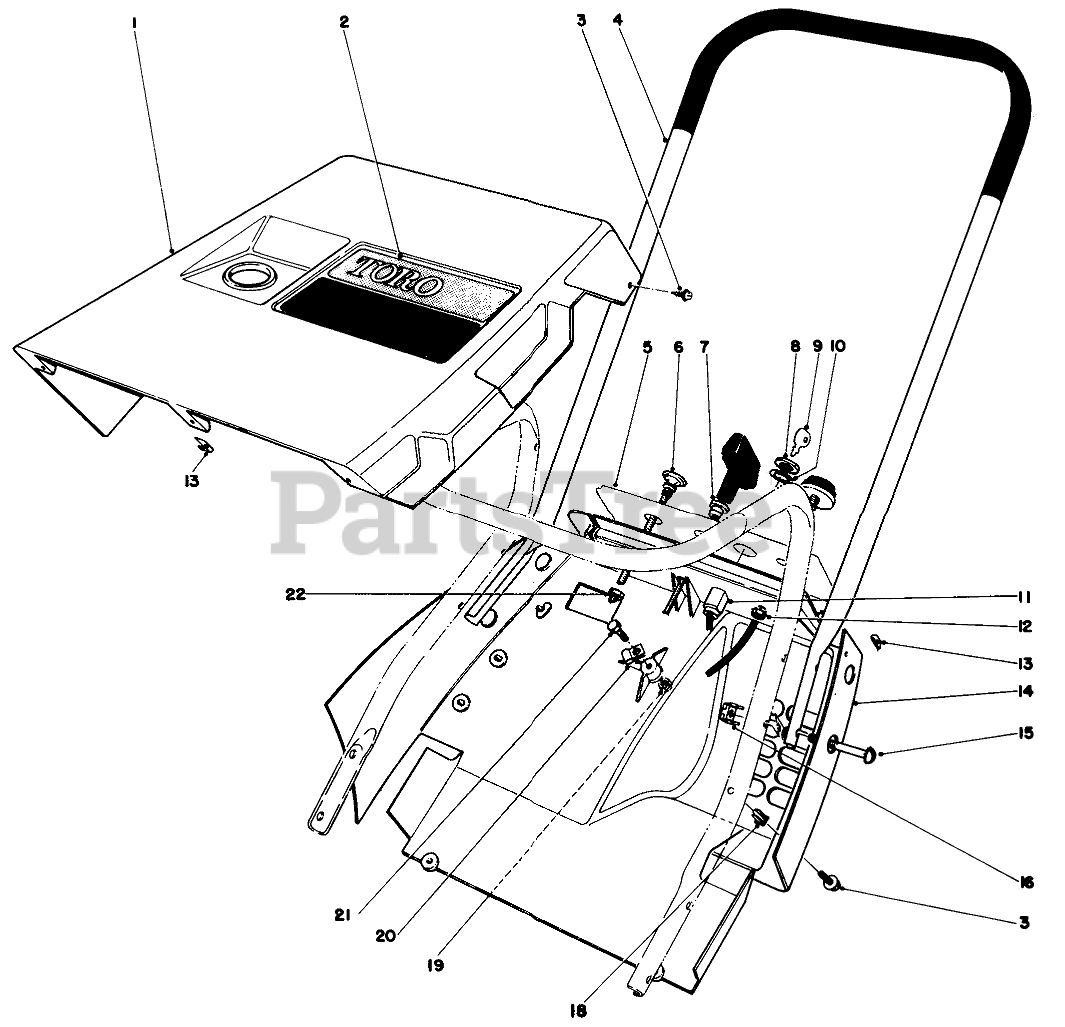

SHROUD & HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-5510

Upper Shroud

$

$

Not available

2

Toro 37-1250

Decal-Toro

$

$

Not available

3

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, only 2 left!

0

4

Toro 23-4260

Upper Handle
(Superseded to 49-1380)

$156.99

$

In Stock, Qty 8

0

5

Toro 33-2250

Decal-Control Panel

$

$

Not available

6

Toro 25-6410

Choke Cable

$

$

Not available

7

Toro 23-7470

GUIDE-ROPE, STARTER

$24.99

$

Usually ships in 3-6 days

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 7

0

9

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 15

0

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 18

0

11

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, Qty 6

0

12

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 5

0

13

Toro 3290-171

NUT-TYPE J

$6.99

$

In Stock, only 3 left!

0

14

Toro 29-5520

LOWER SHROUD

$

$

Not available

15

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

16

Toro 3290-225

TINNERMAN NUT

$10.99

$

In Stock, only 4 left!

0

18

Toro 3290-420

Push Nut
(Superseded to 3290-486)

$1.49

$

In Stock, Qty 8

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 2412-21

3/16 SUPPORT

$

$

Not available

21

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

22

Toro 3290-385

PAL NUT/CHOKE CNTRL

$

$

Not available
