38116 (CR-20) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) STARTER MOTOR & SWITCH ASSEMBLY Parts Diagram

Snow Thrower

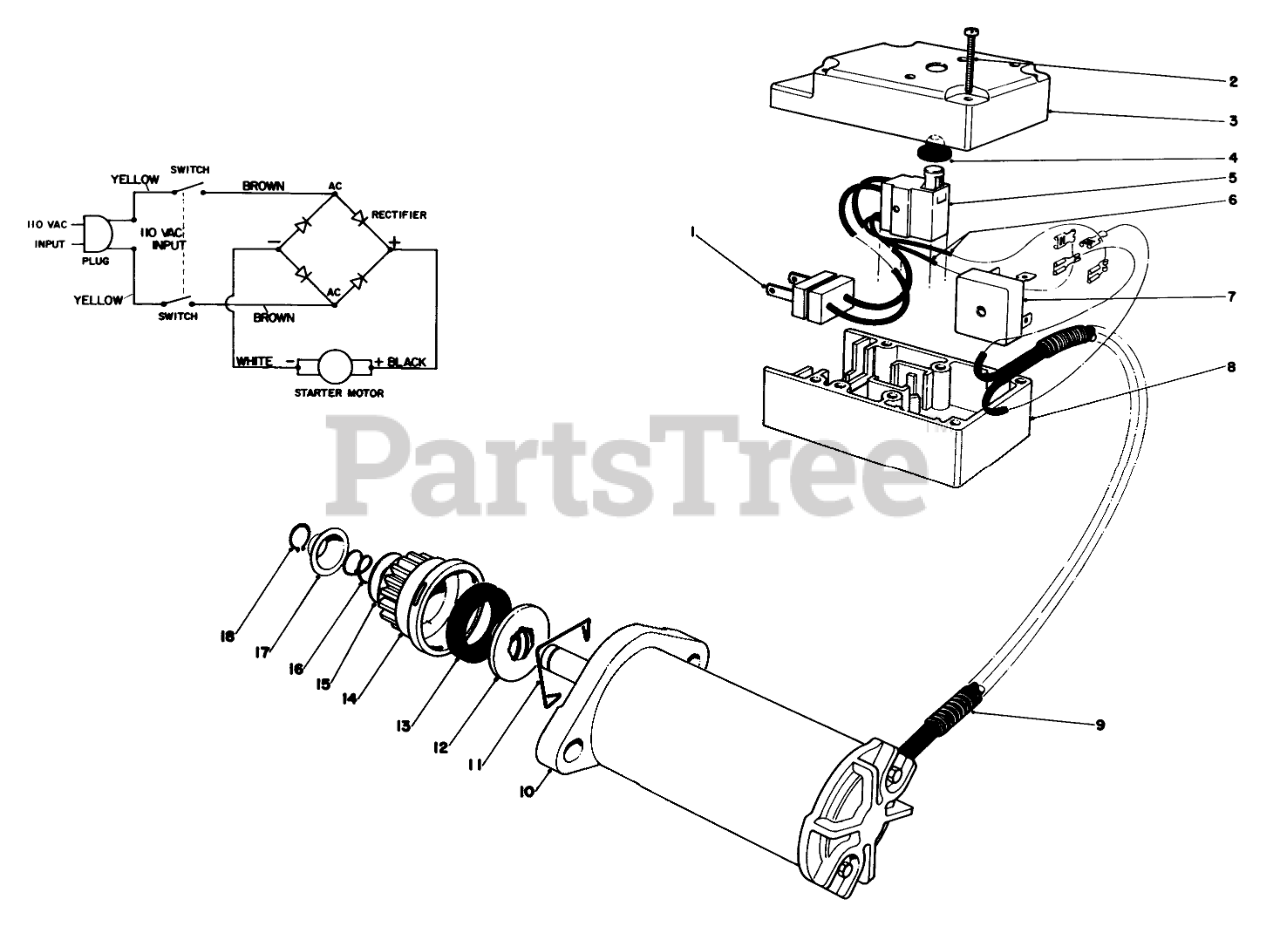

STARTER MOTOR & SWITCH ASSEMBLY Parts Diagram

  • Title
1

Toro 38-8370

SCRAPER

$

$

Not available

2

Toro 61-4830

SCREW

$

$

Not available

3

Toro 61-4840

Cap-Switch Housing
(Superseded to 66-1750)

$26.99

$

Usually ships in 3-6 days

0

4

Toro 36-8350

BOOT-SWITCH

$8.99

$

In Stock, Qty 6

0

5

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

6

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 1 left!

0

8

Toro 61-4850

Linkage-Choke
(Superseded to 66-1760)

$

$

Not available

9

Toro 33-5130

CABLE COVER

$

$

Not available

10

Starter Motor

$

$

Not available

11

Toro 5-6530

RETAINING CLIP

$7.49

$

In Stock, only 1 left!

0

12

Helix Pinion Nut

$

$

Not available

13

Toro 25-3400

RUBBER RING

$

$

Not available

14

Pinion

$

$

Not available

15

Toro 33-5570

WASHER

$

$

Not available

16

Toro 33-3230

COMP SPRING

$6.99

$

In Stock, Qty 8

0

17

Toro 33-3210

PINION STOP

$18.99

$

In Stock, Qty 7

0

18

Toro 32151-49

RET RING

$3.99

$

In Stock, Qty 9

0

Toro 28-9140

Starter Motor Assembly (Incl. Ref. #10-18)

$

$

Not available

Toro 36-5350

Pinion Assembly (Incl. Ref. #11-14)

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

$

$

Not available
