38116 (CR-20) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) LOWER FRAME ASSEMBLY Parts Diagram

Snow Thrower

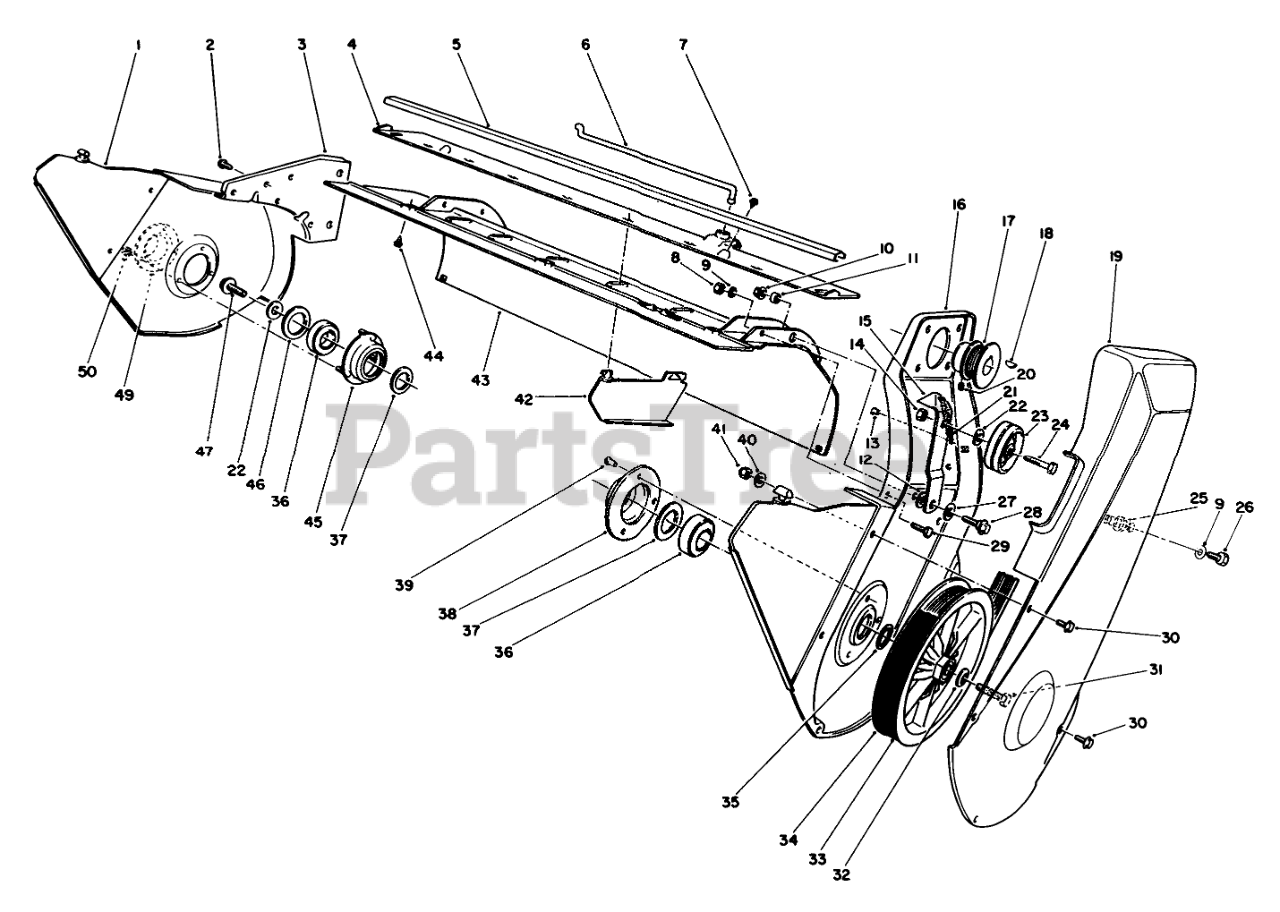

LOWER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 52-7080

OUTSIDE VANE

$7.49

$

In Stock, Qty 7

0

2

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

3

Toro 52-9100

Plate-R.H. Side
(Superseded to 52-9100-03)

$169.99

$

Usually ships in 3-6 days

0

4

Toro 41-8480

Mount-Vane
(Superseded to 13-1689)

$

$

Not available

5

Toro 63-3720

Moulding
(Superseded to 13-1689)

$

$

Not available

6

Toro 52-7090

VANE ADJ LINKAGE

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

11

Toro 51-2950

SPACER

$

$

Not available

12

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

13

Toro 29-7430

Eyelet

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 26-8990

IDLER ARM

$204.99

$

Usually ships in 3-6 days

0

16

Toro 33-2130

Plate-L.H. Side
(Superseded to 33-2130-03)

$

$

Not available

17

Toro 25-6400

Pulley

$

$

Not available

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

19

Toro 54-9940

Cover-Drive
(Superseded to 16-1349)

$53.99

$

In Stock, only 1 left!

0

20

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

21

Toro 26-9730

IDLER SPRING

$20.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 25-5880

IDLER PULLEY

$

$

Not available

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 32117-3

PLASTIC GROMMET

$0.99

$

Usually ships in 3-6 days

0

26

Toro 32104-109

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

28

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

31

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

32

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

33

Toro 25-6430

BELT - DRIVE

$26.99

$

In Stock, only 4 left!

0

34

Toro 60-9320

ROTOR PULLEY ASY

$

$

Not available

35

Toro 26-0970

WASHER

$12.99

$

Usually ships in 3-6 days

0

36

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

37

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

38

Toro 38-8620

FLANGE-BEARING

$

$

Not available

39

Toro 3292-8

RIVET

$6.49

$

Usually ships in 3-6 days

0

40

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 52-7060

CENTER VANE

$8.99

$

In Stock, Qty 20+

0

43

Toro 52-7170

HOUSING ASSEMBLY

$

$

Not available

44

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

45

Toro 52-9110

FLANGE-BEARING

$20.99

$

In Stock, Qty 5

0

46

Toro 52-7270

WASHER-RUBBER

$3.99

$

In Stock, only 3 left!

0

47

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

49

Toro 52-7290

Trough
(Superseded to 52-7290-03)

$20.99

$

Usually ships in 3-6 days

0

50

Toro 32111-14

NUT-CAP

$

$

Not available
