38110 C (CR-20 R) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) SHROUD & HANDLE ASSEMBLY Parts Diagram

Snow Thrower

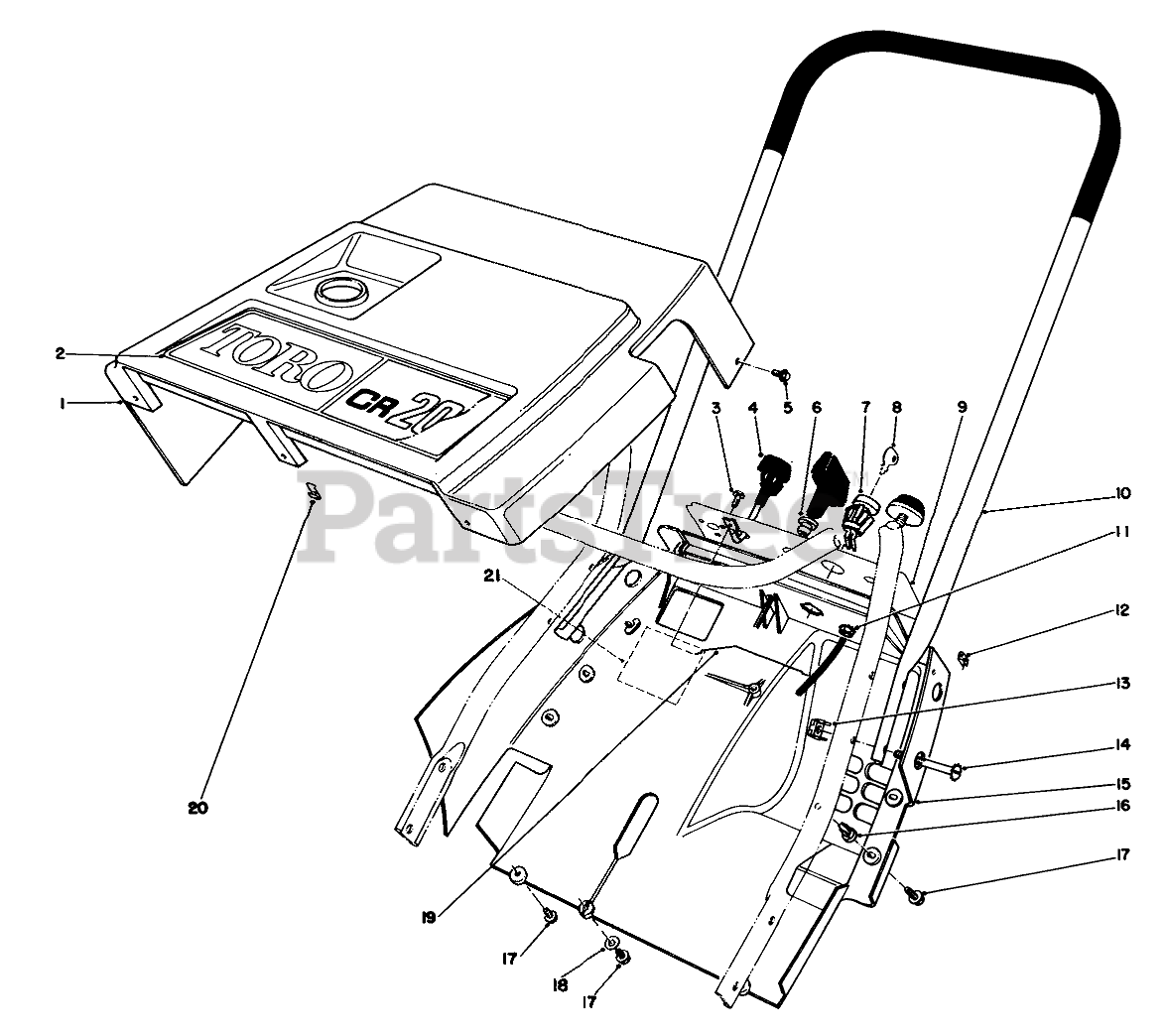

SHROUD & HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-0890

Shroud-Upper
(Superseded to 92-6030)

$

$

Not available

2

Toro 54-9980

Decal-Toro (Model 38110C)

$

$

Not available

Toro 54-9970

DECAL

$

$

Not available

3

Toro 32144-27

SCREW-PLASTITE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 39-0560

CHOKE CONTROL ASM

$36.99

$

Usually ships in 3-6 days

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

7

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

8

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

9

Toro 54-9950

Decal-Control Panel (Model 38110C)

$

$

Not available

Toro 54-9960

Decal-Control Panel (Model 38115C)
(Superseded to 56-2650)

$35.99

$

Usually ships in 3-6 days

0

10

Toro 49-1370

Handle-Upper
(Superseded to 49-1380)

$126.99

$

In Stock, Qty 8

0

11

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

12

Toro 49-1490

NUT

$3.99

$

In Stock, only 2 left!

0

13

Toro 3290-225

TINNERMAN NUT

$8.99

$

In Stock, only 4 left!

0

14

Toro 32105-11

SCREW-HEX HD SLOT
(Superseded to 108-7301)

$1.99

$

Usually ships in 3-6 days

0

15

Toro 49-1610

LOWER SHROUD

$

$

Not available

16

Toro 3290-453

Nut-Push
(Superseded to 605120)

$3.99

$

In Stock, Qty 9

0

17

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

18

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

19

Toro 39-8180

CONTROL WIRE

$54.99

$

Usually ships in 3-6 days

0

20

Toro 52-3300

NUT "U"

$6.99

$

Usually ships in 3-6 days

0

21

Toro 63-3710

DECAL - CSA

$

$

Not available
