38110 C (CR-20 R) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) CARBURETOR NO. 632142A Parts Diagram

Snow Thrower

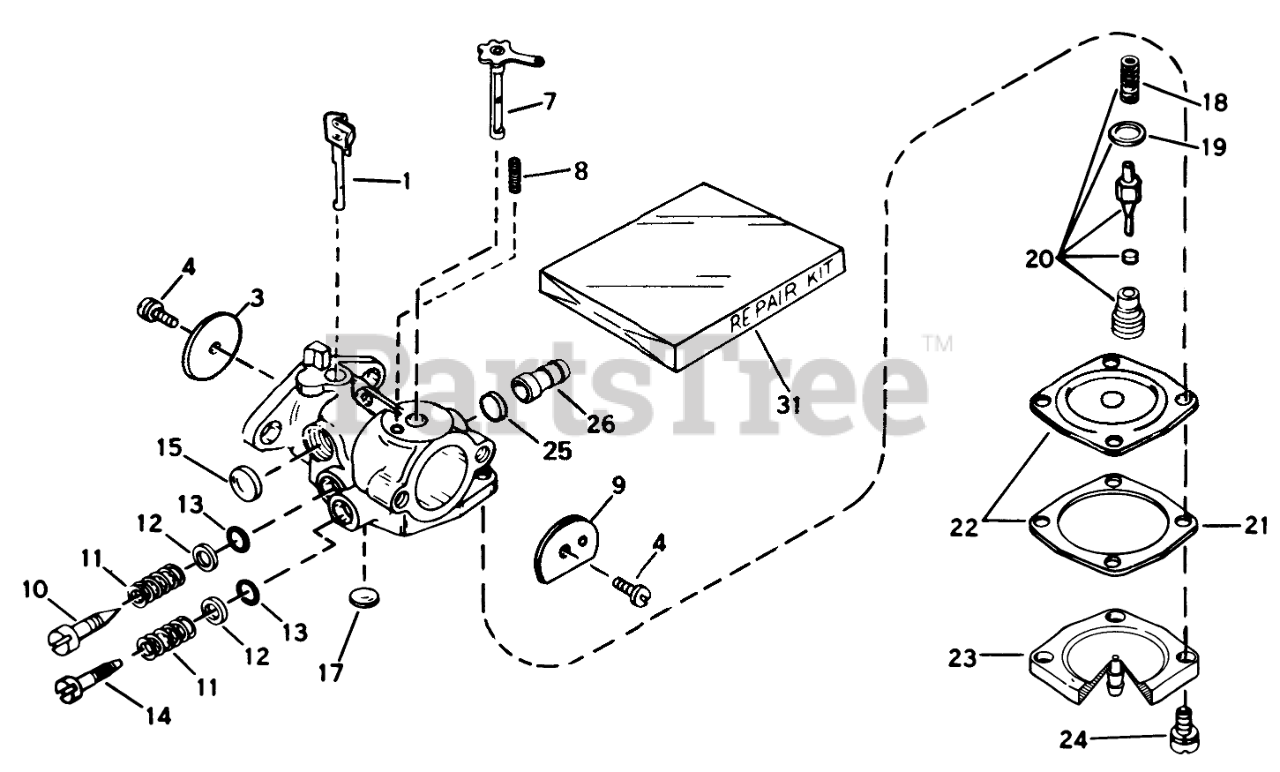

CARBURETOR NO. 632142A Parts Diagram

  • Title

1

Tecumseh 632130

Shaft/Lever-Throttle

$7.49

$

In Stock, only 1 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

7

Tecumseh 631888

Shaft & Lever Assembly

$

$

Not available

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631562

Screw-Idle Adjustment

$5.49

$

In Stock, Qty 11

0

11

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 8

0

12

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

13

630740 "0" Ring-Adjustment Screw

Note: Indicates Parts Included in Repair Kit Ref. Num 31.

$

$

Not available

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates Parts Included in Repair Kit Ref. Num 31.

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates Parts Included in Repair Kit Ref. Num 31.

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket Assy. (Incl. #18 & 19)

Note: Indicates Parts Included in Repair Kit Ref. Num 31.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy. (Incl. #21)

Note: Indicates Parts Included in Repair Kit Ref. Num 31.

$5.99

$

Usually ships in 3-12 days

0

23

Tecumseh 632127

Cover-Diaphragm

$

$

Not available

24

Tecumseh 650817

Screw

$

$

Not available

25

Tecumseh 632163

Disk

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

31

Tecumseh 631893

Kit-Repair
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
