38100 (S-140) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) MAGNETO NO. 610794A ENGINE MODEL NO. AH520 TYPE 1584A & 1584B Parts Diagram

Snow Thrower

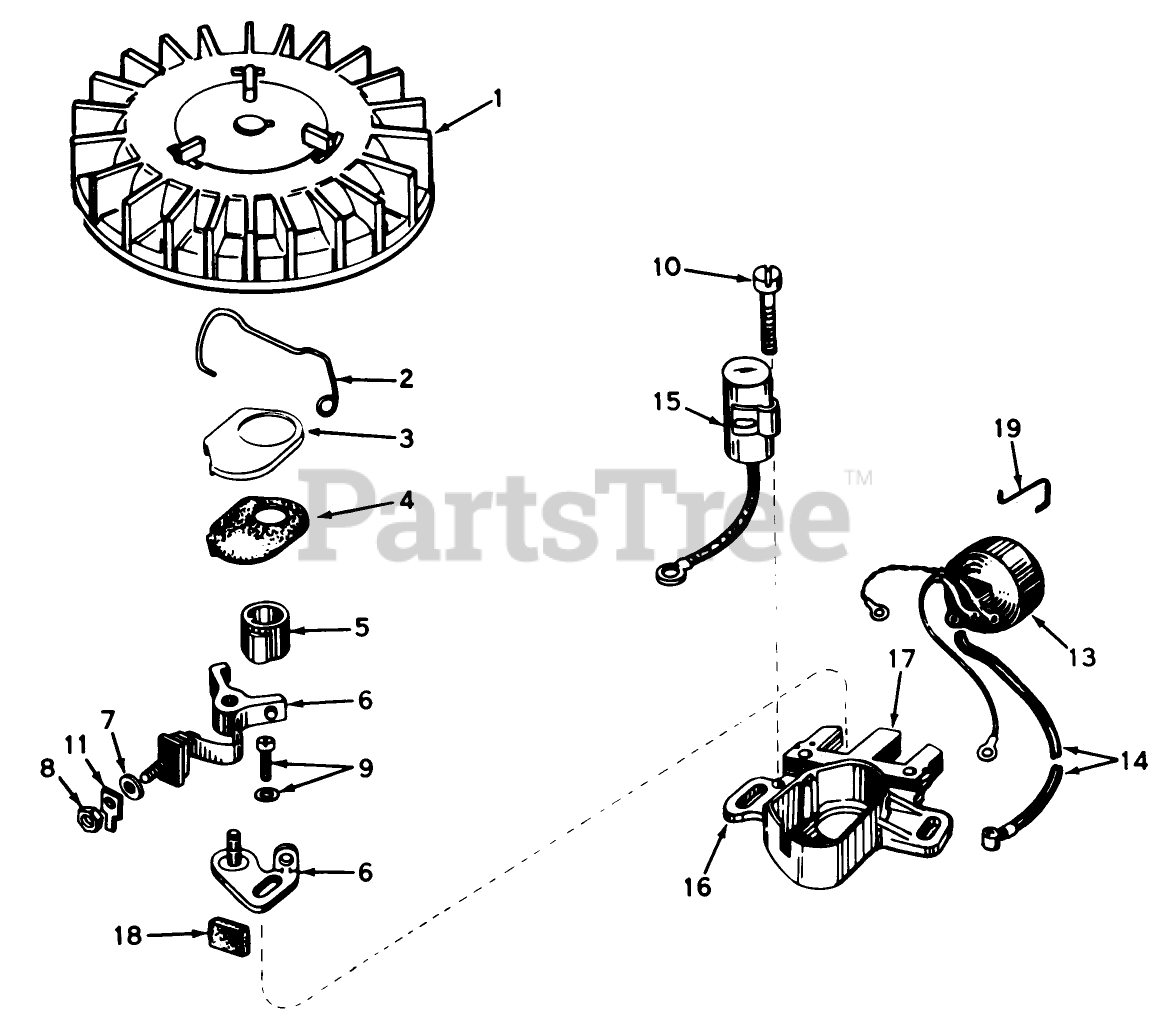

MAGNETO NO. 610794A ENGINE MODEL NO. AH520 TYPE 1584A & 1584B Parts Diagram

  • Title

1

Tecumseh 610781A

Flywheel (Incl. Ref. #3 & 4)
(Superseded to 610782B)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

3

Tecumseh 610947

Cover-Dust

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 610948

Gasket, Dust Cover

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 30552

Cam, Breaker

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

6

Tecumseh 30547A

Breaker Assy.

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$18.99

$

In Stock, only 2 left!

0

7

Tecumseh 610385

Washer

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

8

Tecumseh 610408

DECAL

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

10

Tecumseh 610593

Condenser Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33356

Terminal, Ground

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$1.99

$

In Stock, only 4 left!

0

13

Tecumseh 30560A

Coil Assembly (Incl. Ref. #14)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$48.99

$

In Stock, only 1 left!

0

14

Tecumseh 30554

Wire, Lead

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

15

Tecumseh 30548B

Condenser

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$13.99

$

In Stock, Qty 6

0

16

Tecumseh 30545

Core & Plate

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

17

Tecumseh 30561B

Stator Assembly (Incl. Ref. #2, 3, 4, 6 thru 11, 13, 15, 16, 18 & 19)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available

18

Tecumseh 30549

Felt,Cam Wiper

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$1.99

$

In Stock, only 3 left!

0

19

Tecumseh 31311

Clip, Coil

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purpose only. Order

$

$

Not available
