38100 (S-140) - Toro Snow Thrower (SN: 000500000 - 000999999) (1980) UPPER MAIN FRAME Parts Diagram

Snow Thrower

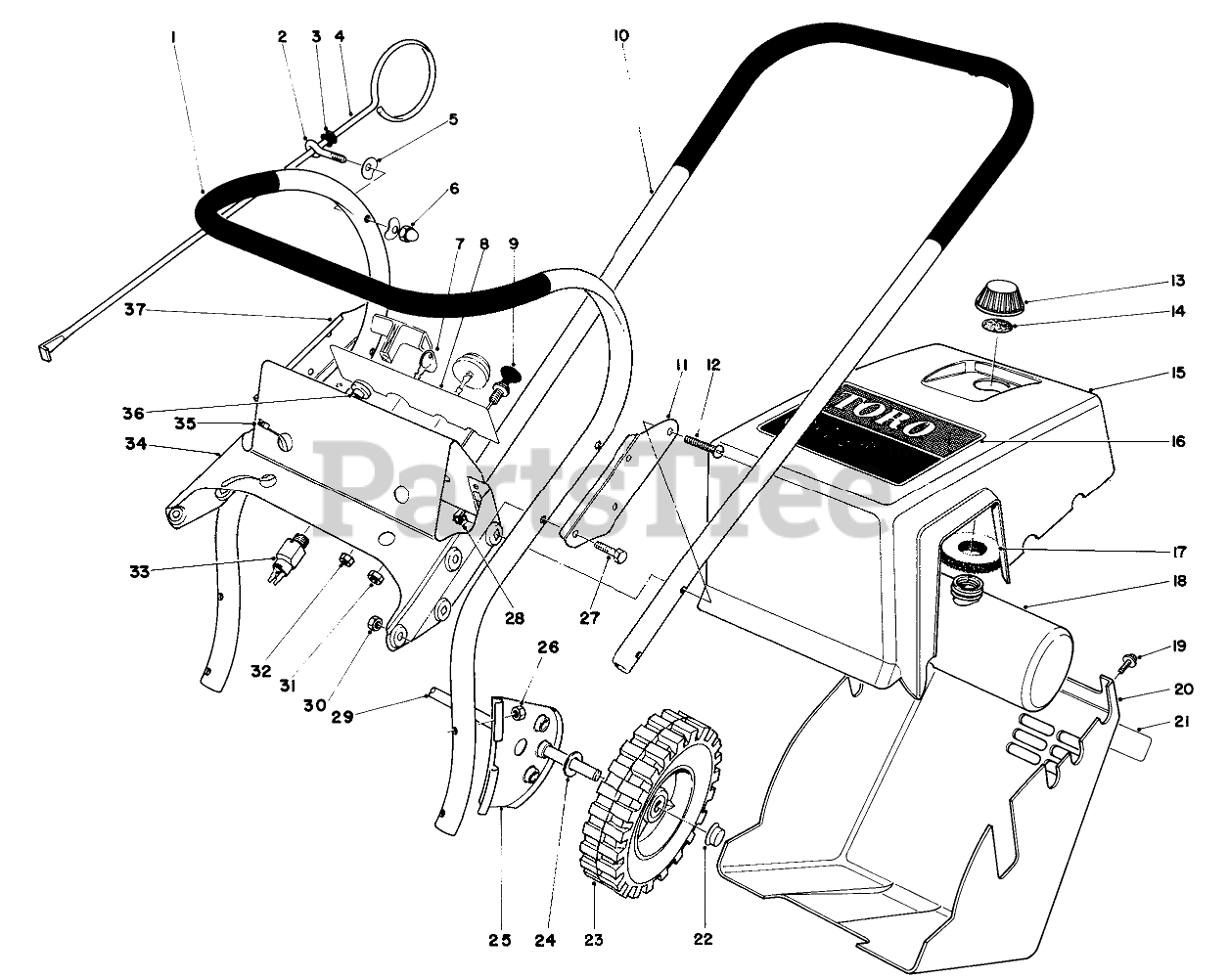

UPPER MAIN FRAME Parts Diagram

  • Title

1

Toro 33-4480

LOWER HANDLE

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

6

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

7

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

8

Toro 29-5840

CONTROL PANEL DECAL

$

$

Not available

9

Toro 29-5790

CHOKE CONTROL

$

$

Not available

10

Toro 33-4520

Upper Handle

$

$

Not available

11

Toro 3-7503

SPLICE PLATE

$

$

Not available

12

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

Usually ships in 3-6 days

0

13

Toro 37-7300

Gas Cap Assy. (Incl. Ref. #14)
(Superseded to 42-0680)

$

$

Not available

14

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

15

Toro 8-2819

Shroud (Incl. Ref. #16)

$

$

Not available

16

Toro 37-1270

Decal-Toro

$

$

Not available

17

Toro 25-1610

FOAM PAD

$

$

Not available

18

Toro 8-2829

Gas Tank Assembly (Incl. Ref. #13 & 14)

$

$

Not available

19

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

20

Toro 8-5019

Lower Shroud (Incl. Ref. #21)

$

$

Not available

21

Toro 29-5830

Decal-Instruction

$

$

Not available

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 7

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 37-0360

WHEEL BRKT B

$

$

Not available

26

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

27

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

28

Toro 3290-303

Nut Retainer

$

$

Not available

29

Toro 29-7560

Axle

$

$

Not available

30

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

31

Toro 3290-385

PAL NUT/CHOKE CNTRL

$

$

Not available

32

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

33

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

34

Toro 6-9839

Tank Support & Control Panel (Incl. Ref. #8)

$

$

Not available

35

Toro 3290-336

Strap
(Superseded to 3290-379)

$0.99

$

In Stock, only 3 left!

0

36

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

37

Toro 3-7504

Plate-Splice

$

$

Not available
