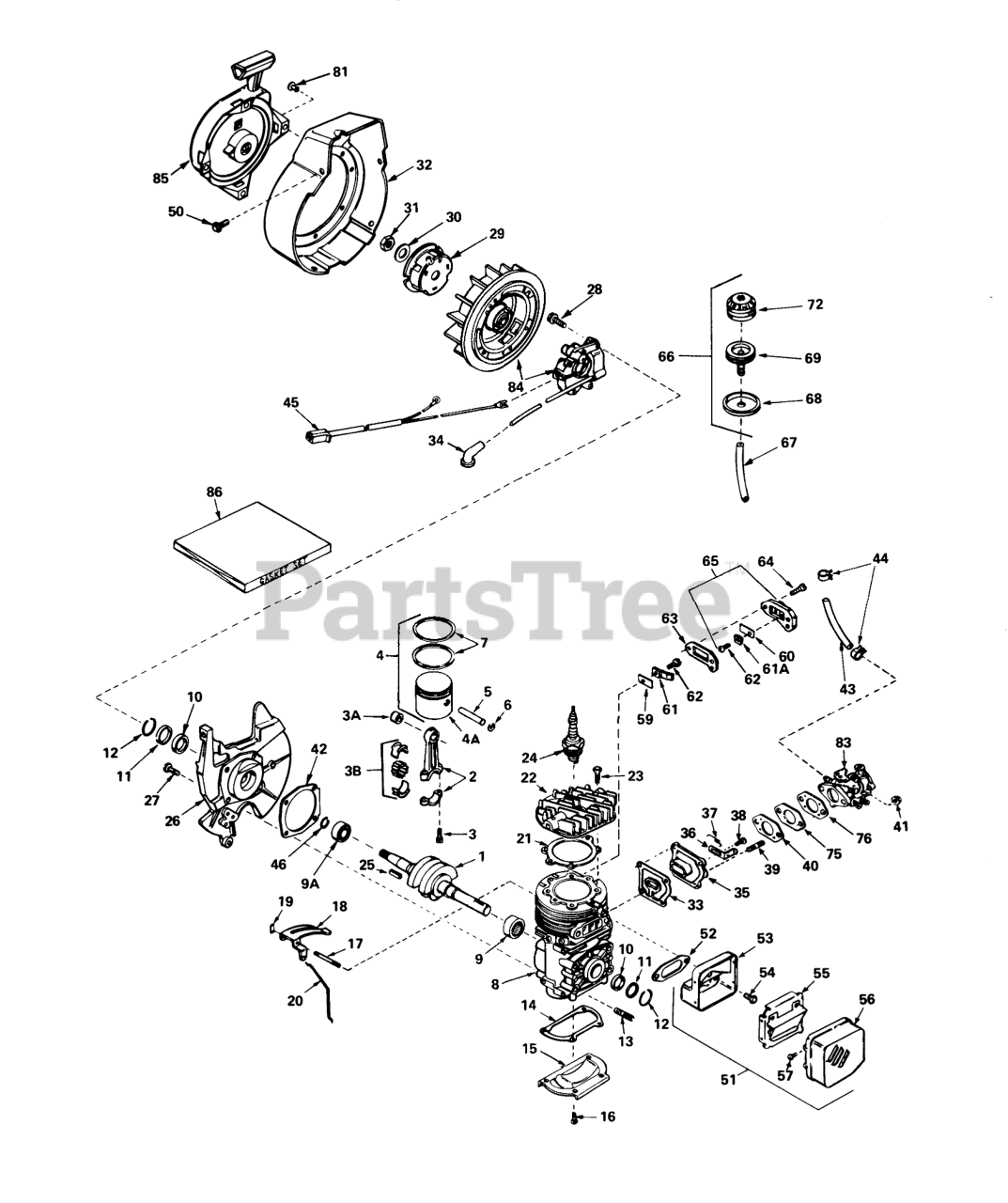

38100 (S-140) - Toro Snow Thrower (SN: 000500000 - 000999999) (1980) ENGINE TECUMSEH MODEL NO. AH520 TYPE 1584B (USED ON UNITS WITH SERIAL NO. 0300000 THRU 0510157) Parts Diagram

Snow Thrower

ENGINE TECUMSEH MODEL NO. AH520 TYPE 1584B (USED ON UNITS WITH SERIAL NO. 0300000 THRU 0510157) Parts Diagram

  • Title

1

Tecumseh 290489

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assy., Connecting (Incl. Nos. 3, 3A, & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

In Stock, only 1 left!

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310259

Piston Assy. (Incl. Nos. 4A thru 7)

$30.99

$

Usually ships in 3-12 days

0

4A

Tecumseh 310230B

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

In Stock, only 2 left!

0

8

Tecumseh 250271B

Block Assy., Cylinder (Incl. Nos. 9, 10 thru 13, 17 & 40)

$

$

Currently unavailable

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106A

Retainer, Crankshaft Seal

$3.99

$

Usually ships in 3-12 days

0

12

Tecumseh 510109A

Spring, Crankshaft Seal Retainer

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: Indicates items included in gasket set, part no. 510264D.

$5.49

$

In Stock, only 1 left!

0

15

Tecumseh 570370A

Plate, Cover

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490287

Vane Assy., Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490289

Link, Governor

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

Note: Indicates items included in gasket set, part no. 510264D.

$1.99

$

In Stock, Qty 8

0

22

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 611005

Head Adjustment Knob

$

$

Not available

25

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

26

Tecumseh 350388

Base Assy., Shroud (Incl. Nos. 10, 11 & 12)
(Superseded to 350405A)

$50.99

$

Usually ships in 3-12 days

0

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350391

Housing, Blower
(Superseded to 350392)

$

$

Currently unavailable

33

Tecumseh 510312

Gasket, Port
(Superseded to 510312A)

Note: Indicates items included in gasket set, part no. 510264D.

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

35

Tecumseh 570471

Adapter, Cover

$

$

Not available

36

Tecumseh 570633

Lever, Adjusting

$

$

Currently unavailable

37

Tecumseh 490286

Spring, Adjusting Lever

$1.99

$

In Stock, only 2 left!

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510229

Gasket, Carburetor 1/8" thick)
(Superseded to 510229A)

Note: Indicates items included in gasket set, part no. 510264D.

$3.99

$

Usually ships in 3-12 days

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 7

0

42

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: Indicates items included in gasket set, part no. 510264D.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 5

0

44

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 610999

Harness, Wire

$

$

Currently unavailable

46

Tecumseh 570630

Ring, Retaining

$

$

Currently unavailable

50

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

51

Tecumseh 390294

Muffler Assy. (Incl. Nos. 53 thru 57)

$

$

Currently unavailable

52

Tecumseh 510230

Gasket-Muffler
(Superseded to 510207A)

Note: Indicates items included in gasket set, part no. 510264D.

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 390292

Base-Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390295

Baffle, Muffler

$

$

Currently unavailable

56

Tecumseh 390296

Cover, Muffler
(Superseded to 390260)

$

$

Currently unavailable

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

59

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

60

Tecumseh 470135

Reed, Compression Release

$5.49

$

In Stock, only 1 left!

0

61

Tecumseh 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

Note: Indicates items included in gasket set, part no. 510264D.

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

65

Tecumseh 570437A

Cover Assy., Comp. Release (Incl. Nos. 60, 61A & 62)

$

$

Currently unavailable

66

Tecumseh 570629A

Primer Assembly (Incl. Nos. 68 thru 72)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

67

Tecumseh 32180B

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, Qty 9

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

72

Tecumseh 570442A

Bulb-Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

75

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

76

Tecumseh 510241

Gasket, Carburetor (1/16"thick)
(Superseded to 510241A)

Note: Indicates items included in gasket set, part no. 510264D.

$4.49

$

In Stock, only 3 left!

0

81

Rivet, Pop (3/16" dia.)(Can be purchased locally.)

$

$

Not available

83

Tecumseh 632035

Carburetor (Incl. No. 76)

$

$

Currently unavailable

84

Tecumseh 610794A

Magneto

$

$

Currently unavailable

85

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

86

Tecumseh 510264D

Gasket Set
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0
