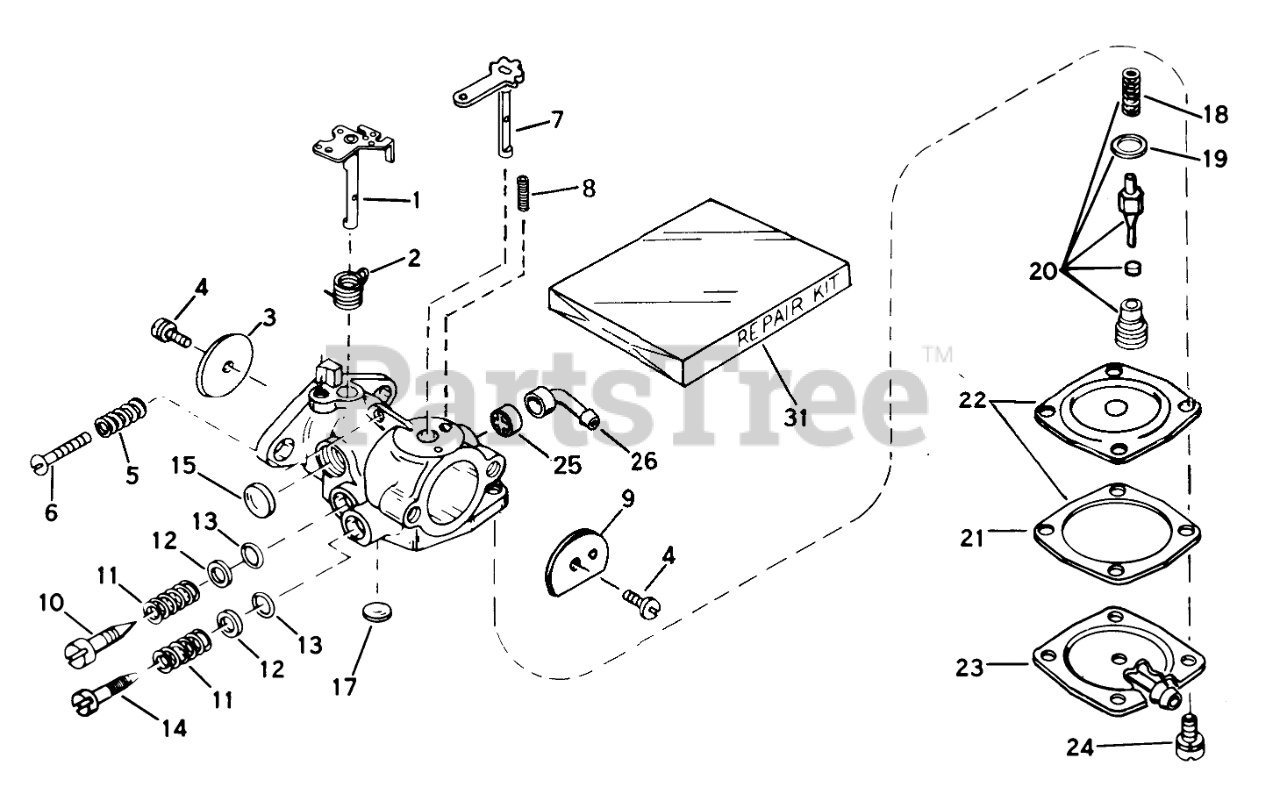

38100 (S-140) - Toro Snow Thrower (SN: 000500000 - 000999999) (1980) CARBURETOR NO. 632035 ENGINE MODEL NO. AH520, TYPE 1584B (USED ON UNITS WITH SERIAL NO. 0300000 THRU 0510157) Parts Diagram

Snow Thrower

CARBURETOR NO. 632035 ENGINE MODEL NO. AH520, TYPE 1584B (USED ON UNITS WITH SERIAL NO. 0300000 THRU 0510157) Parts Diagram

  • Title
1

Tecumseh 631868

Shaft & Lever Assy., Throttle

$7.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631066

Spring Return

$

$

Not available

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 632036

Shaft & Lever Assy., Choke

$

$

Not available

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631562

Screw-Idle Adjustment

$5.49

$

In Stock, Qty 11

0

11

$1.99

$

In Stock, Qty 8

0

12

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O"Ring

Note: Indicates items included in repair kit, part no. 631893.

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in repair kit, part no. 631893.

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates items included in repair kit, part no. 631893.

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket Assembly (Incl. Ref. #18 & 19)

Note: Indicates items included in repair kit, part no. 631893.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy. (Incl. Ref. #21)

Note: Indicates items included in repair kit, part no. 631893.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 631653

Cover, Diaphragm

$10.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Diaphragm Cover

$1.99

$

Usually ships in 3-12 days

0

25

Tecumseh 631201

Valve Check

$21.99

$

Usually ships in 3-12 days

0

26

Tecumseh 631808

Fitting-Inlet, Fuel

$13.99

$

Usually ships in 3-12 days

0

31

Tecumseh 631893

Kit-Repair
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
