38100 (S-140) - Toro Snow Thrower (SN: 000000001 - 000499999) (1980) Magneto No. 610794a Engine Model No. Ah520 Type 1584a (used On Units With Serial No. 0000001 Thru 0299999) Engine Model No. Ah520 Parts Diagram

Snow Thrower

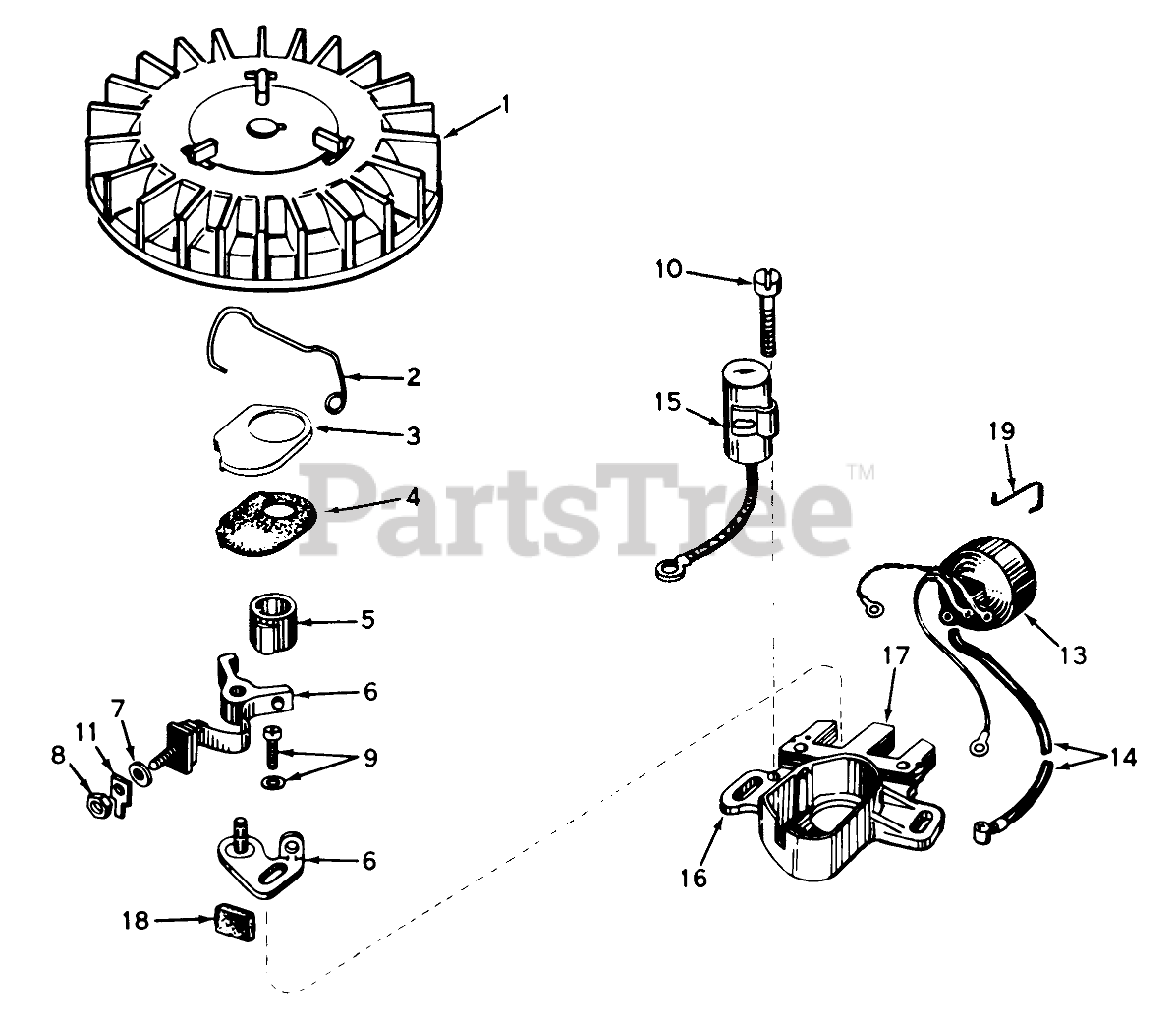

Magneto No. 610794a Engine Model No. Ah520 Type 1584a (used On Units With Serial No. 0000001 Thru 0299999) Engine Model No. Ah520 Parts Diagram

  • Title
1

Toro 610781A

Flywheel (Incl. Nos. 3 4)

$

$

Currently unavailable

2

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

3

Toro 610947

Cover-Dust

$

$

Currently unavailable

4

Toro 610948

Gasket, Dust Cover

$

$

Currently unavailable

5

Toro 30552

Cam, Breaker

$

$

Currently unavailable

6

Toro 30547A

Breaker Assy.

$

$

Currently unavailable

7

Toro 610385

Washer

$

$

Currently unavailable

8

Toro 610408

DECAL

$

$

Not available

9

Toro 29181

Breaker Screw

$

$

Currently unavailable

10

Toro 610593

Condenser Screw

$

$

Currently unavailable

11

Toro 33356

Terminal, Ground

$

$

Currently unavailable

13

Toro 30560A

Coil Assy. (Incl. No. 12)

$

$

Currently unavailable

14

Toro 30554

Wire, Lead

$

$

Currently unavailable

15

Toro 30548B

Condenser

$

$

Currently unavailable

16

Toro 30545

Core Plate

$

$

Currently unavailable

17

Toro 30561B

Stator Assy. (Incl. Ref. #2 thru 11, 13, 14, 16, 17 19)

$

$

Currently unavailable

18

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

19

Toro 31311

Clip, Coil

$

$

Currently unavailable
