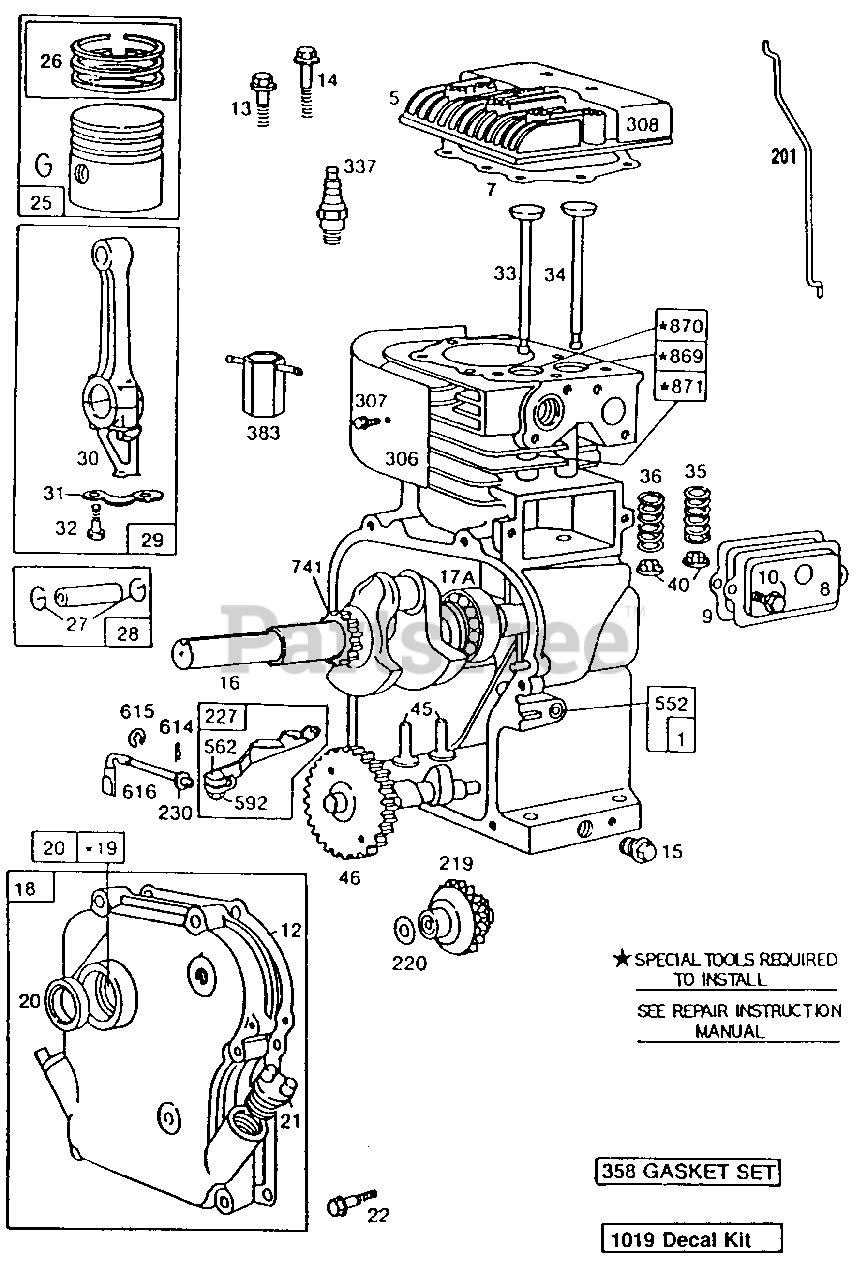

381 (218-381-100) - Cub Cadet Front-Tine Tiller Engine (1988) B&S 5.0 HP-130202-3166-01 Part 2 Parts Diagram

Front-Tine Tiller Engine

B&S 5.0 HP-130202-3166-01 Part 2 Parts Diagram

  • Title
1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-211542

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-270383

Gasket-Cylinder Head

Note: (Included in Gasket Set - Part No. 397145)

$

$

Not available

8

Cub Cadet BS-294178

Breather-Valve Chamber
(Superseded to BS-791779)

$15.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

Note: (Included in Gasket Set - Part No. 397145)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather Mtg. Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270080

Gasket-Crankcase-.015" Thick

Note: (Standard)

$

$

Not available

Cub Cadet BS-270125

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set - Part No. 397145)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set - Part No. 397145)

$8.49

$

In Stock, only 2 left!

0

13

Cub Cadet BS-93368

Screw-Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

14

Cub Cadet BS-93369

Screw-Cylirder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-91249

Plug-Pipe, 114" Std. Square Head
(Superseded to BS-691686)

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-397103

Crankshaft

$131.99

$

Usually ships in 2-12 days

0

17A

UNKNOWN

$

$

Not available

18

Cub Cadet BS-398078

Cover Ass'y.-Crankcase

$

$

Not available

19

Cub Cadet BS-297603

Bushing-Crankcase Cover

Note: Note: Requires special tools for installation.

$

$

Not available

20

$

$

Not available

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93032

Screw-Crankcase Cover Mounting Sem

$

$

Not available

25

Cub Cadet BS-298904

Piston Ass'y.-Standard

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Ass'y.-.010" O.S.

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Ass'y.-.020" O.S.

$

$

Not available

Cub Cadet BS-298907

Piston Ass'y.-.030" O.S.

Note: PISTON RING SETS: Note: For Chrome Piston Ring Set-Standard Size-Order Part

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Standard Piston

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set-.010" O.S. Piston

$

$

Not available

Cub Cadet BS-298984

Ring Set-.020" O.S. Piston

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-.030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y.-Piston-Standard

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Ass'y.-Piston-.005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299430

Rod Ass'y.-Connecting

Note: Note: For Connecting Rod with .020" undersize Crankpin Bore-Order No. 39045

$40.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-221890

Dipper-Connecting Rod
(Superseded to BS-691759)

$8.49

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-221876

Lock-Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-92296

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-211119

Valve-Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve-Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-260642

Tappet-Valve

$

$

Not available

46

$

$

Not available

201

Cub Cadet BS-262280

Link-Governor

$

$

Not available

219

Cub Cadet BS-391737

Gear-Governor

$38.99

$

In Stock, only 2 left!

0

220

Cub Cadet BS-221551

Washer-Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490374

Lever Ass'y.-Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer-Governor Lever
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-221511

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93490

Screw-Cylinder Shield Mounting Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

308

Cub Cadet BS-221512

Cover-Cylinder Head

$28.99

$

In Stock, only 1 left!

0

337

Cub Cadet 298809

Plug-Spark 1 1/2" High- 37-42 M.M.

$

$

Currently unavailable

358

Cub Cadet BS-397145

Gasket Set
(Superseded to BS-495603)

$32.99

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

552

Cub Cadet BS-231079

Bushing-Governor Crank (1/4 " I.D.)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.-10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

616

Cub Cadet BS-231077

Crank-Governor (1/4" Dia.)

$

$

Currently unavailable

741

Cub Cadet BS-261696

Gear-Timing

$52.99

$

Usually ships in 2-12 days

0

869

Cub Cadet BS-211787

Seat-Intake Valve

Note: (Standard)

$

$

Not available

870

Cub Cadet BS-211172

Seat-Exhaust Valve

Note: (Standard) Note: For Options see Repair Manual .

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

Note: Note: 63709 Guide-Intake Valve. See Repair Instruction Manual .

$31.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491100

Decal (Label) Kit 8-E-56

$34.99

$

Usually ships in 2-12 days
