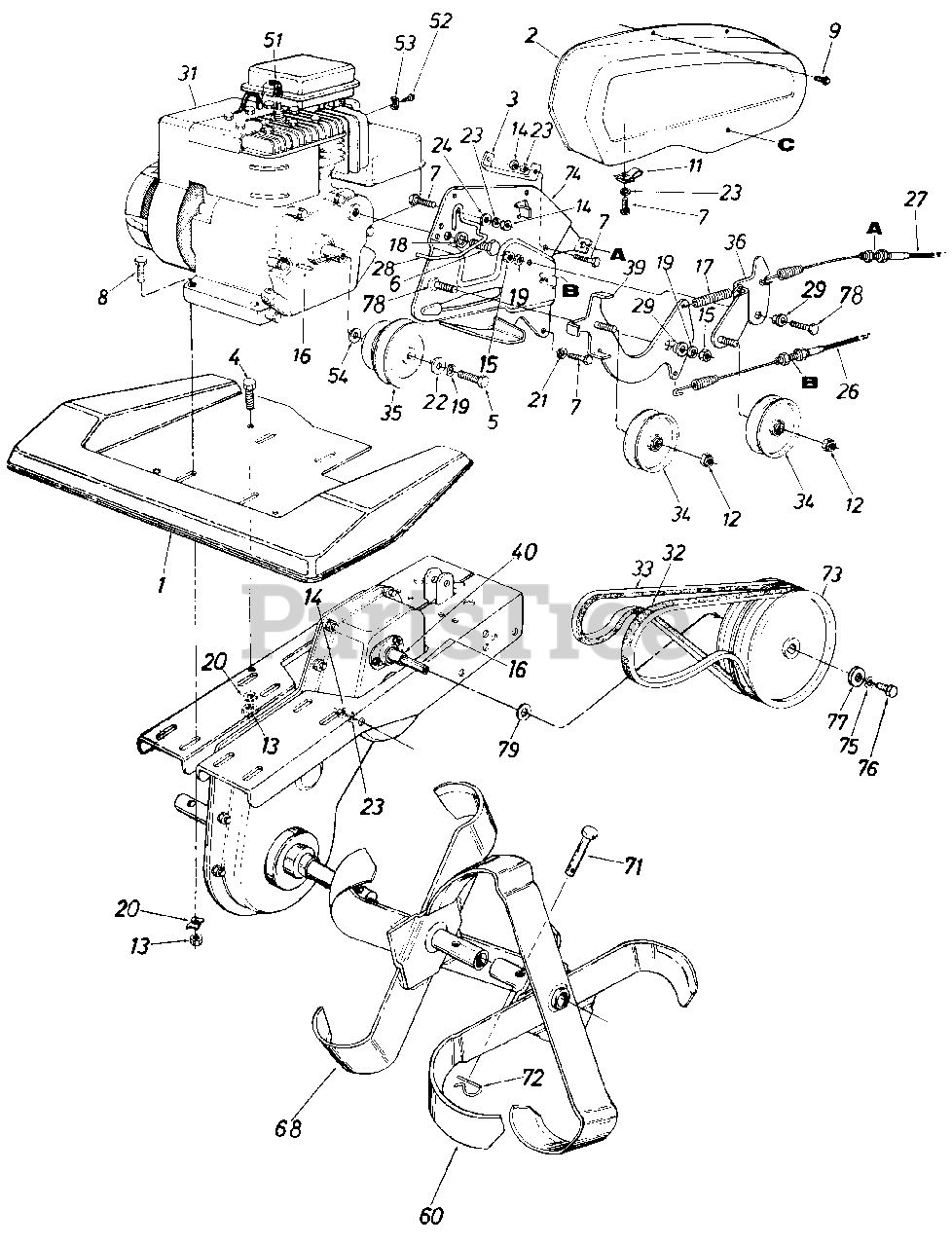

381 (218-381-100) - Cub Cadet Front-Tine Tiller (1988) Tiller Part 2 Parts Diagram

Front-Tine Tiller

Tiller Part 2 Parts Diagram

  • Title

1

Cub Cadet 04598

SHIELD-TINE

Note: Color Code 499

Variations

Cub Cadet 04598-0638

TINE SHIELD - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 04598-0662

TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 06796

GUARD-BELT

Variations

Cub Cadet 06796-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 06801

BRACKET-SUPPORT

$

$

Currently unavailable

4

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.99

$

In Stock, Qty 8

0

6

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0783

SCREW-HEX WASH HD 10-32X.38

$

$

Not available

11

Cub Cadet 712-0185

NUT-SPEED-1/4-20

$

$

Not available

12

Cub Cadet 712-0262

NUT-HEX CENTER JAM 3/8-24

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 714-0133

KEY-SQ 3/16X1.50

$4.99

$

In Stock, Qty 12

0

17

Cub Cadet 732-0209

SPRING-EXTENSION
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

22

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

Cub Cadet 736-0463

WASHER-FL

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

26

Cub Cadet 746-0622

CABLE-CLUTCH CONTROL

$

$

Not available

27

Cub Cadet 746-0621

CABLE-CLUTCH CONTROL
(Superseded to 946-0621B)

$

$

Not available

28

Cub Cadet 747-0181

ROD-BELT GUARD

$

$

Currently unavailable

29

Cub Cadet 738-0372

SPACER-SHLD
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

Cub Cadet 751-0233

DEFLECTOR-MUFFLER
(Superseded to BS-796956)

$10.99

$

Usually ships in 2-12 days

0

31

Note: ENGINE

$

$

Not available

32

Cub Cadet 754-0201

BELT-V 1/2 X 41
(Superseded to 954-0201)

$35.99

$

In Stock, only 1 left!

0

33

Cub Cadet 754-0154

BELT-V 1/2 X 37 SPECIAL
(Superseded to 954-0154)

$38.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-0225

PULLEY-IDLER-FLAT W/FLANGES

$

$

Not available

35

Cub Cadet 756-0261

PULLEY-ENGINE

$

$

Currently unavailable

36

Cub Cadet 784-0267

BRACKET ASSY-IDLER

Variations

Cub Cadet 784-0267-0637

IDLER BRACKET ASSEMBLY(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 784-0251

BRACKET ASSY-IDLER

$

$

Not available

40

Cub Cadet 750-0229

SPACER-.635 ID X .88 OD X 1.03
(Superseded to 950-0229)

$

$

Not available

51

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

52

Cub Cadet 710-0899

SCREW-HEX SEMS #10-32
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 751-0360

CLAMP-CASING
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

54

Cub Cadet 736-0315

WASHER-FL

$6.99

$

In Stock, Qty 6

0

60

Cub Cadet 784-0093

TINE ASSY-OUTER-LH

Variations

Cub Cadet 784-0093-0637

TINE ASSEMBLY-OUTER (LH)POWDER - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 784-0094

TINE ASSY-OUTER-RH
(Superseded to 784-0094-0637)

$

$

Not available

68

Cub Cadet 784-0091

TINE ASSY-INNER-LH

$

$

Not available

Cub Cadet 784-0092

TINE ASSY-INNER-RH

$

$

Not available

71

Cub Cadet 1545-029

PIN-CLEVIS
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

72

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

73

Cub Cadet 756-0262

PULLEY

$

$

Currently unavailable

74

Cub Cadet 784-0269

PLATE-CLUTCH MTG

$

$

Not available

75

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet 710-0643

SCREW-HEX 5/16-18 X 10 SPEC

$6.99

$

In Stock, Qty 5

0

77

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 11

0

78

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

79

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0
