381 (217-381-100) - Cub Cadet Front-Tine Tiller (1987) Chain Case Parts Diagram

Front-Tine Tiller

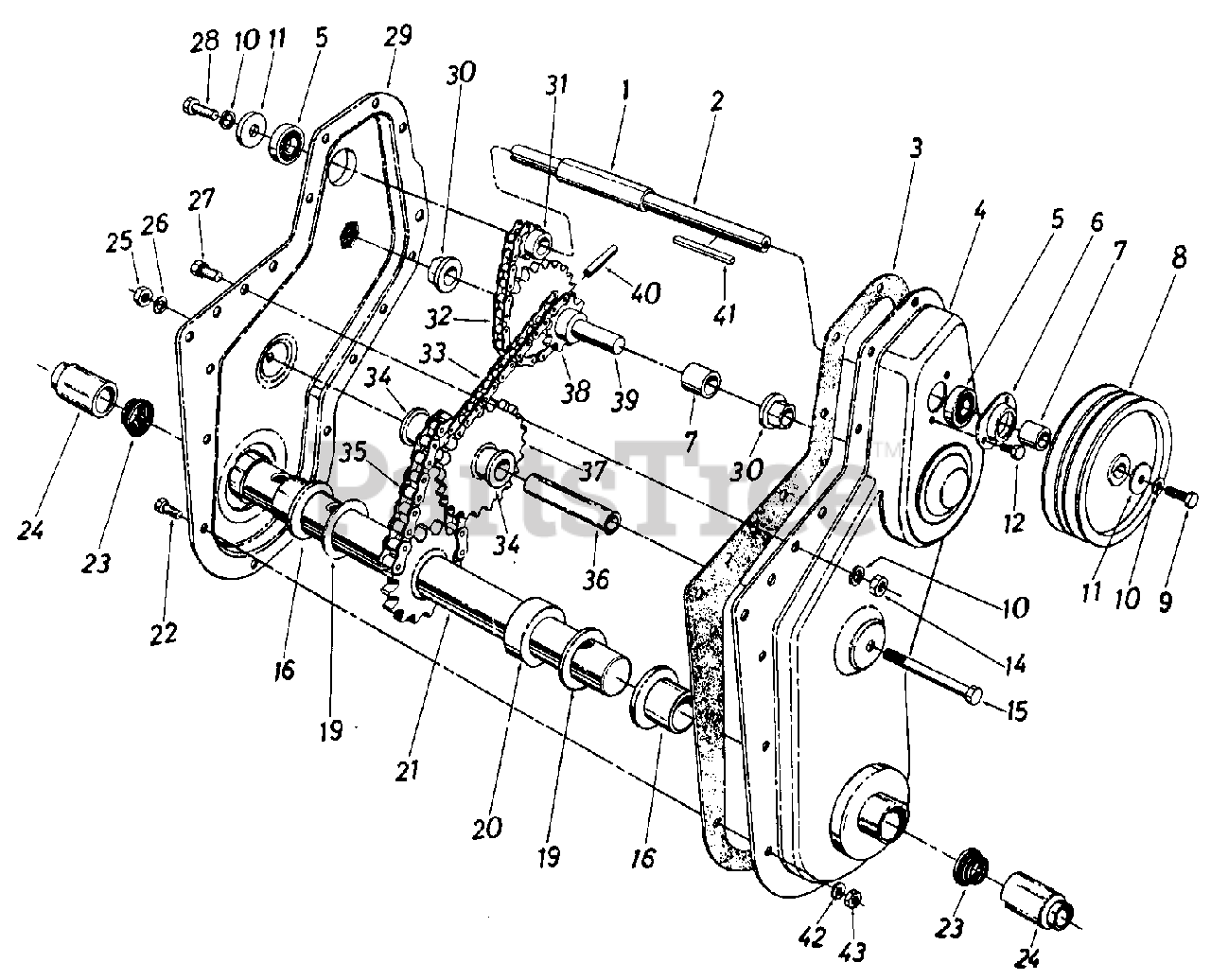

Chain Case Parts Diagram

  • Title

1

Cub Cadet 750-0315

SPACER

$

$

Not available

2

Cub Cadet 738-0182

SHAFT-JACK
(Superseded to 938-0182)

$

$

Not available

3

Cub Cadet 721-0132

GASKET
(Superseded to 921-0132)

$35.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 15276

CHAIN CASE HALF-LH

$

$

Not available

5

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

6

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

7

Cub Cadet 750-0229

SPACER-.635 ID X .88 OD X 1.03
(Superseded to 950-0229)

$

$

Not available

8

Cub Cadet 756-0262

PULLEY

$

$

Currently unavailable

9

Cub Cadet 710-0643

SCREW-HEX 5/16-18 X 10 SPEC

$6.99

$

In Stock, Qty 5

0

10

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0644

SCREW-HEX 3/8-16 X 3.25
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

16

Cub Cadet 731-0374

BEARING-KING PIN
(Superseded to 931-0374)

Note: (Plastic)

$7.49

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 750-0314

SPACER

$

$

Not available

21

Cub Cadet 784-0090

SHAFT-TINE

$

$

Not available

22

Cub Cadet 710-0195

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

23

Cub Cadet 721-0175

SEAL

$9.99

$

In Stock, Qty 6

0

24

Cub Cadet 731-0487

CAP-DUST
(Superseded to 931-0487)

$11.99

$

In Stock, only 3 left!

0

25

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 6

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

28

Cub Cadet 710-0538

SCREW-HEX 5/16-18 X .62

Note: (Special)

$4.49

$

In Stock, Qty 7

0

29

Cub Cadet 15274

CHAIN CASE HALF-RH

$

$

Not available

30

Cub Cadet 748-0229

BEARING-HEX FLANGE
(Superseded to 948-0229)

$

$

Not available

31

Cub Cadet 713-0206

SPROCKET ASSY-10T

$

$

Not available

32

Cub Cadet 713-0131

#41 CHAIN 1/2 PITCH X 34 LINKS E

$

$

Not available

33

Cub Cadet 713-0186

#420 CHAIN 1/2 PITCH X 48 LINKS
(Superseded to 913-0186)

$

$

Not available

34

Cub Cadet 748-0855

BEARING-FLANGE .626 ID

$

$

Not available

35

Cub Cadet 713-0187

#50 CHAIN 5/8 PITCH X 28 LINKS

$

$

Not available

36

Cub Cadet 738-0320

SHAFT-SPROCKET

$

$

Not available

37

Cub Cadet 713-0182

SLEEVE ASSY-SPRKT
(Superseded to 913-0182)

$

$

Not available

38

Cub Cadet 713-0181

SLEEVE ASSY-SPRKT

$

$

Not available

39

Cub Cadet 738-0308

SHAFT-SPROCKET

$

$

Currently unavailable

40

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$9.49

$

In Stock, Qty 20+

0

41

Cub Cadet 714-0133

KEY-SQ 3/16X1.50

$4.99

$

In Stock, Qty 12

0

42

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

43

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0
