381 (216-381-100) - Cub Cadet Front-Tine Tiller (1986) Tiller Part 1 Parts Diagram

Front-Tine Tiller

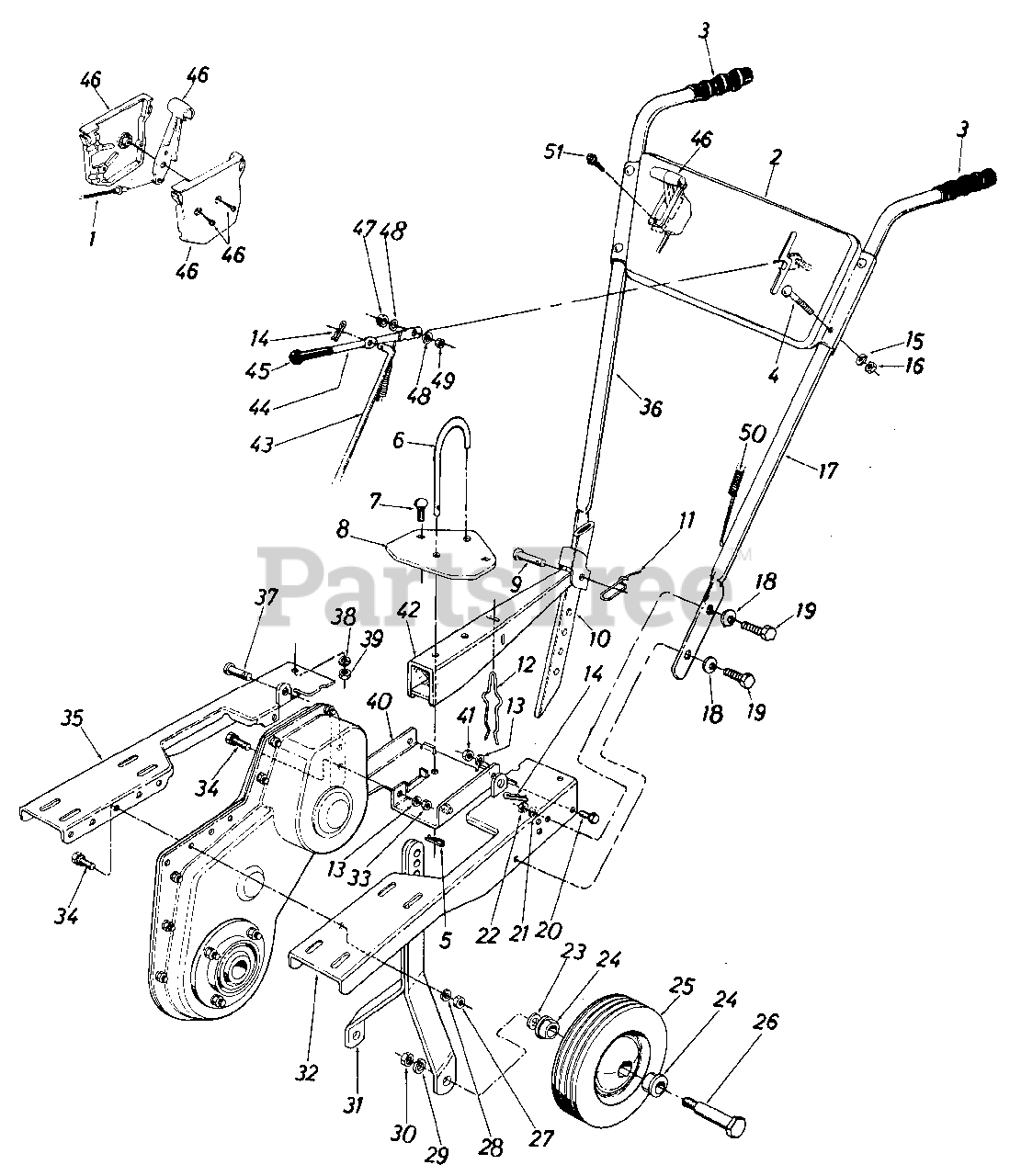

Tiller Part 1 Parts Diagram

  • Title
1

Cub Cadet 746-0503

WIRE-CONTROL
(Superseded to 946-0503)

$

$

Not available

2

Cub Cadet 784-0034

PANEL ASSY-CONTROL

$

$

Currently unavailable

3

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0458

BOLT-CARRIAGE 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

6

Cub Cadet 04602

PIN-CLEVIS .50 DIA

$

$

Not available

7

Cub Cadet 710-0451

BOLT-CARRIAGE 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 04586

PLATE-U CHANNEL

$

$

Currently unavailable

9

Cub Cadet 711-0231

PIN-CLEVIS
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

10

Cub Cadet 04668

BAR-DEPTH

Note: Color Code 499

$

$

Not available

11

Cub Cadet 732-0194

PIN-SPRING

$4.99

$

In Stock, Qty 12

0

12

Cub Cadet 732-0290

SPRING-DEPTH BAR

$

$

Not available

13

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 749-0502

HANDLE-LH

$

$

Not available

18

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0253

SCREW-HEX 3/8-16 X 1.00
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0116

BEARING-FLANGE

$

$

Not available

25

Cub Cadet 734-0584

WHEEL ASSY-10 X 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

26

Cub Cadet 738-0318

SCREW-SHLD

$

$

Not available

27

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 712-0200

NUT-HEX INS L-1/2-20
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 06813

BRACKET ASSY-WHL

Note: Color Code 499

$

$

Not available

32

Cub Cadet 06792

CHANNEL ASSY-U-LH

$

$

Currently unavailable

33

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

35

Cub Cadet 06794

CHANNEL-ENG U

$

$

Not available

36

Cub Cadet 749-0356

HANDLE-RH

$

$

Currently unavailable

37

Cub Cadet 711-0599

PIN-CLEVIS
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 06816

BRACKET ASSY-U CHANNEL

$

$

Currently unavailable

41

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 04589

TAIL PIECE ASSY

$

$

Not available

43

Cub Cadet 747-0183

ROD-CONTROL-CLUTCH

$

$

Currently unavailable

44

Cub Cadet 747-0182

LEVER-CLUTCH

$

$

Not available

$

$

Not available

46

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 735-0126

WASHER-RUBBER
(Superseded to 735-0126A)

$

$

Not available

48

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

50

$

$

Not available

51

Cub Cadet 710-0779

SCREW-TRUSS TAP
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0
