381 (215-381-100) - Cub Cadet 26" Front-Tine Tiller (1985) Tiller Part 2 Parts Diagram

26" Front-Tine Tiller

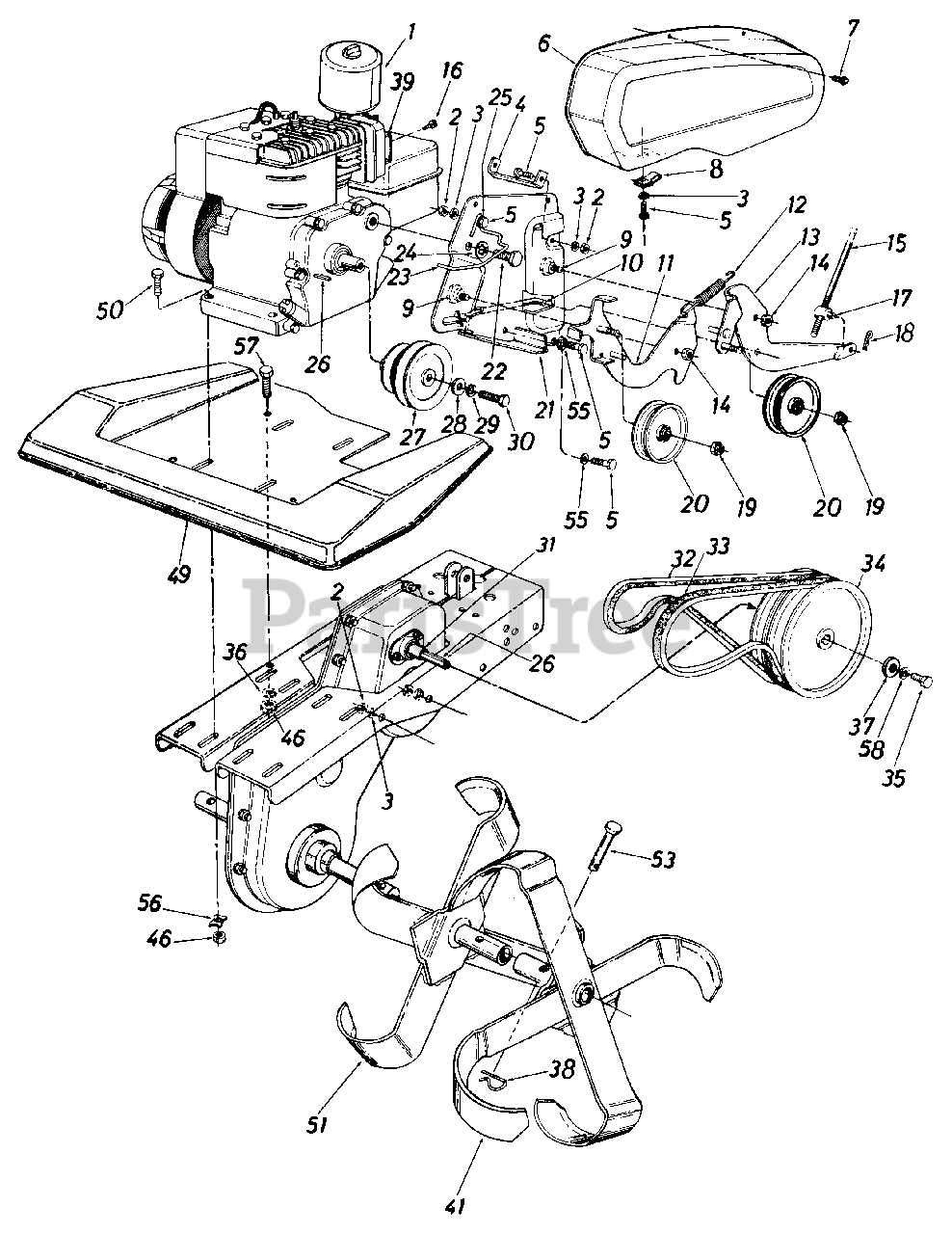

Tiller Part 2 Parts Diagram

  • Title

1

Note: ENGINE

$

$

Not available

2

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 06801

BRACKET-SUPPORT

$

$

Currently unavailable

5

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 06796

GUARD-BELT

Note: Color Code 499

Variations

Cub Cadet 06796-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0185

NUT-SPEED-1/4-20

$

$

Not available

9

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$10.99

$

In Stock, only 1 left!

0

10

Cub Cadet 747-0180

ROD-CONTROL

$

$

Currently unavailable

11

Cub Cadet 06786

BRACKET ASSY-IDLER

$

$

Currently unavailable

12

Cub Cadet 732-0433

SPRING-TENSION

$

$

Not available

13

Cub Cadet 06784

BRACKET ASSY-IDLER

$

$

Currently unavailable

14

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

Note: (2 Required)

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 747-0183

ROD-CONTROL-CLUTCH

$

$

Currently unavailable

16

Cub Cadet 710-0783

SCREW-HEX WASH HD 10-32X.38

$

$

Not available

17

Cub Cadet 711-0392

FERRULE

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0262

NUT-HEX CENTER JAM 3/8-24

Note: (2 Required)

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet 756-0225

PULLEY-IDLER-FLAT W/FLANGES

Note: (2 Required)

$

$

Not available

21

Cub Cadet 06803

PLATE-MTG-CLUTCH

$

$

Currently unavailable

22

Cub Cadet 710-0121

SCREW-HEX 1/2/20 X .75 SPEC

$

$

Not available

23

Cub Cadet 747-0181

ROD-BELT GUARD

$

$

Currently unavailable

24

Cub Cadet 736-0114

WASHER-INTERN L-1/2

$

$

Not available

25

Cub Cadet 736-0463

WASHER-FL

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 714-0133

KEY-SQ 3/16X1.50

$4.99

$

In Stock, Qty 12

0

27

Cub Cadet 756-0261

PULLEY-ENGINE

$

$

Currently unavailable

28

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.99

$

In Stock, Qty 8

0

31

Cub Cadet 750-0229

SPACER-.635 ID X .88 OD X 1.03
(Superseded to 950-0229)

$

$

Not available

32

Cub Cadet 754-0201

BELT-V 1/2 X 41
(Superseded to 954-0201)

$35.99

$

In Stock, only 1 left!

0

33

Cub Cadet 754-0154

BELT-V 1/2 X 37 SPECIAL
(Superseded to 954-0154)

$38.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-0262

PULLEY

$

$

Currently unavailable

35

Cub Cadet 710-0643

SCREW-HEX 5/16-18 X 10 SPEC

$6.99

$

In Stock, Qty 5

0

36

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 11

0

38

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

39

Cub Cadet 751-0233

DEFLECTOR-MUFFLER
(Superseded to BS-796956)

$10.99

$

Usually ships in 2-12 days

0

41

Cub Cadet 784-0092

TINE ASSY-INNER-RH

$

$

Not available

Cub Cadet 784-0094

TINE ASSY-OUTER-RH
(Superseded to 784-0094-0637)

$

$

Not available

Cub Cadet 784-0091

TINE ASSY-INNER-LH

$

$

Not available

Cub Cadet 784-0093

TINE ASSY-OUTER-LH

Variations

Cub Cadet 784-0093-0637

TINE ASSEMBLY-OUTER (LH)POWDER - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 04598

SHIELD-TINE

Variations

Cub Cadet 04598-0638

TINE SHIELD - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 04598-0662

TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$

$

50

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

51

Cub Cadet 784-0092

TINE ASSY-INNER-RH

$

$

Not available

Cub Cadet 784-0094

TINE ASSY-OUTER-RH
(Superseded to 784-0094-0637)

$

$

Not available

Cub Cadet 784-0091

TINE ASSY-INNER-LH

$

$

Not available

Cub Cadet 784-0093

TINE ASSY-OUTER-LH

Variations

Cub Cadet 784-0093-0637

TINE ASSEMBLY-OUTER (LH)POWDER - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 1545-029

PIN-CLEVIS
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

55

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

56

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
