381 (210-381-100) - Cub Cadet Front-Tine Tiller (1990) Tiller Part 1 Parts Diagram

Front-Tine Tiller

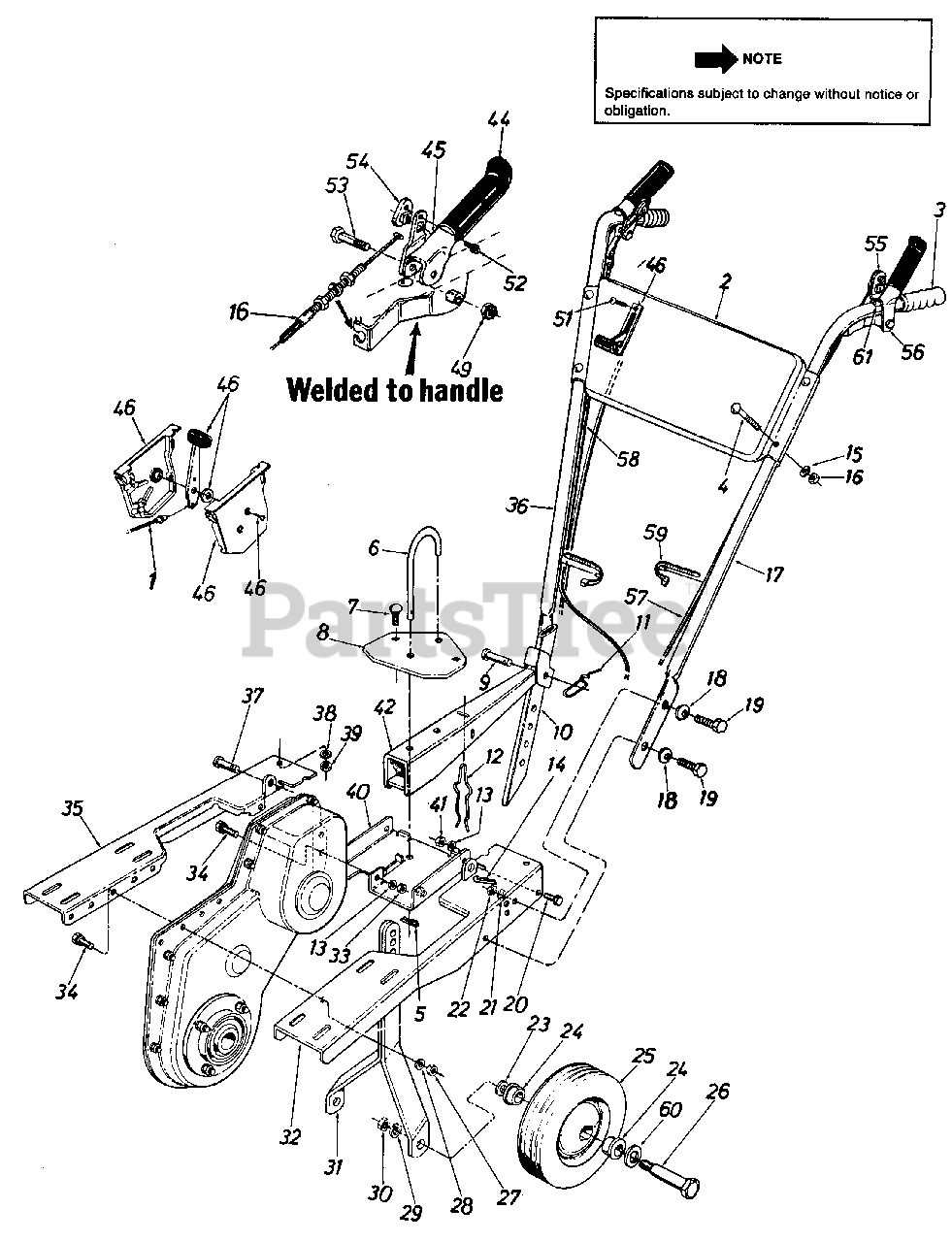

Tiller Part 1 Parts Diagram

  • Title
1

Cub Cadet 746-0503

WIRE-CONTROL
(Superseded to 946-0503)

$

$

Not available

2

Cub Cadet 784-0036A

PANEL-HANDLE

Note: Color Code 499

$

$

Not available

3

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0458

BOLT-CARRIAGE 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 714-0149B

PIN-COTTER

$4.49

$

In Stock, Qty 18

0

6

Cub Cadet 04602

PIN-CLEVIS .50 DIA

$

$

Not available

7

Cub Cadet 710-0451

BOLT-CARRIAGE 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 04586

PLATE-U CHANNEL

$

$

Currently unavailable

9

Cub Cadet 711-0231

PIN-CLEVIS
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

10

Cub Cadet 04668

BAR-DEPTH

Note: Color Code 499

$

$

Not available

11

Cub Cadet 732-0194

PIN-SPRING

$4.99

$

In Stock, Qty 12

0

12

Cub Cadet 732-0290

SPRING-DEPTH BAR

$

$

Not available

13

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0149B

PIN-COTTER

$4.49

$

In Stock, Qty 18

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Variations

Cub Cadet 784-0259A-0637

HANDLE (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0253

SCREW-HEX 3/8-16 X 1.00
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0116

BEARING-FLANGE

$

$

Not available

25

Cub Cadet 734-0584

WHEEL ASSY-10 X 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

26

Cub Cadet 738-0318

SCREW-SHLD

$

$

Not available

27

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 712-0200A

NUT-HEX INS L-1/2-20

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 06813

BRACKET ASSY-WHL

Note: Color Code 499

$

$

Not available

32

Cub Cadet 06792

CHANNEL ASSY-U-LH

$

$

Currently unavailable

33

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

35

Cub Cadet 06794

CHANNEL-ENG U

$

$

Not available

36

Cub Cadet 784-0258A

HANDLE ASSY-RH

$

$

Currently unavailable

37

Cub Cadet 1545-029

PIN-CLEVIS
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 06816

BRACKET ASSY-U CHANNEL

$

$

Currently unavailable

41

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 04589

TAIL PIECE ASSY

$

$

Not available

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 784-0255B

GRIP ASSY-CLUTCH-RH

$

$

Not available

46

Cub Cadet 831-0823A

CONTROL BOX-THROTTLE

$32.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

51

Cub Cadet 710-0779A

SCREW-TRUSS TAP

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 710-0919

SCREW-TAP

$4.99

$

In Stock, Qty 8

0

53

Cub Cadet 710-0151

SCREW-HEX 3/8-24 X 2.00

$7.49

$

In Stock, only 3 left!

0

54

Cub Cadet 746-0606

HOLD DOWN-BARREL-RH

$

$

Not available

55

Cub Cadet 746-0605

HOLD DOWN-CABLE
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 784-0202B

GRIP ASSY-LH
(Superseded to 684-04399A-0637)

Variations

Cub Cadet 784-0202B-0637

Clutch Assembly Lever - POWDER BLACK (0637)

$33.99

$

In Stock, only 4 left!

0

$33.99

$

In Stock, only 4 left!

0

57

Cub Cadet 746-0621B

CABLE-CLUTCH CONTROL
(Superseded to 946-0621B)

$

$

Not available

58

Cub Cadet 746-0622B

CABLE-CLUTCH CONTROL

$

$

Not available

59

Cub Cadet 725-0157

TIE-CABLE

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 735-0199

BUMPER-RUBBER
(Superseded to 935-0199A)

$7.99

$

In Stock, only 4 left!

0
