38095 (1132) - Toro 32" Snow Thrower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

32" Snow Thrower

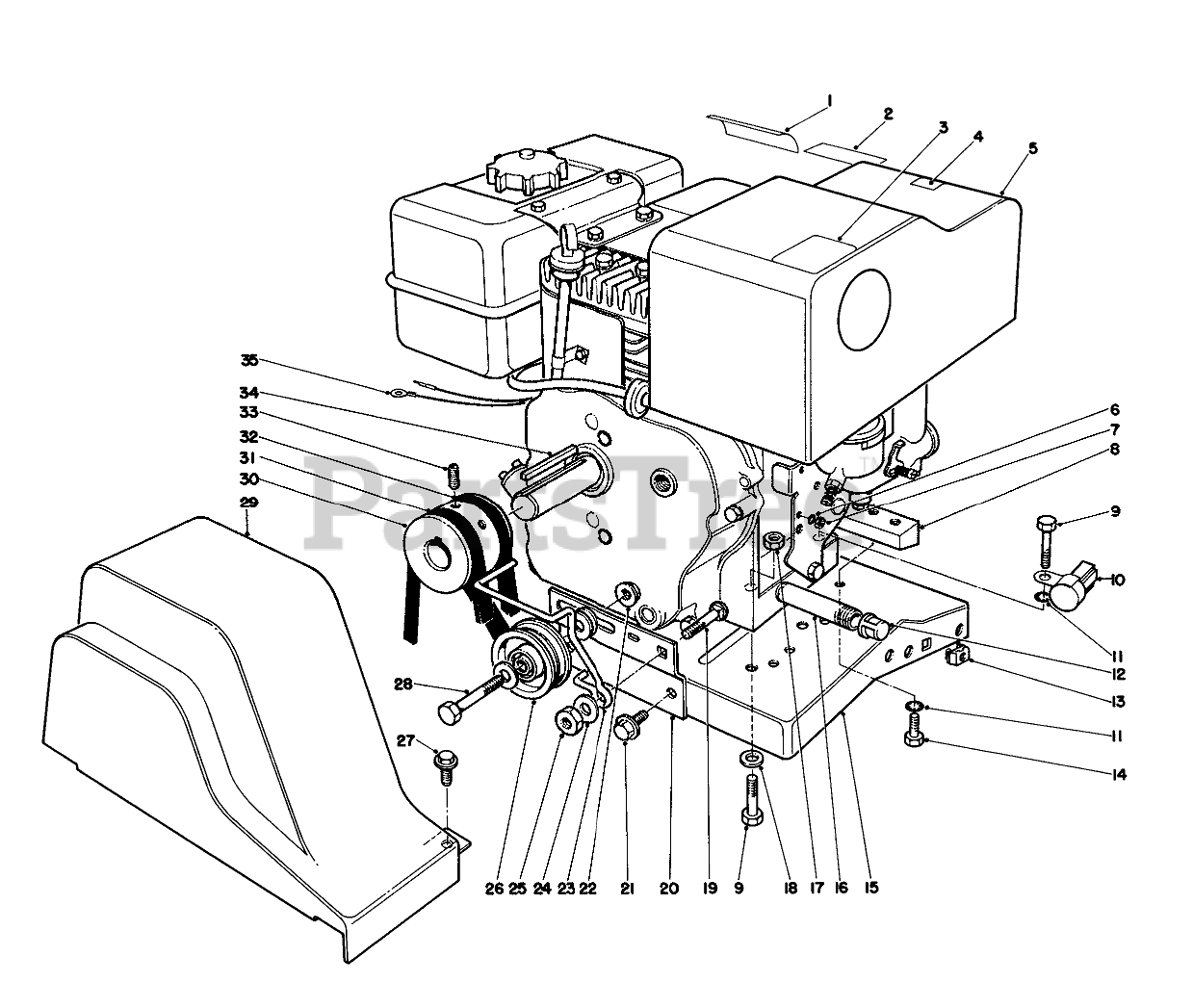

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-7200

HAZARDS CAUTION DECAL
(Superseded to 54-9750)

$

$

Not available

2

Toro 42-1750

Decal-Syncro Balance

$

$

Not available

3

Toro 39-7100

Decal
(Superseded to 53-7680)

$

$

Not available

4

Toro 39-7110

Decal-Primer

$

$

Not available

5

Toro 56-2641

Engine

$

$

Currently unavailable

6

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

7

Toro 3296-54

NUT-LOCK

$5.49

$

In Stock, only 2 left!

0

8

Toro 22-8960

Block Engine Mounting

$

$

Not available

9

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 41-8610

INTERLOCK MODULE

$

$

Not available

11

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

12

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

13

Toro 3290-433

RETAINER NUT

$

$

Not available

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

Toro 43-7510

Engine Base

$

$

Not available

16

Toro 289-20

NIPPLE-PIPE

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

20

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

21

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 41-8590

BELT GUIDE

$

$

Not available

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

26

Toro 244-63

PULLEY B

$

$

Not available

27

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 17-6550

BELT GUARD

$

$

Not available

30

Toro 21-4100

ENGINE PULLEY

$

$

Not available

31

Toro 26-9670

V-BELT

$28.99

$

In Stock, only 2 left!

0

32

Toro 17-6540

V-BELT

$29.99

$

In Stock, only 4 left!

0

33

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

34

$

$

Not available

35

$

$

Not available
