38095 (1132) - Toro 32" Snow Thrower (SN: 004000001 - 004999999) (1984) ENGINE BRIGGS & STRATTON MODEL NO. 252416-0677-01 Parts Diagram

32" Snow Thrower

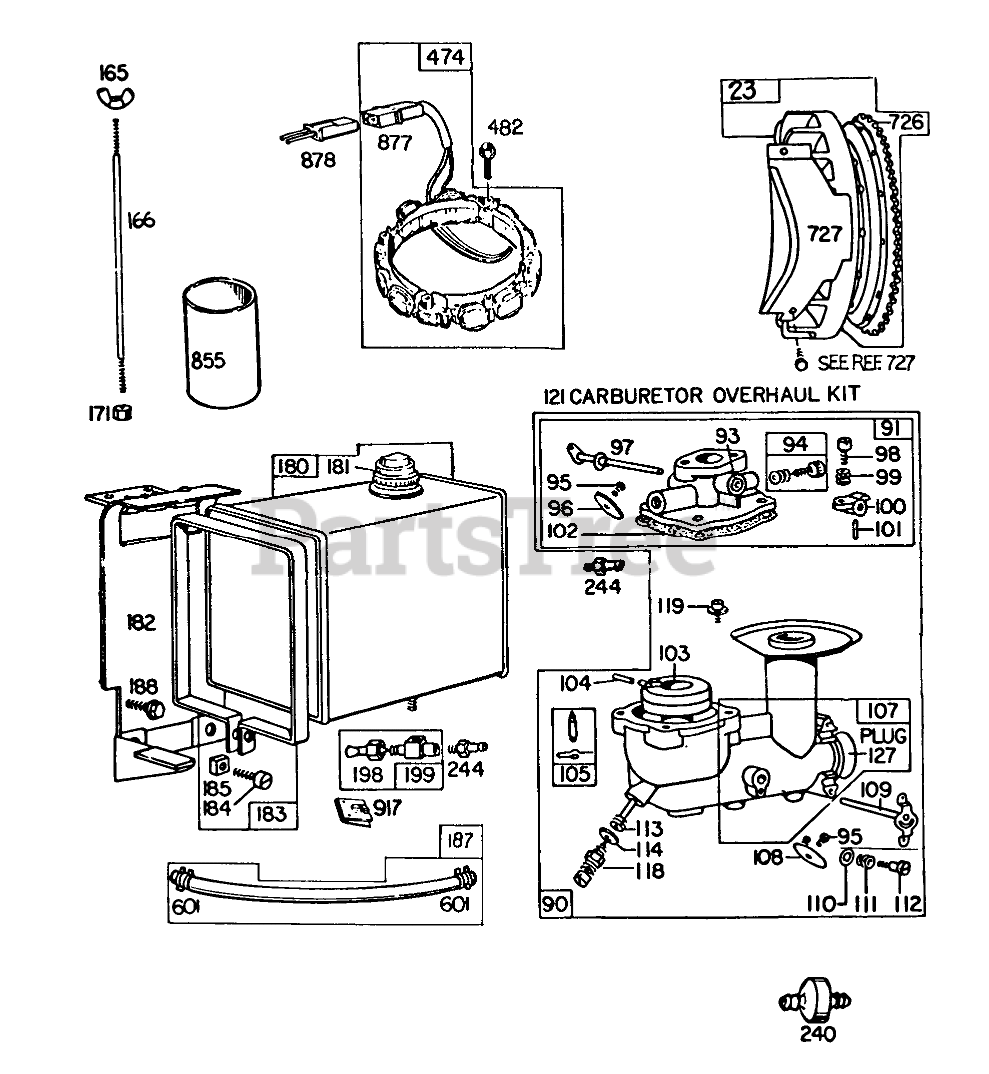

ENGINE BRIGGS & STRATTON MODEL NO. 252416-0677-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$

$

Not available

90

Briggs & Stratton 391992

Carburator Assembly

$205.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 391833

Upper Carburetor Body

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 391596

Shaft/Lever-Throttle

$41.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Gasket Set-part No. 391834.

$5.49

$

In Stock, Qty 5

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$5.49

$

In Stock, Qty 5

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 7

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet

$7.99

$

In Stock, only 3 left!

0

107

Briggs & Stratton 391829

Body Assy-Lower Carb.

$109.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 391836

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391884

Shaft/Lever-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Choke Lever
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 394730

Nozle-Carburetor
(Superseded to 691966)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$21.99

$

In Stock, only 3 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 394989

Carburetor Overhaul Kit

$

$

Not available

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Carburetor Overhaul Kit-See Ref. 121, page 16.

$

$

Not available

165

Briggs & Stratton 93453

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 231007

Stud Air Cleaner
(Superseded to 691241)

$

$

Not available

171

Briggs & Stratton 92129

Nut
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 290816

Tank Assy.,Fuel

$

$

Not available

181

Briggs & Stratton 297866

Cap-Fuel Tank
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 222333

Bracket-Fuel Tank

$14.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291367

Strap Assy, Fuel Tank

$60.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw-Machine Fil. Hd.
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Fuel-Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet-Fuel Tank
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

726

Briggs & Stratton 392134

Gear-Flywheel Ring (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 221940

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

855

Briggs & Stratton 231145

Stack-Carburetor

$7.49

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days
