38095 (1132) - Toro 32" Snow Thrower (SN: 003000001 - 003999999) (1983) SNOW CAB ASSEMBLY MODEL 42-3380 Parts Diagram

32" Snow Thrower

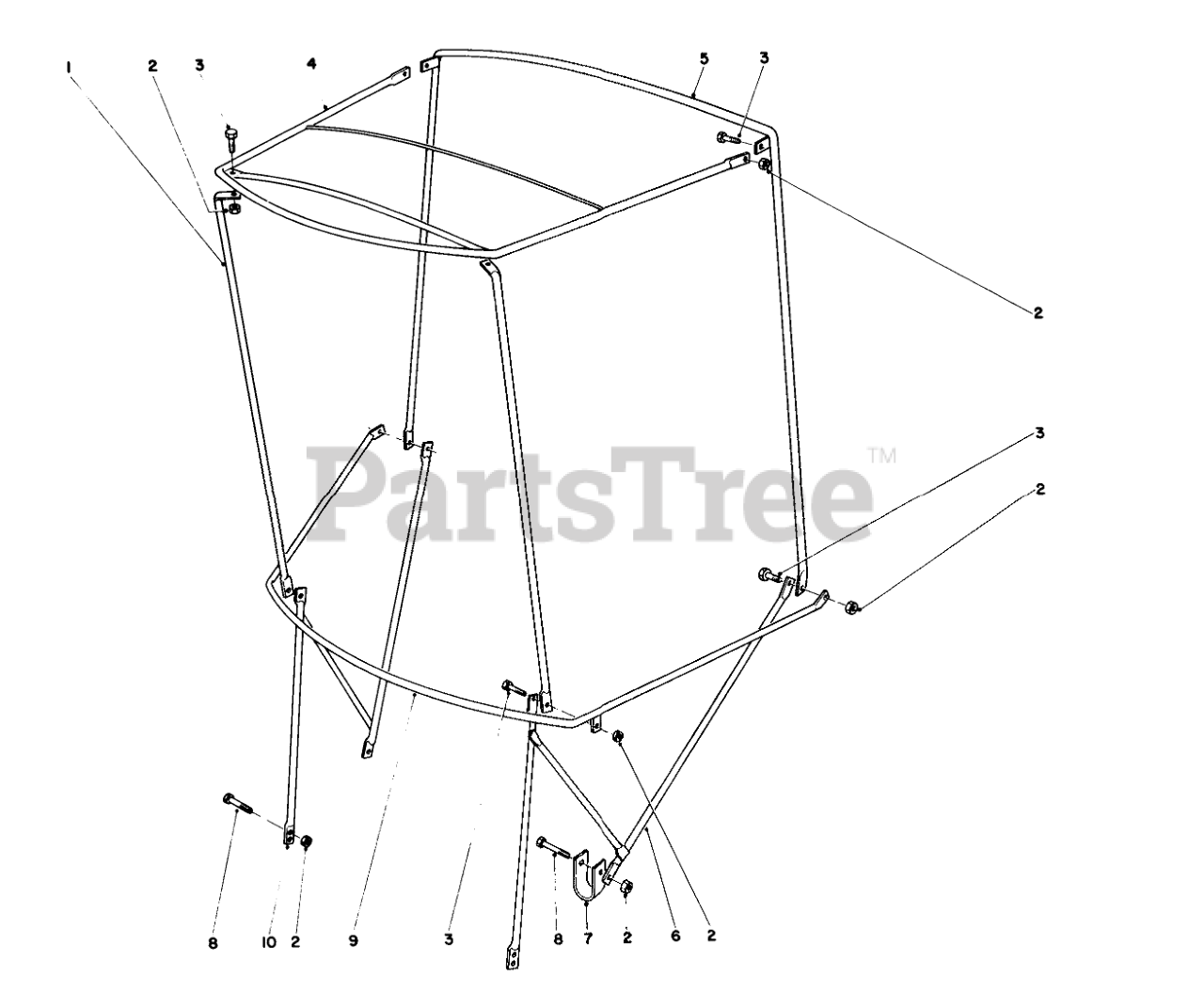

SNOW CAB ASSEMBLY MODEL 42-3380 Parts Diagram

  • Title
1

$

$

Not available

2

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 12-8010

FRAME-TOP

$

$

Not available

5

Toro 12-8030

BOW-VERTICAL, REAR

$

$

Not available

6

Toro 42-4060

ATTACHING BRKT L

$

$

Not available

7

Toro 12-8050

U CLAMP

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 12-8020

BOW-CURVED

$

$

Not available

10

Toro 42-4050

ATTACHING BRKT R

$

$

Not available

Toro 42-4070

Vinyl Cover
(Superseded to 42-3380)

Note: Not illustrated

$587.99

$

Usually ships in 3-6 days

0
