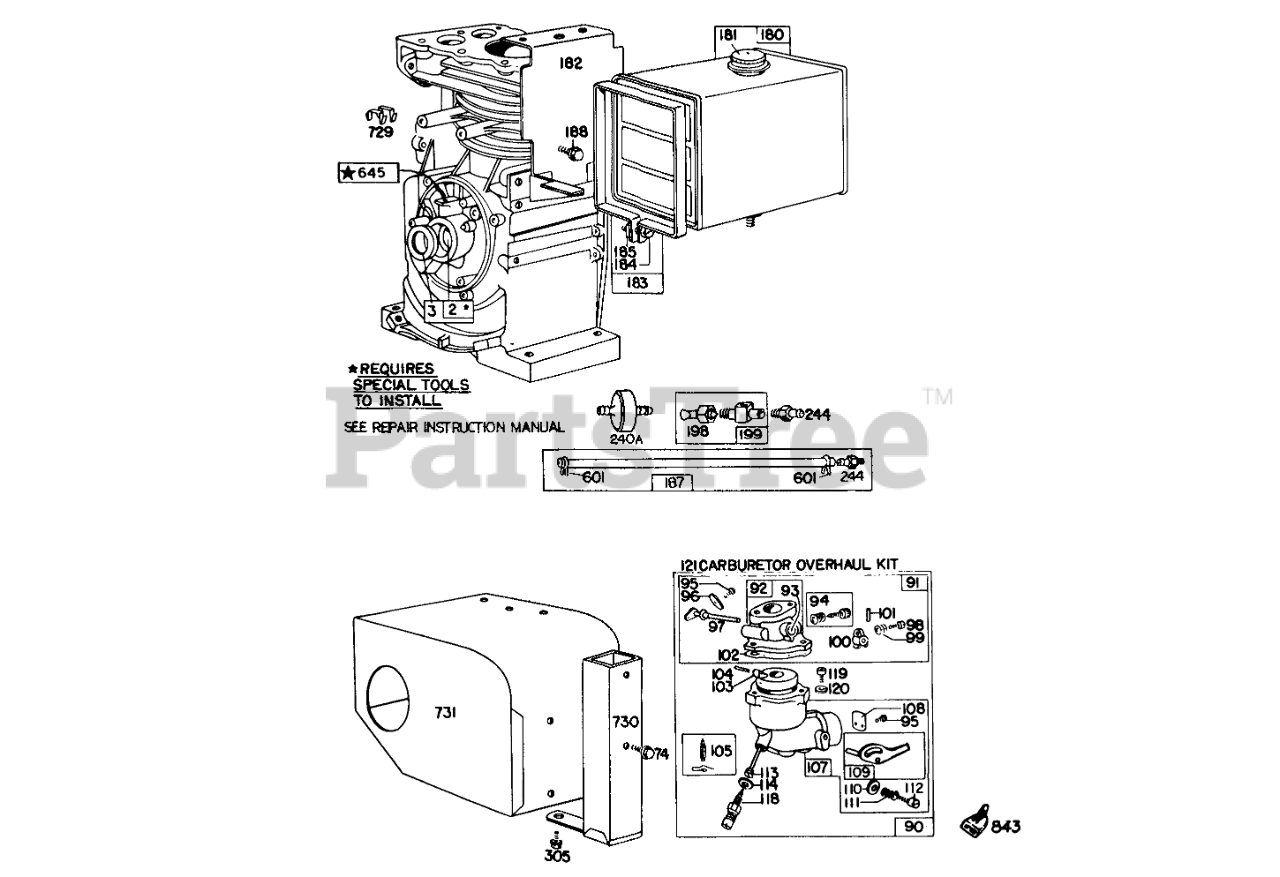

38090 (1132) - Toro 32" Snow Thrower (SN: 009000001 - 009999999) (1979) ENGINE BRIGGS & STRATTON MODEL NO. 190402 TYPE 0989-01 (8 H.P. SNOWTHROWER MODEL 38150) Parts Diagram

32" Snow Thrower

ENGINE BRIGGS & STRATTON MODEL NO. 190402 TYPE 0989-01 (8 H.P. SNOWTHROWER MODEL 38150) Parts Diagram

  • Title

2

Briggs & Stratton 295962

Bushing-Cylinder

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 391889

Carburetor Assembly

$262.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 390404

Body Assy., Upper Carburetor

$123.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 390503

Body-Upper Carb.
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included In Carburetor Kit

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Value-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Body

Note: Included In Carburetor Kit

$4.49

$

In Stock, Qty 14

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included In Carburetor Kit

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 391909

Body Assy.-Lower Carburetor

$49.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 62872

Value-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391888

Shaft Assy.-Choke

$12.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Choke Lever
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 390395

Nozzle-Carburetor

Note: Included In Carburetor Kit

$

$

Not available

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included In Carburetor Kit

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included In Carburetor Kit

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 90746

Screw-Machine. Fil.Hd.
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

120

Briggs & Stratton 92290

Washer-Lock
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 295938

Carburetor Overhau Kit

$31.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 290816

Tank Assy.,Fuel

$

$

Not available

181

Briggs & Stratton 297866

Cap-Fuel Tank
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 221935

Bracket-Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291367

Strap Assy, Fuel Tank

$60.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw-Machine Fil. Hd.
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 391498

Pipe-Fuel (Flexible) 17-7/16" long

$

$

Not available

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet-Fuel Tank
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240A

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0

730

Briggs & Stratton 299384

Stack-Air

$21.99

$

Usually ships in 2-12 days

0

731

Briggs & Stratton 299391

Hood-Snow
(Superseded to 492291)

$

$

Not available

843

Briggs & Stratton 280147

Knob-Choke Lever (For Sno-Gard Engines)

$7.49

$

In Stock, only 1 left!

0
