38090 (1132) - Toro 32" Snow Thrower (SN: 007000001 - 007999999) (1987) WHEEL ASSEMBLY Parts Diagram

32" Snow Thrower

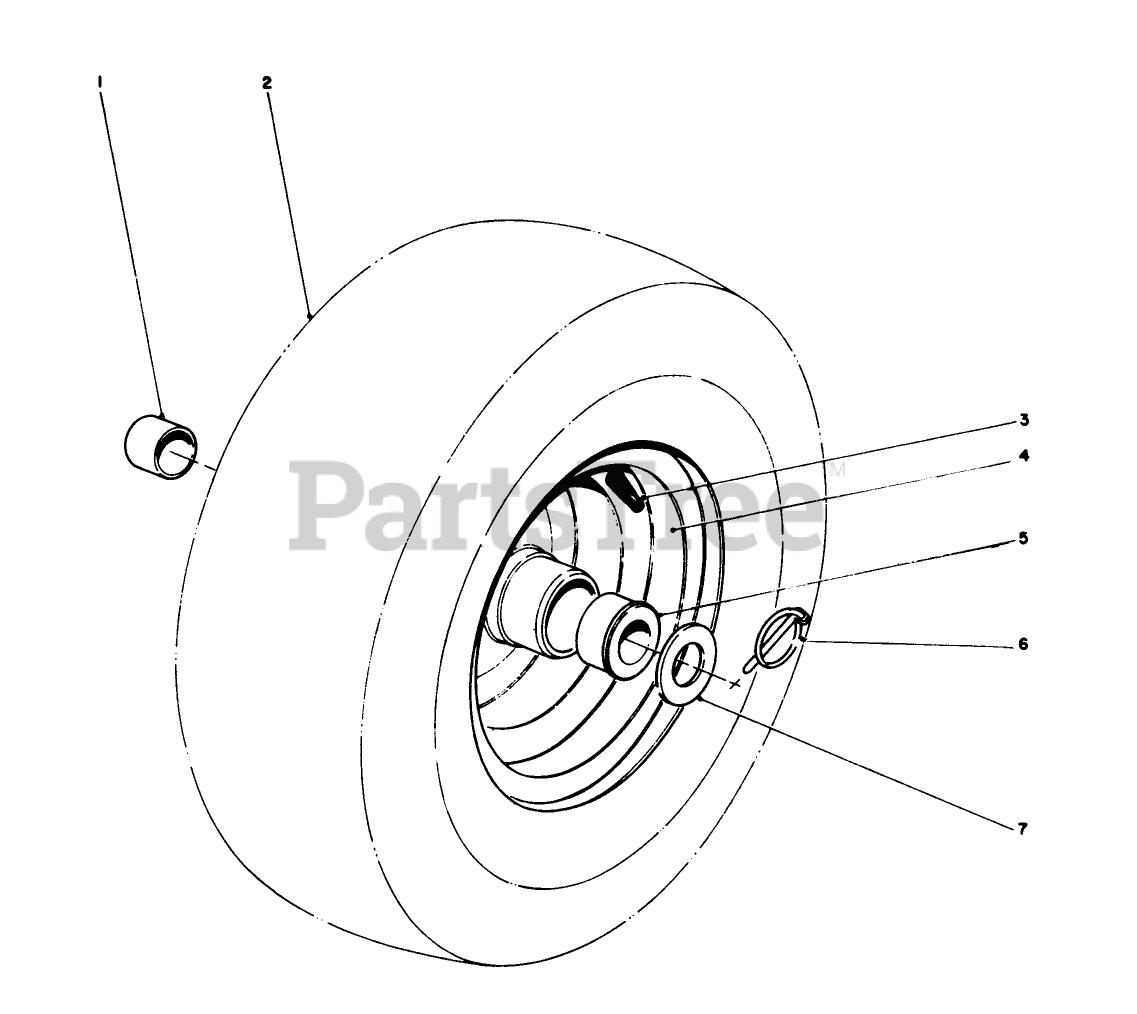

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 256-205

.877ID X .750LG BSHG

$

$

Not available

2

Toro 231-92

Tire
(Superseded to 231-3)

$55.99

$

Usually ships in 3-6 days

0

3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

4

Toro 26-9880

Wheel & Hub Assembly (Incl. Ref. #1 & 5)

$

$

Not available

5

Toro 256-117

BUSHING

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

Usually ships in 3-6 days

0

7

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

Toro 23-2340

1032 TIRE CHAIN KIT

Note: Not illustrated

$

$

Not available

Toro 232-3

4.00-8 TUBE

Note: Not illustrated

$

$

Currently unavailable

Toro 232-3

4.00-8 TUBE

Note: Service Replacement Part

$

$

Currently unavailable
